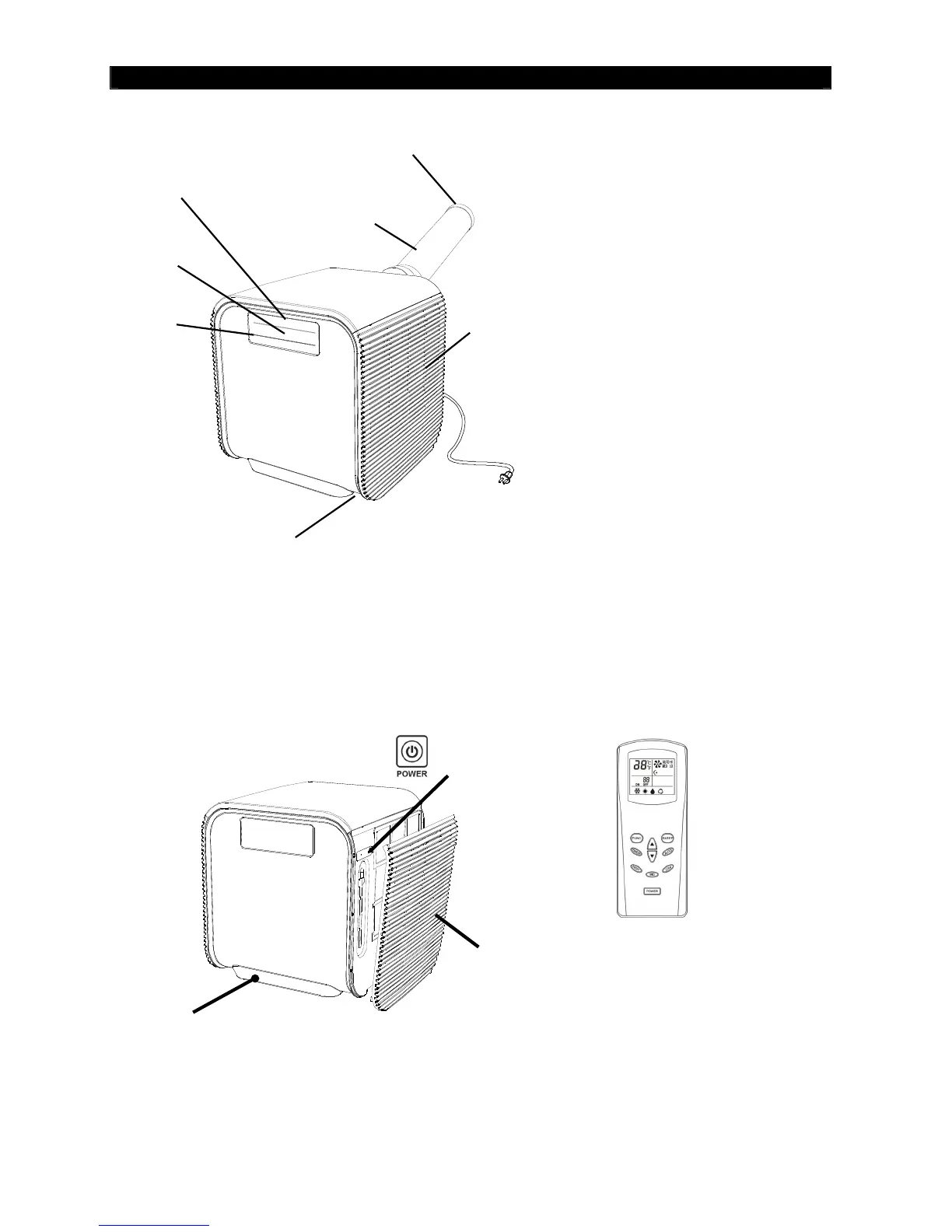

DESCRIPTION OF THE APPLIANCE
FRONT VIEW - SIDE FOR COOLING, DEHUMIDIFYING, FAN MODES
(12)
(11)
(8)
(4)
(3)
(6)
(5)
(13)
REAR VIEW –
(1)
(9)
(7)
Fix Led: Operation
Flash ON-OFF (1 sec. ON – 1 sec. OFF): Stand-By
Flash ON-OFF (1/6 sec. ON - 1/6 sec. OFF): Full Tank
1) CONTROL PANEL - FUNCTION BUTTONS
FOR OPERATION WITHOUT REMOTE
CONTROL
2)
3) TERMINAL CONNECTOR OF THE AIR
EXPULSION TUBE
4) AIR EXPULSION TUBE
5) REMOTE CONTROL RECEIVER
6) COOL AIR OUTLET (COMPLETE WITH AIR
LOUVERS )
7) 8) INLET GRILLES
9) CONDENSATE DRAIN HOLE
10) T AIR OUTLET
11) POWER CORD
12) CONCEALED WHEELS
13) BLUE OPERATING LED
14) TOUCH SCREEN REMOTE CONTROL
(14)
