19
V 12/16

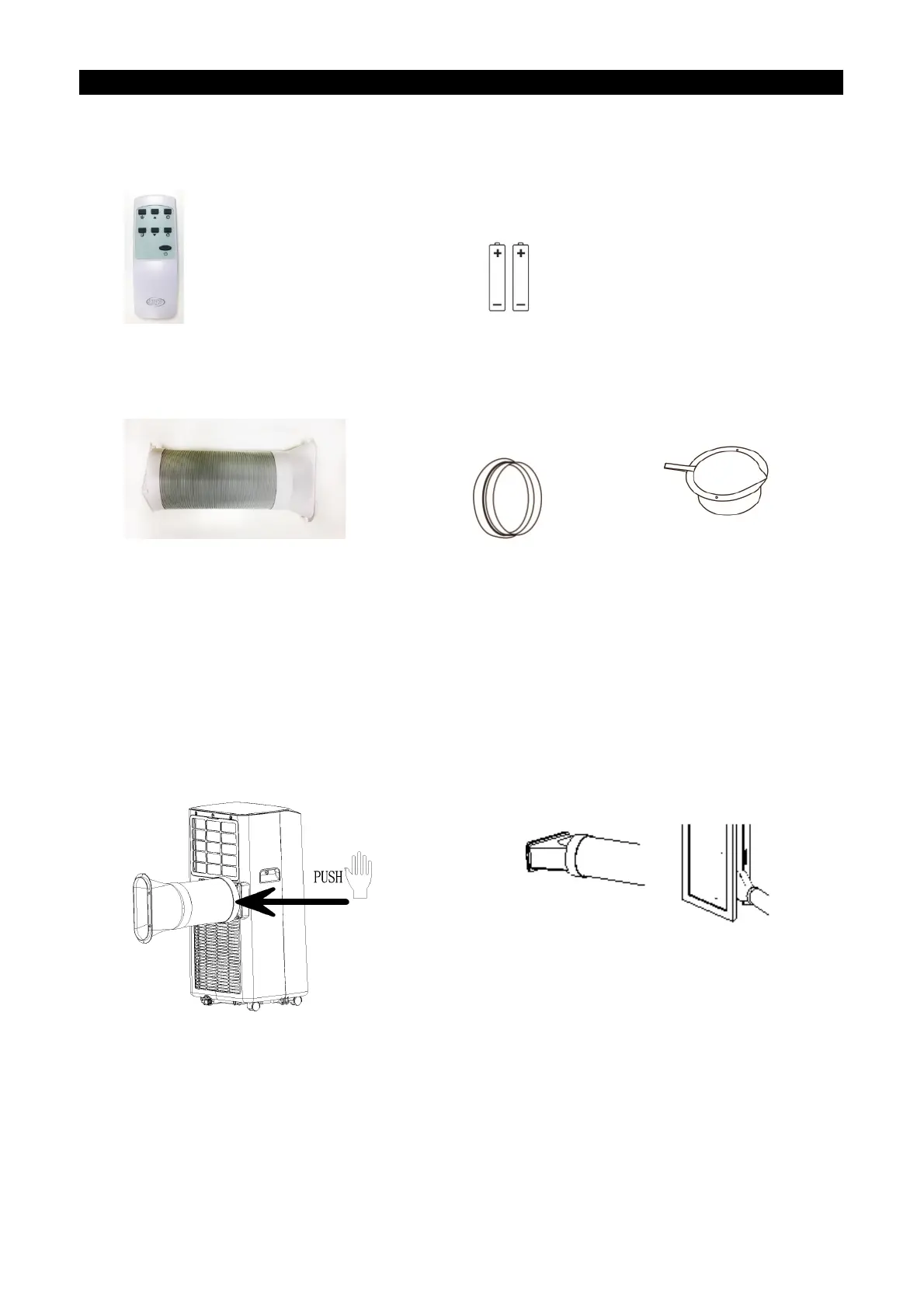

APPLIANCE START-UP
Open the packaging and pull out the box. Remove the product and the other elements supplied (illustrated in the box
below).
Infrared remote control
Type-AAA – LR03 – 1.5 V
batteries for remote control.
Flexible pipe inclusive of fitting for unit and end
fitting for window (2).
Round fitting for window unit, to
be positioned between the end
of the tube and the window unit
itself (3)(accessory managed
separately).
Window unit kit with plug.
(accessory managed separately).
Position the product vertically on a flat and stable surface, as close as possible to a window and at least 50 cm from
walls or other nearby obstacles.
USE WITH END FITTING FOR WINDOW
1. Stretch the flexible hose sufficiently so that it
reaches the outside (max 1.5 m) and hook it to the rear
part of the air conditioner.
2. Open the window and lock one of the two leaves
with the handle.
Rest the terminal connection on the fixed leaf,bring
the other leaf of the window close.
4. Open the window and lock one of the two leaves
with the handle.
Rest the terminal connection on the fixed leaf,bring the
other leaf of the window close.
