Bottom Bracket Section

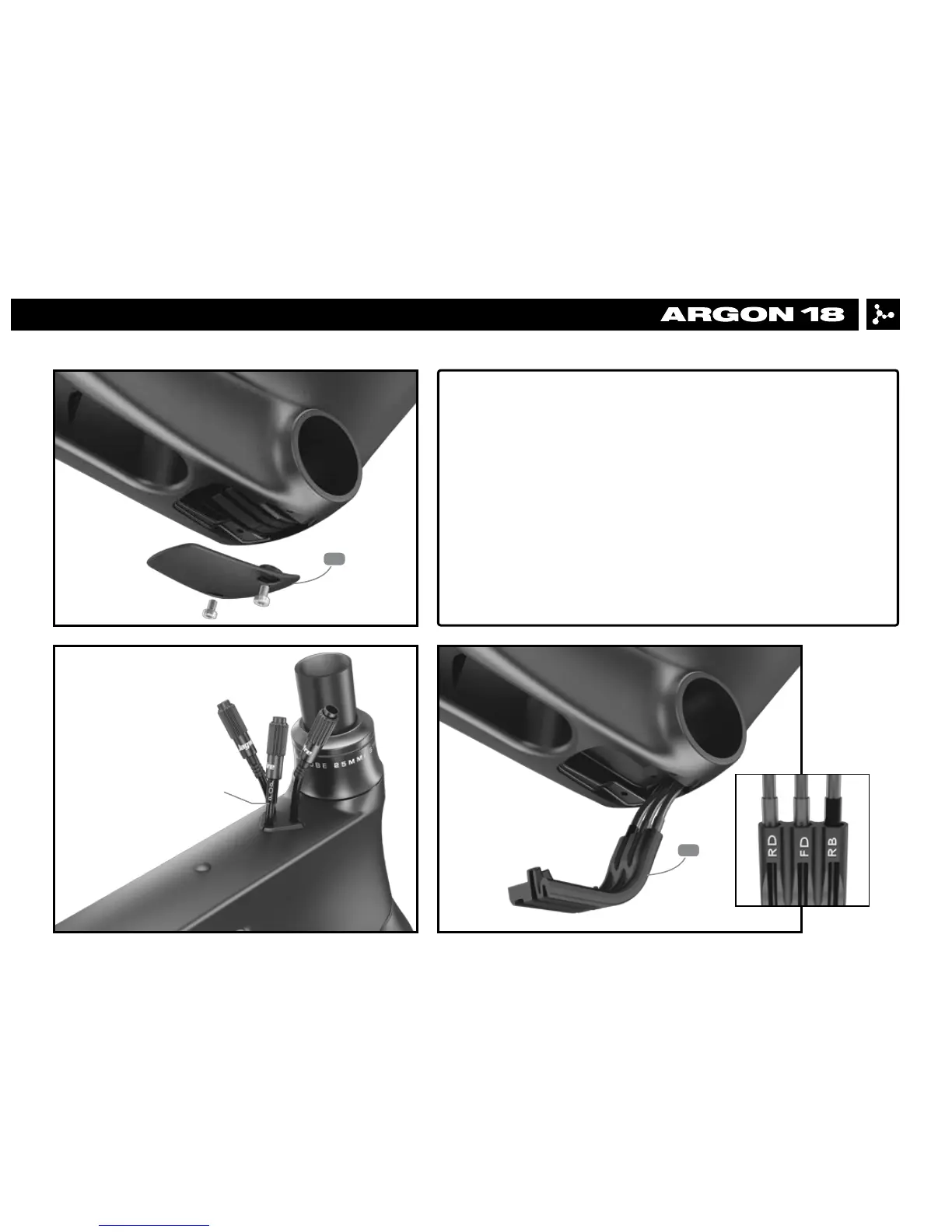

1. Measure approximately 660mm length (for a medium-sized frame) of one unit
of KEB brake housing (non compression housing) and two units of LEX 4mm gear
housing (mechanical).
2. Install plastic caps at each tip of the gears’ housings.
3. Install classic metal cap on the bottom bracket guide’s section of the brake’s
housing and the supplied POP metal cap on the front tip of the brake’s housing
in order to connect with the barrel.
4. Remove the cable guide (1.7) under the bottom bracket.
5. Connect the 3 housing length to the bottom bracket’s guide according to in-
scriptions (RD: Rear Derailleur, FD: Front Derailleur, RB: Rear Brake).
E-117 TRI+: 9. Cable Housing Installation
1.7
1.8
POP metal cap
