E-117 TRI+: 4. Seat Post Clamp Installation

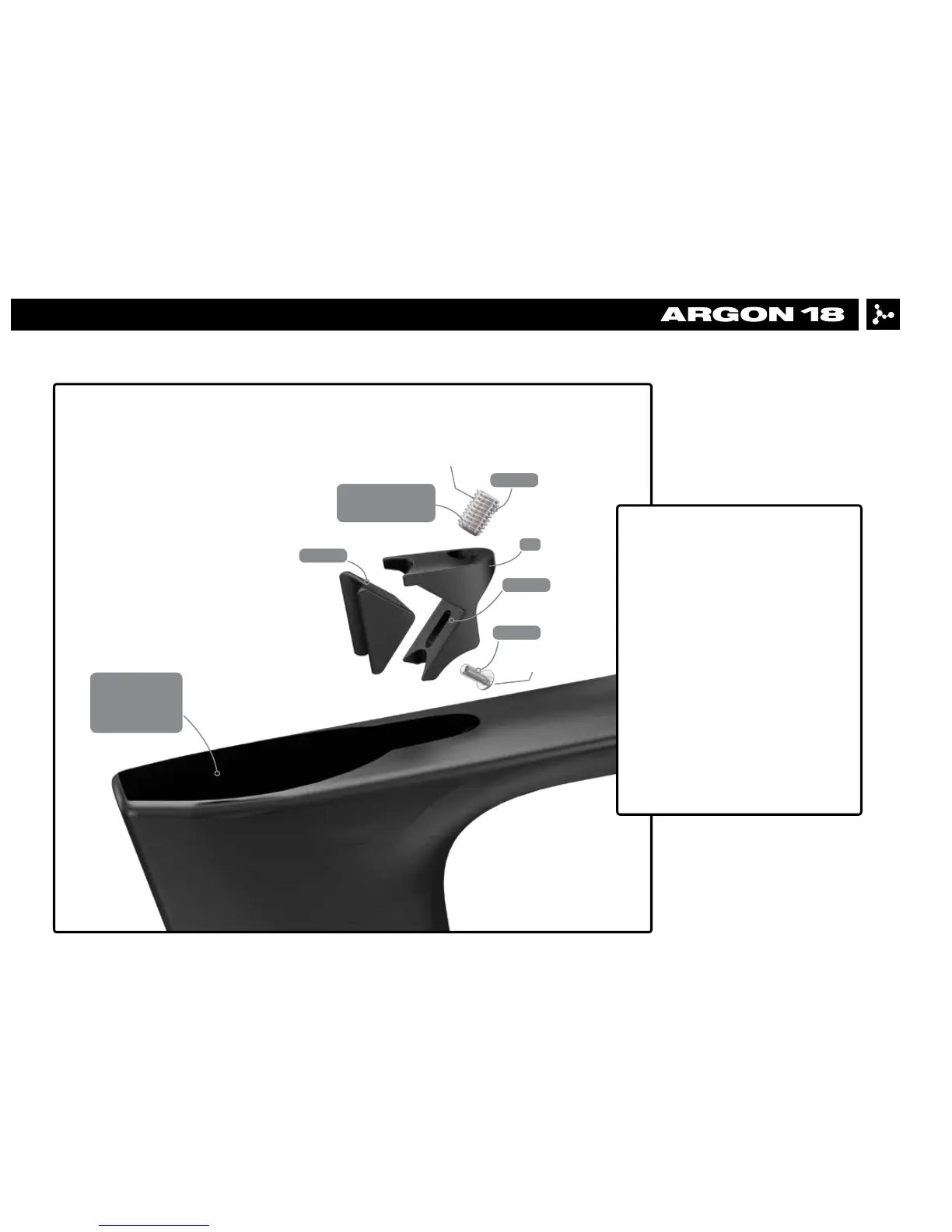

1. Place the seat clamp wedge inside
the frame.
2. Insert the seatpost (3.1) on which
some carbon ber assembly paste has
been applied.
3. Position the seatpost to the desired
height.
4. Apply a drop of blue Threadlocker
(n. 242) on the bolt’s thread
5. Tighten the set screw at max. 5.5Nm
while leaving a space between the two
parts allowing them to slide.
IMPORTANT: The E-117 Tri+’s seat
clamp is not the same as the Nitrogen
GREASE
GREASE
THREADLOCKER
BLUE (n. 242)
LOCTITE
GREASE
CARBON FIBER
ASSEMBLY
COMPOSITE
5.5 Nm
1Nm
1.4
