E-117 TRI+: 13. Saddle Adjustment

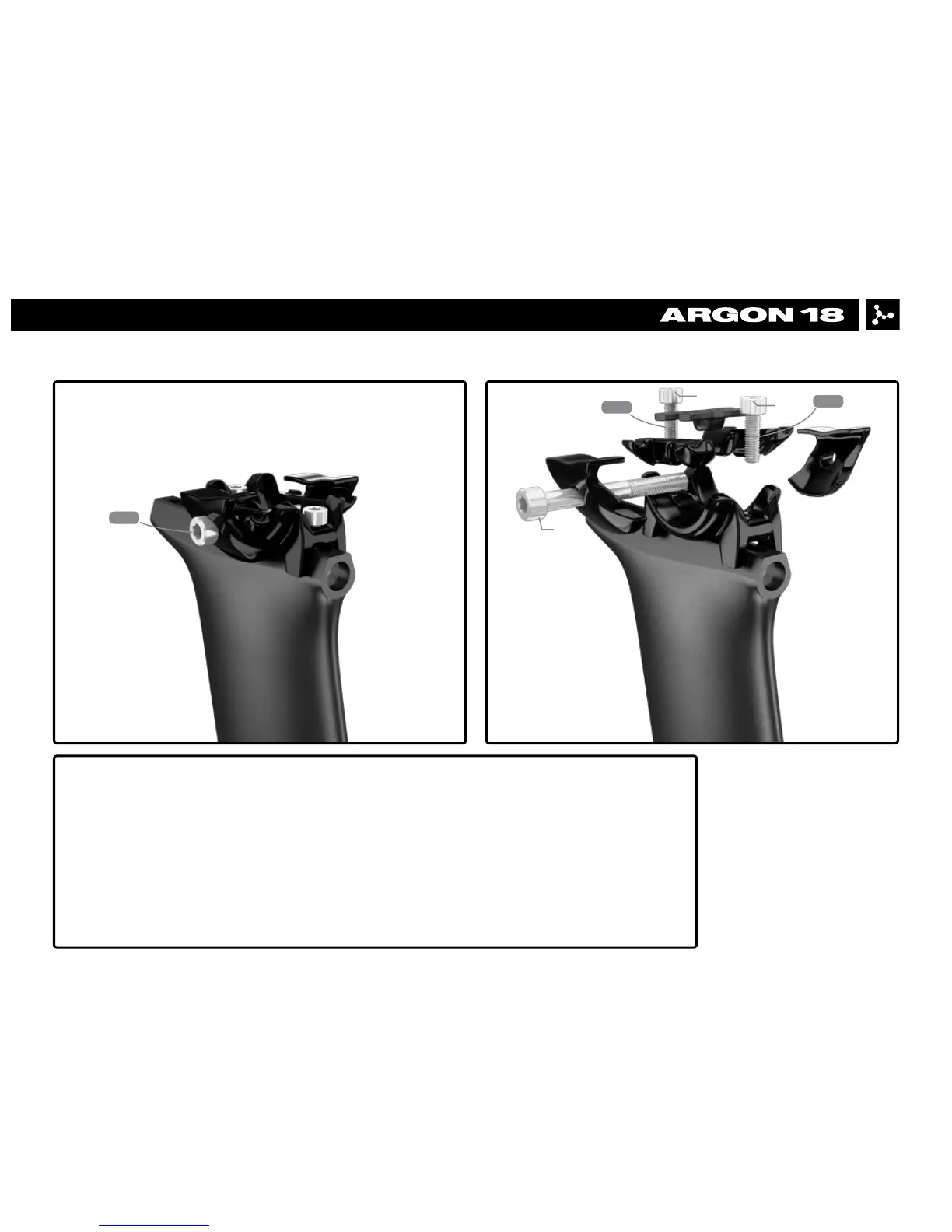

For horiziontal adjustement:
1. Loosen 5mm bolts.
2. Unscrew main bolt.
3. Install saddle rails into the rocker in the middle position.
4. Find desired setback.
5. Tighten the 5mm bolt up at 6Nm.
6. Adjust seat horizontally.
7. Tighten the 6mm bolt up at 12Nm.
If you are unable to nd the desired setback, push the saddle up to the distance recommended by the manufacturer.
6mm
5mm
5mm
12Nm
6Nm
6Nm
