E-117 TRI+: 12. Rear Brake Installation
outer
side

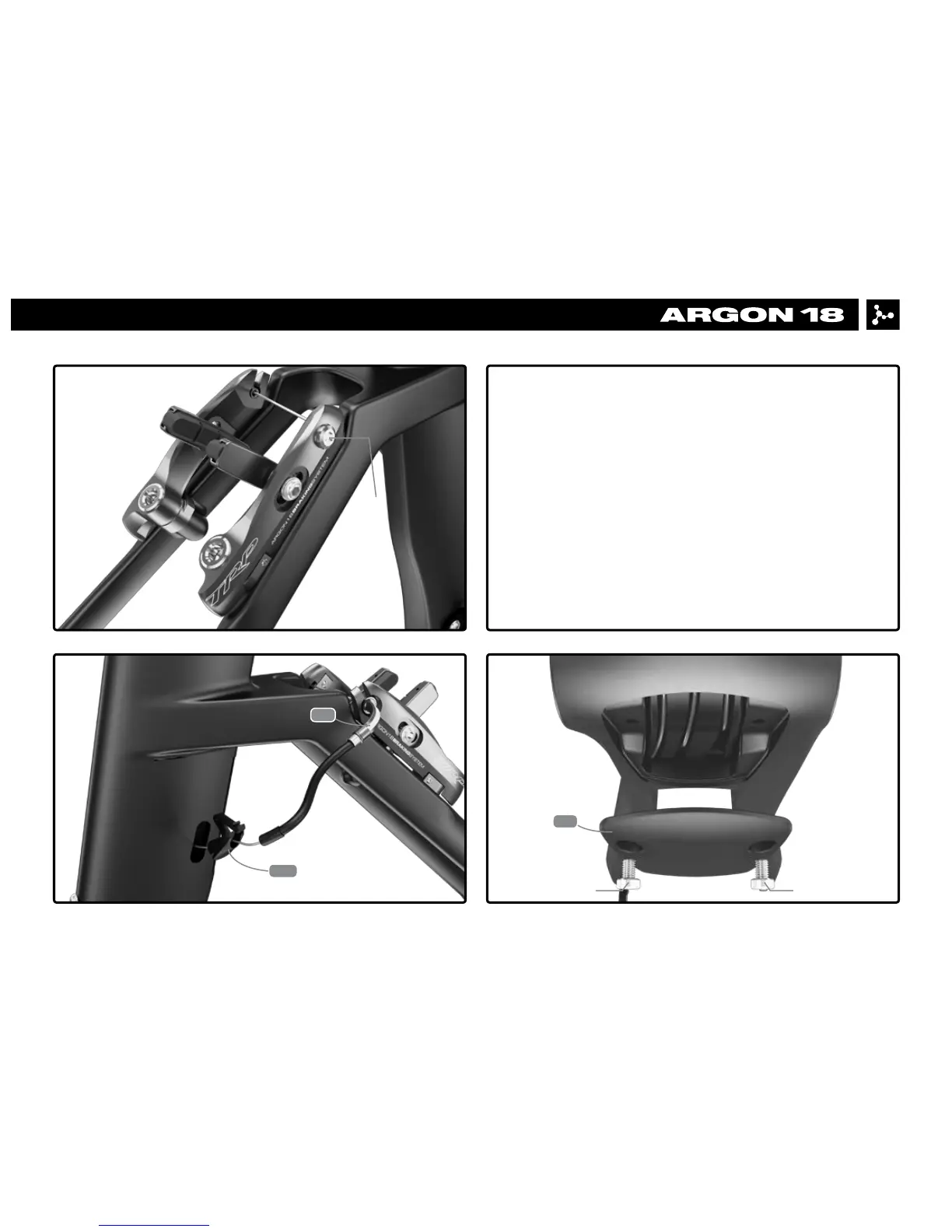

1. Take the cable stopper out of the seat tube.
2. From the bottom bracket guide, route the cable up and out of the
outlet.
3. Put the cable stopper back on and insert housing (suggested length
130mm for medium-sized frame) with a metal cap. Slide it in the cable
guide (6.10).
4. Slide the break cable in the brake’s retainer nut and x it to the
caliper at 6Nm.
5. Install plastic cap (1.8) over the bottom bracket, tighten the 2 screws
at 2.5Nm.
6Nm
1.15
6.10
2.5Nm
2.5Nm
1.8
