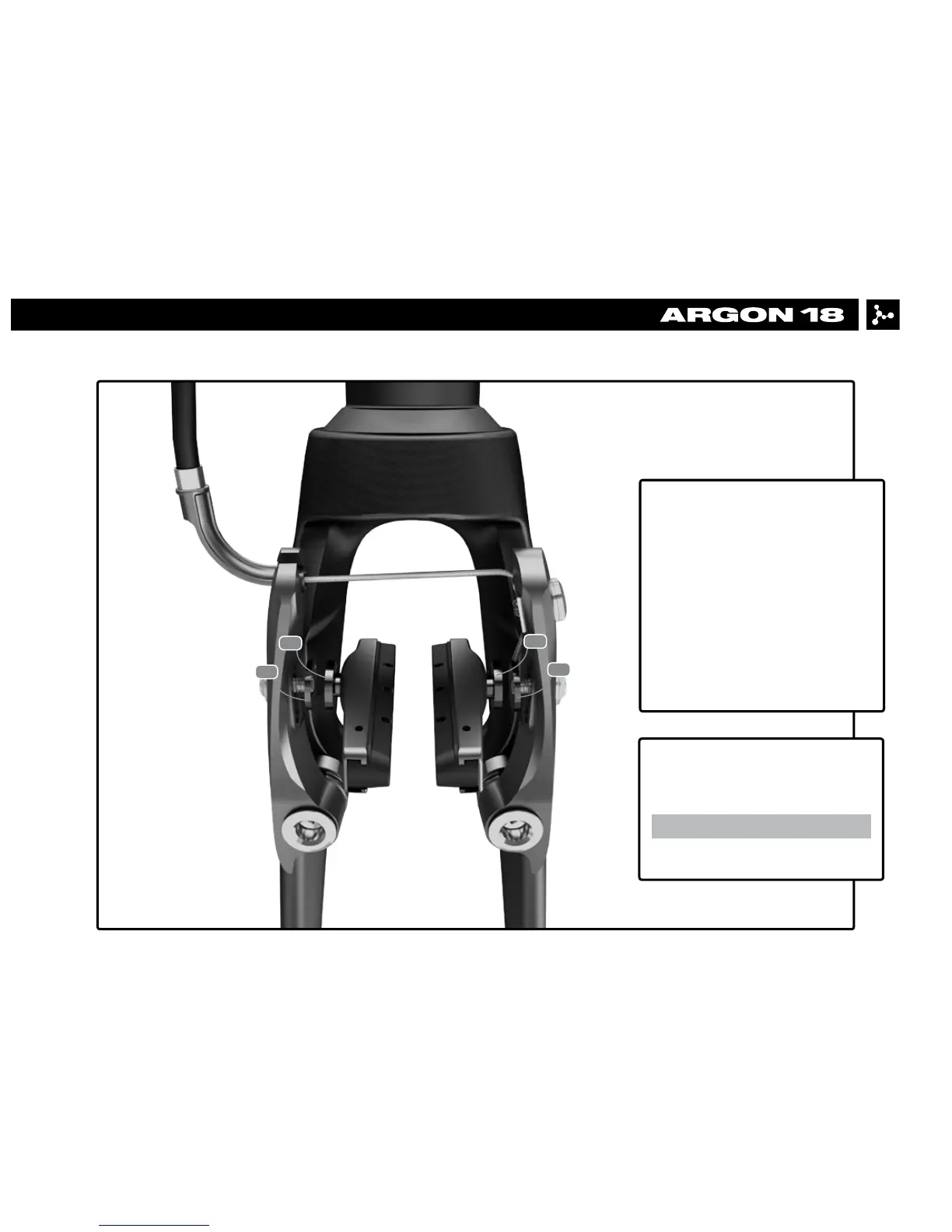

E-117 TRI+: 11. Front Brake Installation
IMPORTANT: Depending on brake pad
spacing or rim width, the brake arm may
rub on the frame down tube. Make sure
the pad spacing is appropriately adjusted.
Adjust brake pads according to the
width of your rims:
You can congure the brake pad
spacers with 1mm (17h), or 2mm (17i)
depending of the rim width you are
using.
Spacers required according
to the rim width
Rim width Spacer combinaison
19mm 2mm spacer
(e.g.: Shimano C50)
24mm + 1mm spacer
(e.g.: 808 clincher/Enve) (thin pad may be required)
To Next Page
