KRYPTON : 5. Saddle adjustment
13

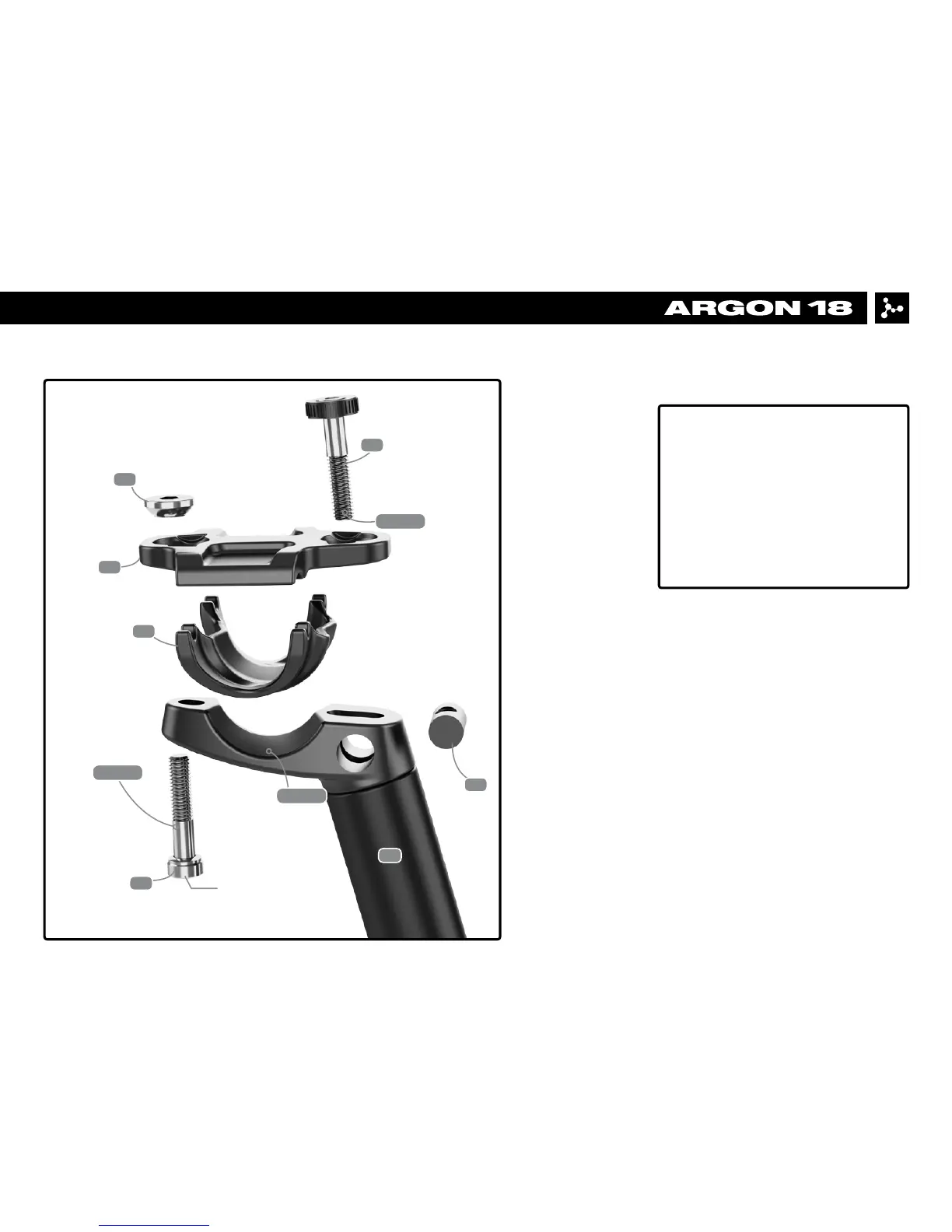

9.1 Install the saddle on the rocker (3f)
and tighten the rail clamp (3g) using
the screw (3d)
9.2 Adjust the angle, the oset of the
saddle and tighten the bolt (3b).
9.3 The rocker and the rail clamp (3f-
3g) can be ipped to change the saddle
oset.
GREASE
3a
3f
3d
3b
3e
GREASE
GREASE
3g
6Nm
3c
