OPERATING INSTRUCTIONS
NOTE: Before using the tool, read the
instruction book carefully.
INTENDED USE
The machine is intended for driving in and
loosening screws as well as for drilling in wood,
metal and plastic.
BEFORE PUTTING INTO OPERATION
NOTE:
a) Do not use any charger other than that
specically provided for use with the
equipment.
b) If the battery pack is very hot you must remove
your battery pack from the charger
and allow time for the battery to cool down before
recharging.
c) The battery in your new tool is not charged
when it leaves the plant. Therefore it
must be full charged before using the rst time.
d) Please charge the battery to reach full or no
less than half charge before storage. If the tool
will not be used for long periods of time, charge
the battery every 3-6 months.

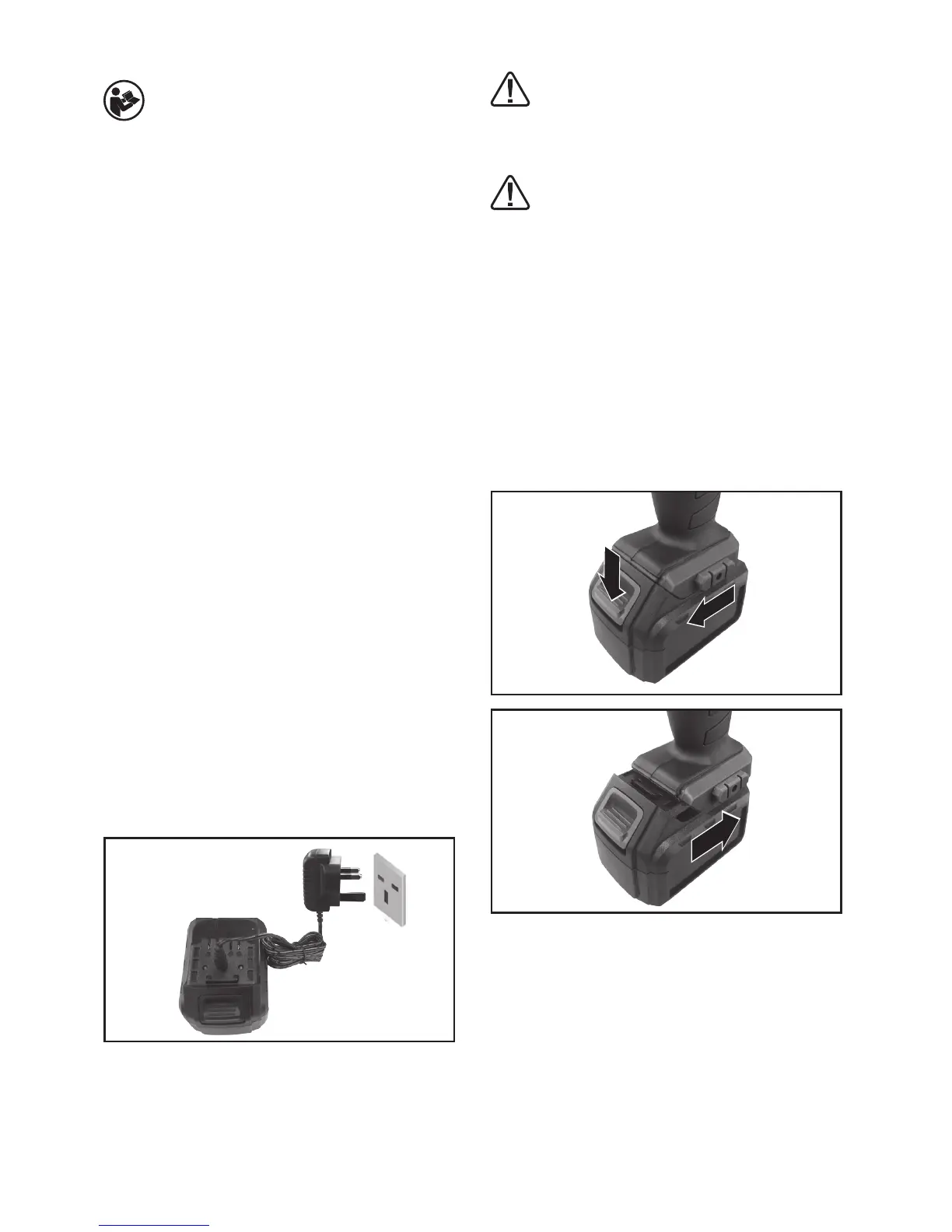

CHARGING PROCEDURE (See Fig. A)
Plug charger plug into a suitable power outlet and
afterwards plug the DC plug into
socket of your battery, the charging indicator (red)
will illuminate at this time.
The charger indicator (red) will go out and the
charging indicator (green) will illuminate
when charging is complete, then unplug the
charging plug from the wall socket and then
remove the battery charger from the battery, the
battery is ready to use.
Fig.A
IMPORTANT: When battery charge runs out
after continuously use or exposure to direct
sunlight or heat, allow time for the tool to cool
down before re-charging to achieve the full
charge.
WARNING: When battery charge runs
out after continuous use or exposure
to direct sunlight or heat, allow time for the
battery to cool down before re-charging to
achieve the full charge.
WARNING: Only use the provided
charger for use with the equipment!
Do not use any charger! Otherwise the
machine will be damaged by the wrong
charger!
TO REMOVE THE BATTERY PACK (See Fig.
B1, B2)
Depress the battery pack release button (7) to
release and slide the battery pack out from your
tool. After recharge, slide it back into your tool. A
simple push and slight pressure will be sufcient.
NOTE: Please make sure every half year
recharger battery pack one time if the battery
pack stock long time.
Fig.B1
Fig.B2
OPERATION
1. ON / OFF SWITCH (See Fig. C)
Depress the On/Off switch (4) to start and release
it to stop your drill. The on/off switch is tted
with a brake function which stops your chuck
immediately when you quickly release the switch.
It is also a variable speed switch that delivers
higher speed and torque with increased trigger
