Assembly Instructions
Step 1
Step 1
Step 2
1
2
41
7
7
6
6
4
8

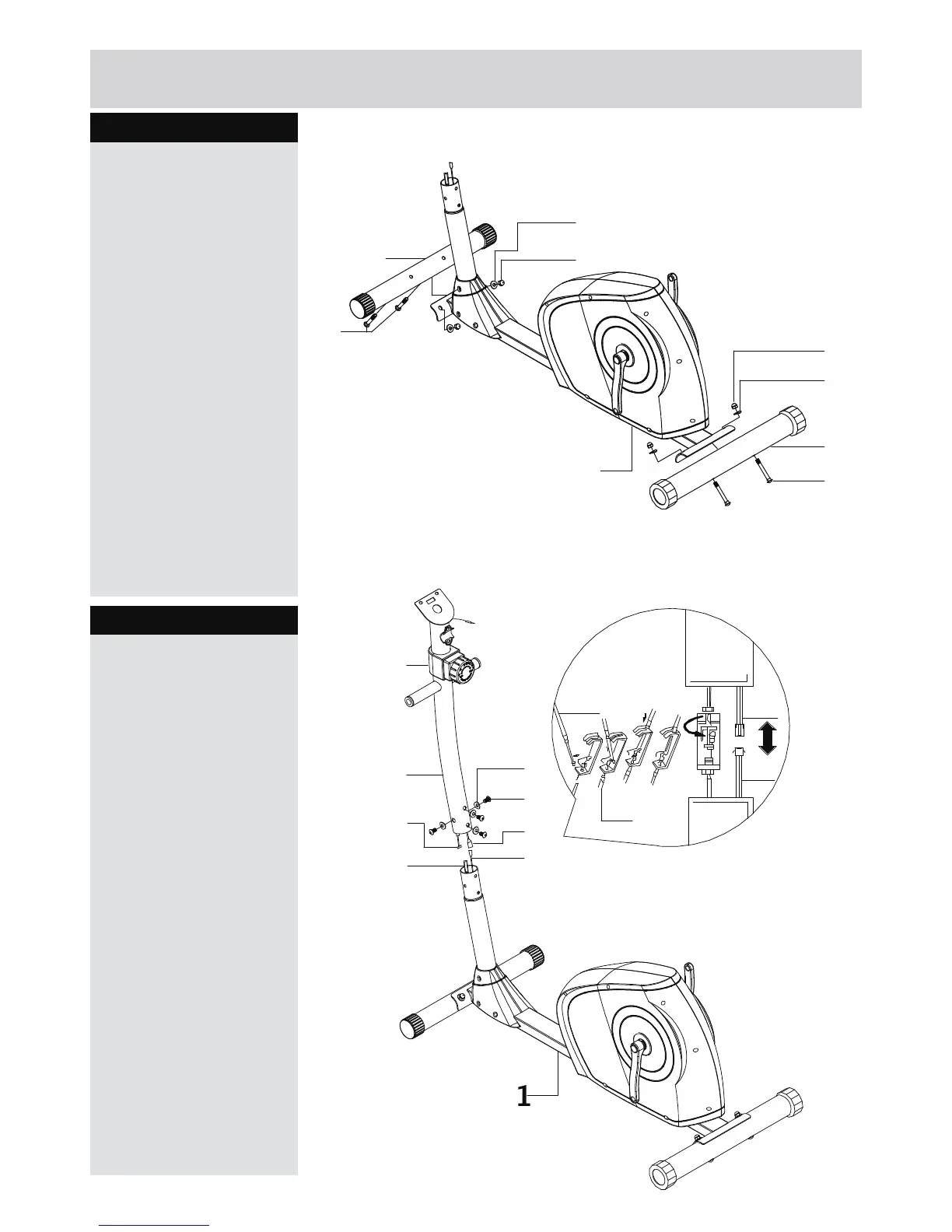

Attach the Front stabilizer
(pt.4) to the main frame
(pt.1) using 2 sets of M8
x 60 Bolt (pt.8), Ø8
Curved washer (pt.7) and
M8 Domed nut (pt.6).
Attach the Rear stabilizer
(pt.2) to the main frame
(pt.1) using 2 sets of M8
x 70 Bolt (pt.41), Ø8
Curved washer (pt.7) and
M8 Domed nut (pt.6).
Product mass=29kg.
Product footprint=124cm
x 61cm.
Take the Front post
(pt.37), connect the Lower
wire (pt.33) to the Upper
wire (pt.34).
Connect the Upper cable
(pt.36) to the Lower cable
(pt.35).
Attach the Front post
(pt.37) to the main frame
(pt.1) using 4 sets of Ø8
Curved Washer (pt.7) and
M8x15mm Carriage bolt
(pt.32).
