Argus 3 User Manual

 e2v technologies (uk) limited 2014 118707 P7030UM version 6, page 12
2. MENU CONTROL FUNCTIONS
Some of the Argus
®
4 features can be
adjusted and set up without the need to
connect the camera to a laptop/PC.
The setup menu is accessed by the
remote control or, optionally, via the
button menu.
The button menu is enabled via the
camera software supplied.

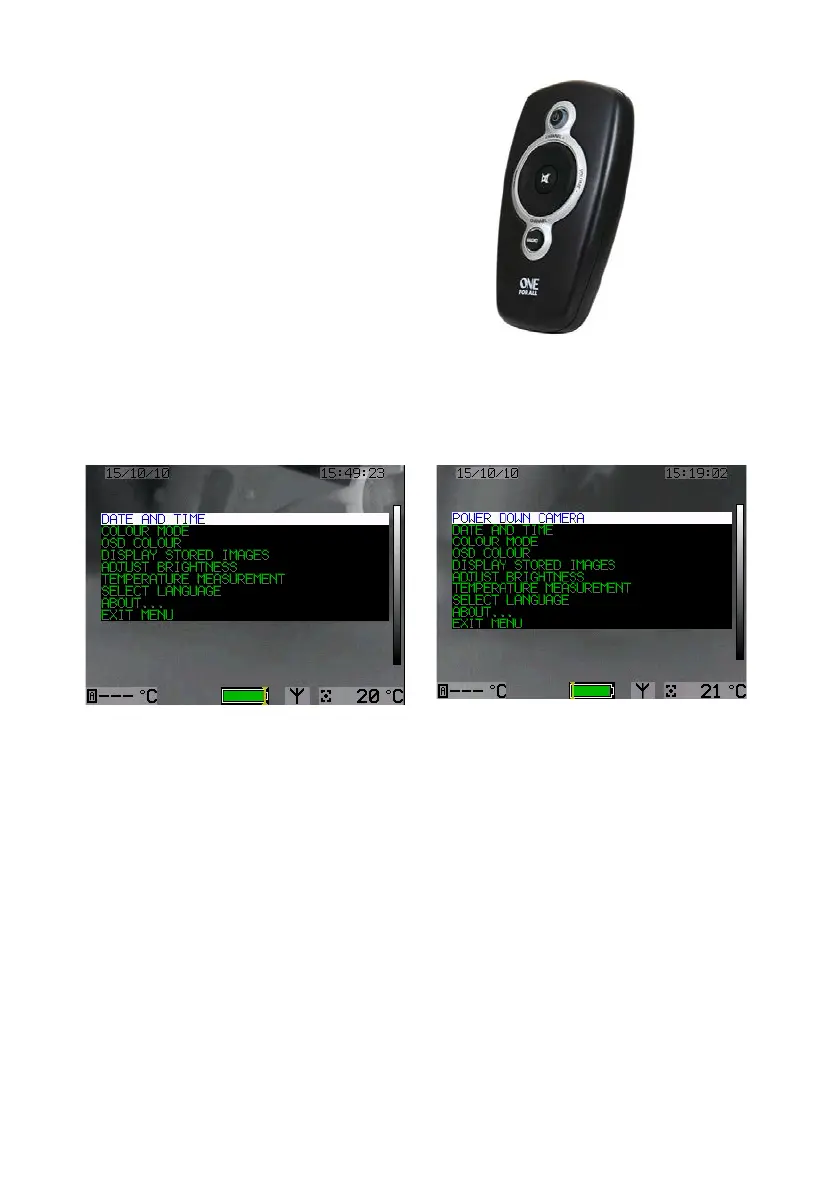

The exact design of remote control may
vary over time. The camera menu will
work with most standard Philips TV
remote controls.
To enter the menu using the remote control, press the on/off button on the remote.
To enter the menu using the camera buttons, press the centre on/off button on the
camera for 3 seconds.
IR remote menu
Button menu
To access any function, press the menu
▲ or menu ▼ buttons until the desired
option is displayed. Once the desired
option has been selected, each option
has further actions (see below).
Pressing the on/off button again will set
any changes required and exit the option
list.
Pressing the menu ▲ or menu ▼
buttons another option can be selected.
The menu will disappear from the image
after 8 seconds.
To access any function, press the left or
right grey buttons to scroll up and
down, until the desired option is
displayed. Once the desired option has
been selected press the centre button
to access further actions described
below. Pressing the centre button again
will perform or set the action and return
to the previous menu.
Scrolling down to the ‘EXIT MENU’
function and pressing the centre button
will exit the menu.

Argus 3 Specifications

General

Field of View	24° x 18°
Spectral Range	8 - 14 μm
Focus	Fixed
Operating Temperature	-15 °C to +50 °C
Storage Temperature	-40 °C to +70 °C
Power Supply	Rechargeable Li-ion battery
Interface	USB
