ARH FREEWAYCAM - SCHEMATIC FOR TRIGGERING; SERIAL CONNECTION SPECIFICATION

Page 10/18
FreewayCAM Install Guide

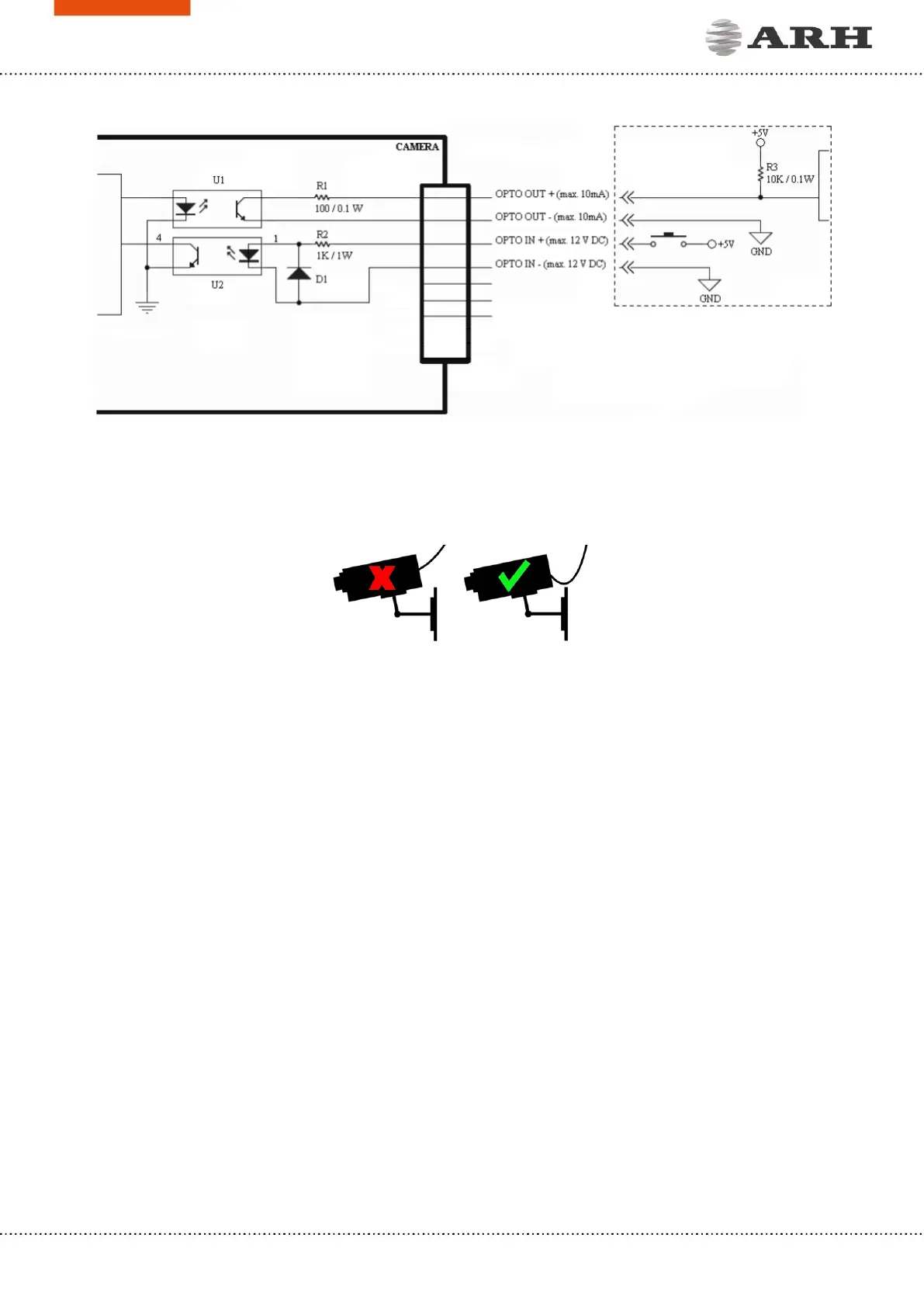

SCHEMATIC FOR TRIGGERING:
SERIAL CONNECTION SPECIFICATION:
The serial port of the camera complies with the RS 232 standard.
Route the cable according to the image
to avoid the collection of rainwater at the socket
EXTERNAL WIRING SCHEMATIC
