FreewayCAM Install Guide
ETHERNET SPECIFICATION: CAT5e crossover cable with an RJ45 plug.
Cable Layout
Core
Number
User I/O Cable
Power&Illuminator
Cable
1
Opto Out G (–)
**
AC
2
Serial RX
***
Illuminator Control 1
3
Serial TX
***
Illuminator Control 2
4
Opto In S (+)
*
Illuminator Control Out +
5
Opto In G (–)
*
Illuminator Control 3
6
Opto Out S (+)
**
AC
NA
Serial GND
***
Illuminator Control Out -
*
For trigger input
**
For trigger output
***
General-purpose serial port

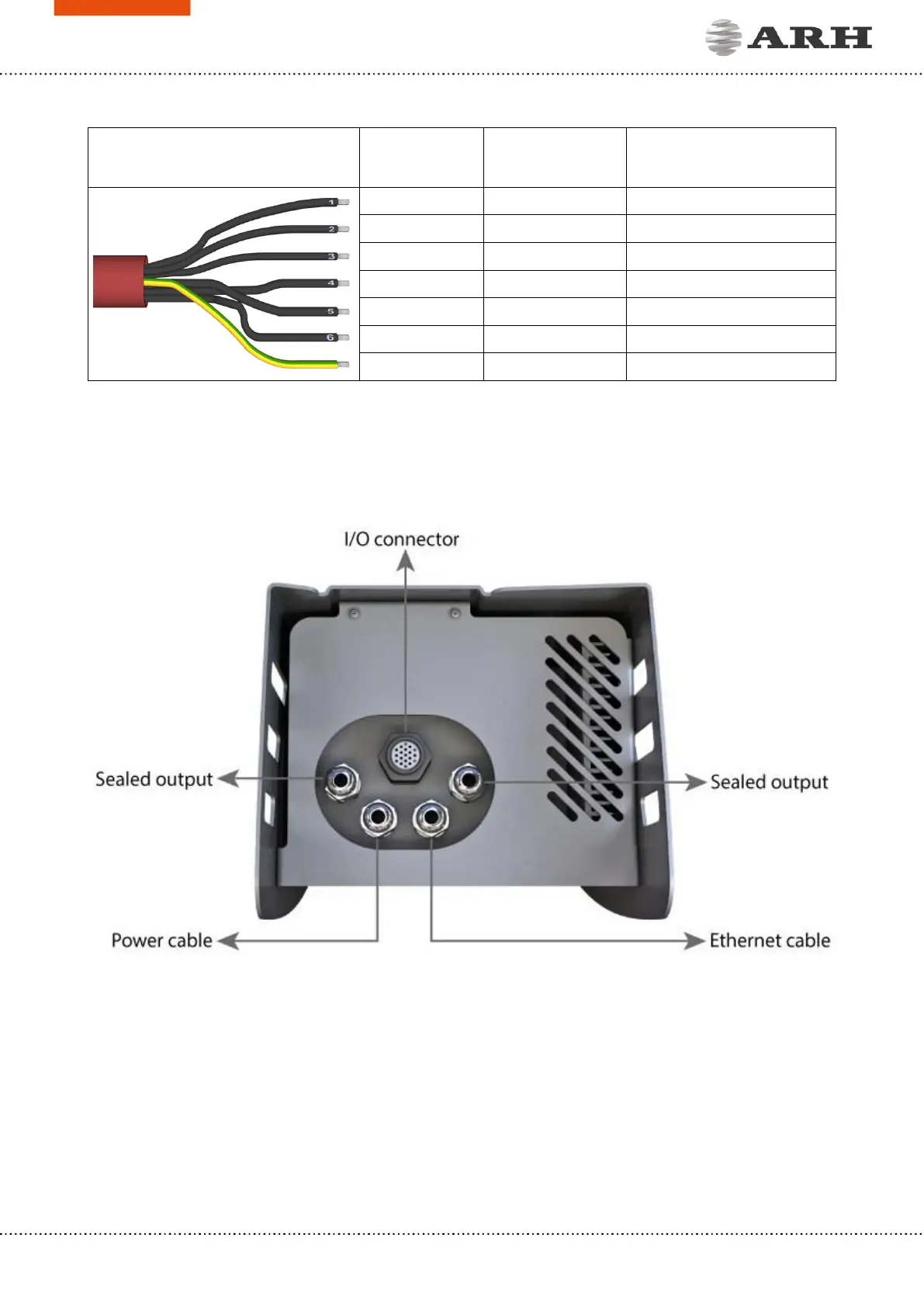

In case of FullHD cameras:
The lower two connectors of the back panel of the camera are for the power supply and Ethernet
connection. The additional two sealed outputs are designed for GPS and radar connections if
necessary.
ETHERNET SPECIFICATION: CAT5e crossover cable with an RJ45 plug.
