8.1 LIFT SYSTEM

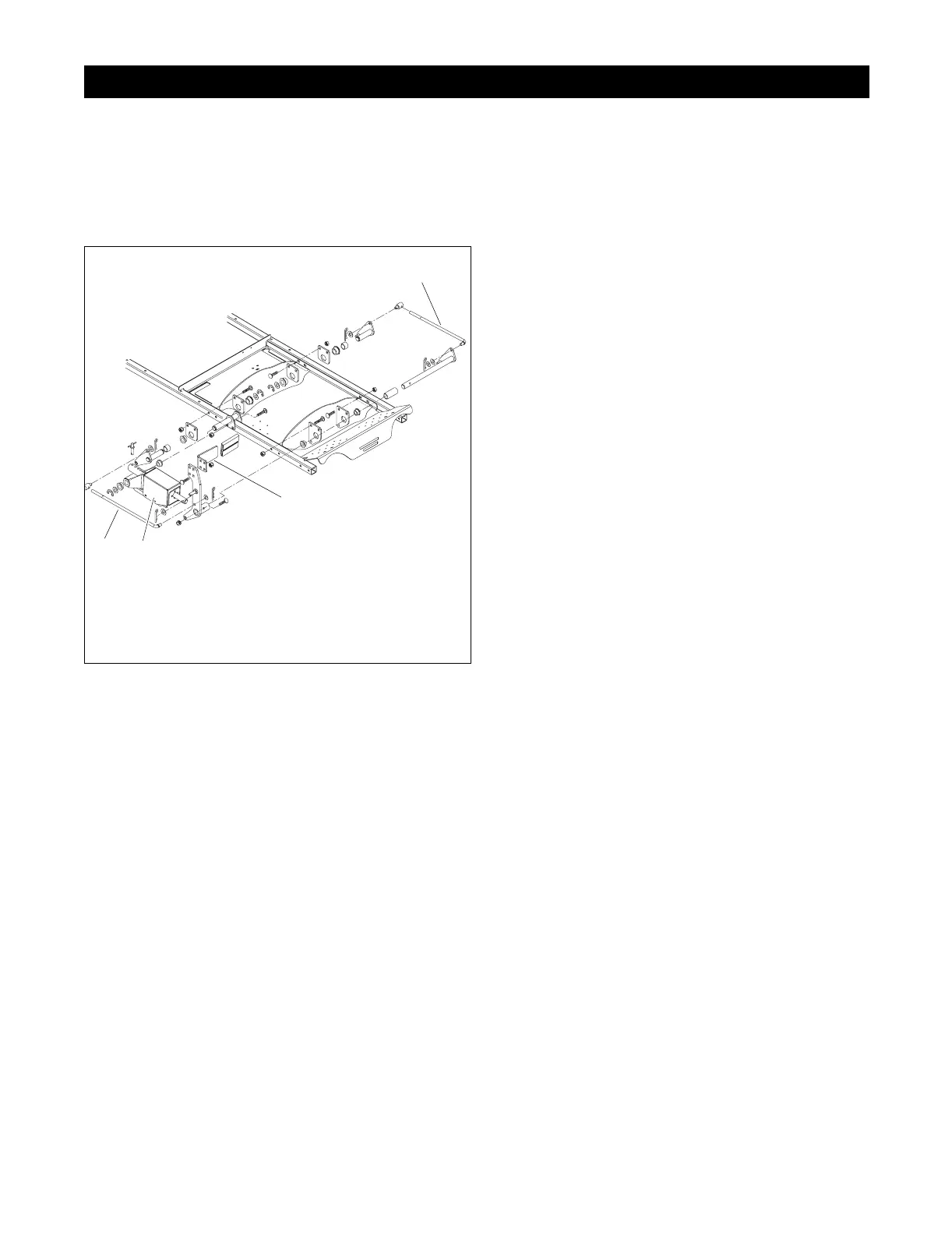

Refer to Figure 20.
The mower pan lift system is a manual lift system
controlled by the operator.
Lower deck onto blocks to remove weight from lift
system.
Check snap rings, bushings, and cotter pins for wear.
Replace worn and defective parts as needed.
SECTION 8 - LIFT SYSTEM
Figure 20
PE0910
1. Foot Pedal Lift
2. Lift Assembly
3. Linkage
1
23
3
