12.1 MOWER SPINDLE REMOVAL

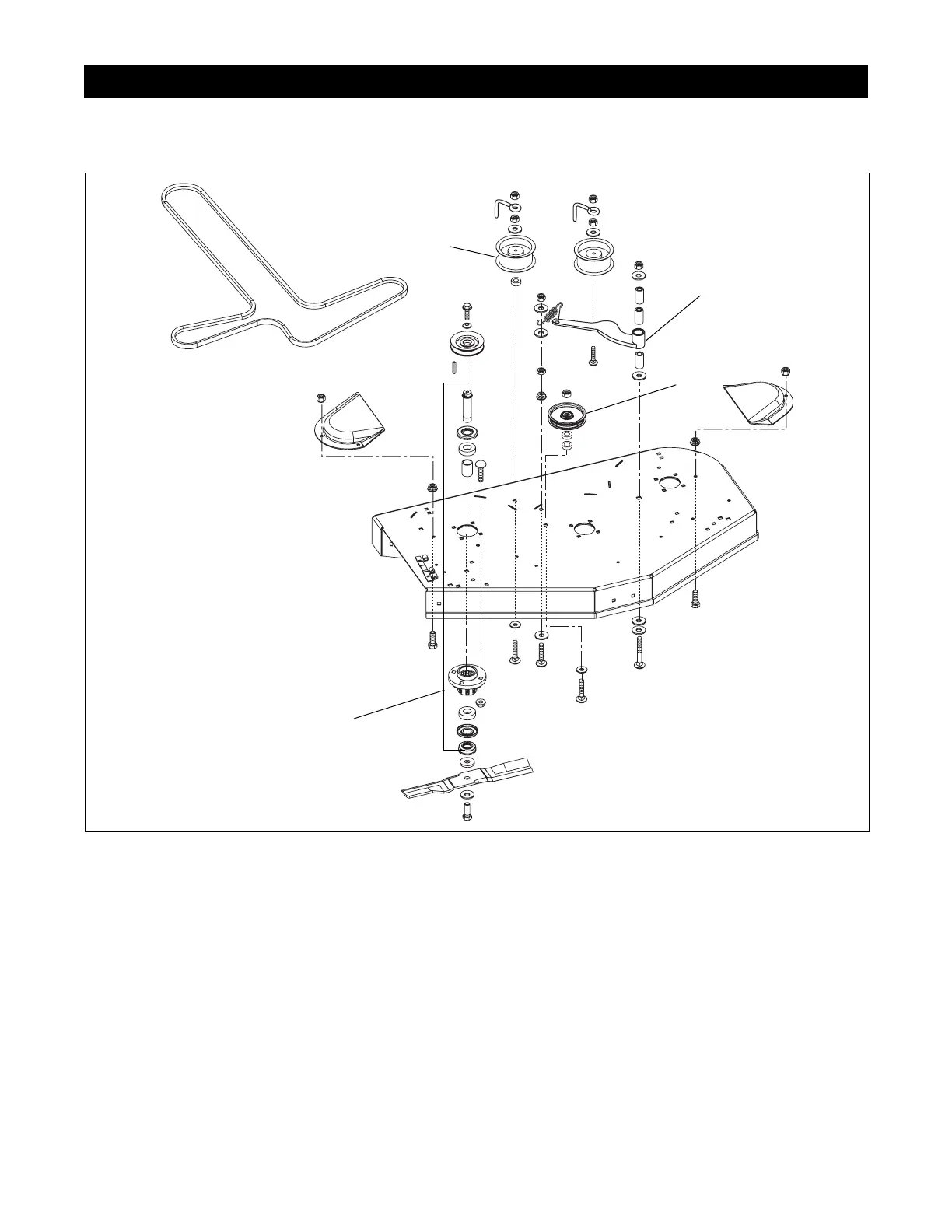

Figure 36
The spindles are assemblies that are replaced when
worn. To remove the spindle assemblies:
1. With the mower deck removed from the unit the
disassembly of the mower may be performed.
2. Remove the mower spindle covers.
3. Remove the mower deck blades.
4. Reduce belt tension on the belt by removing the
idler pulley spring.
5. Remove the spindle sheaves and square key.
6. Remove the mower spindle housings from the
mower deck stamping.
7. Assemble in reverse order.
SECTION 12 - MOWER ATTACHMENT
1. Spindle Assembly
2. Idler Arm
3. Idler - Flanged
4. Idler - Flat
PE0550
3
2
4
1
