Ariens 921024 - Page 18

EN - 18
1. Attachment Clutch Lever
2. Speed Selector
3. Traction Drive Clutch Lever
4. Remote Deflector Control
5. Height Adjuster Trigger (Model 921023)
6. Handwarmers (Models 921028, 029)
7. Handwarmers Switch
(Models 921028, 029)
8. Oil Drain
9. Fuel Shut-Off Valve
10. Primer Bulb
11. Recoil Starter Handle
12. Throttle
13. Choke Control Knob
14. Ignition Key
15. Fuel Tank and Cap
16. Oil Fill/Dipstick
17. Electric Start
18. Auger
19. Auger Gearcase
20. Scraper Blade

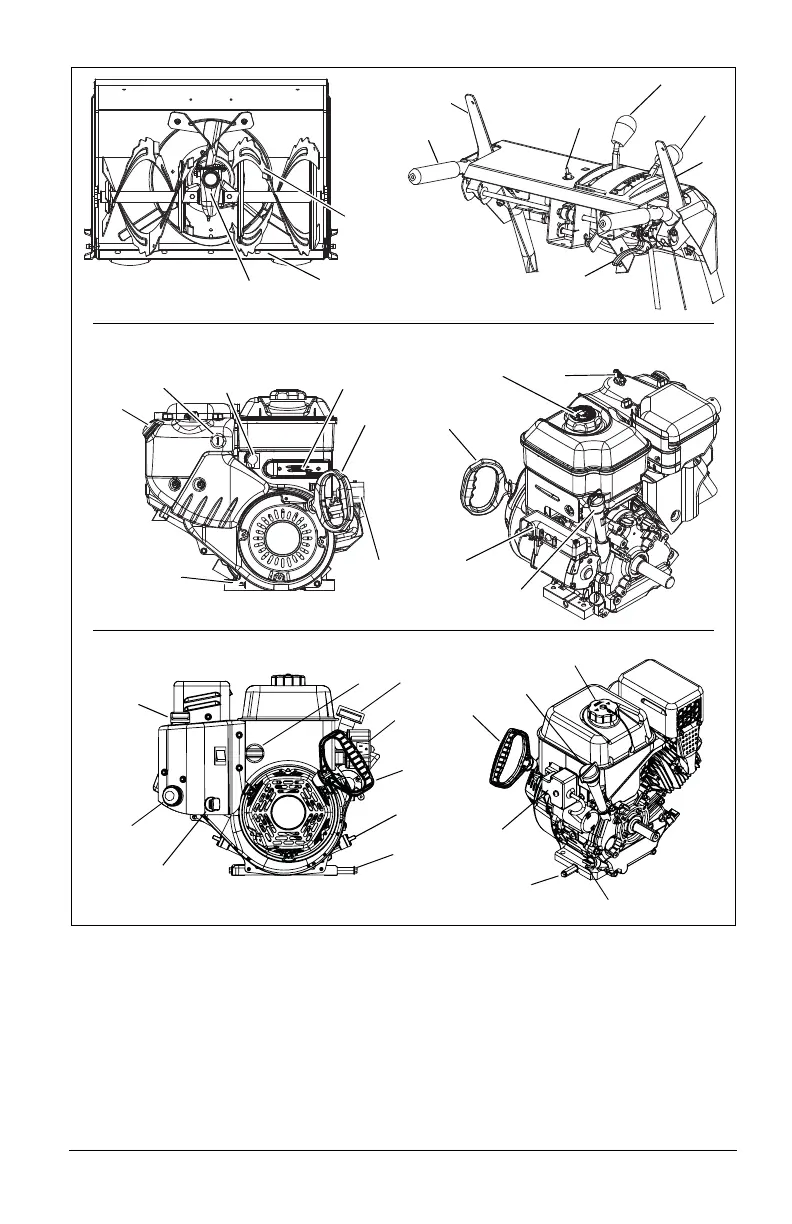

Figure 18
10
8
12
14
9
11
13
17
17
15
11
4
7
2
3
1
5
6
18
20
19
16
Ariens AX
Briggs & Stratton
8
8
14
9
12,13
10
11
11
17
16
15
17
16
16
16
