EN - 3

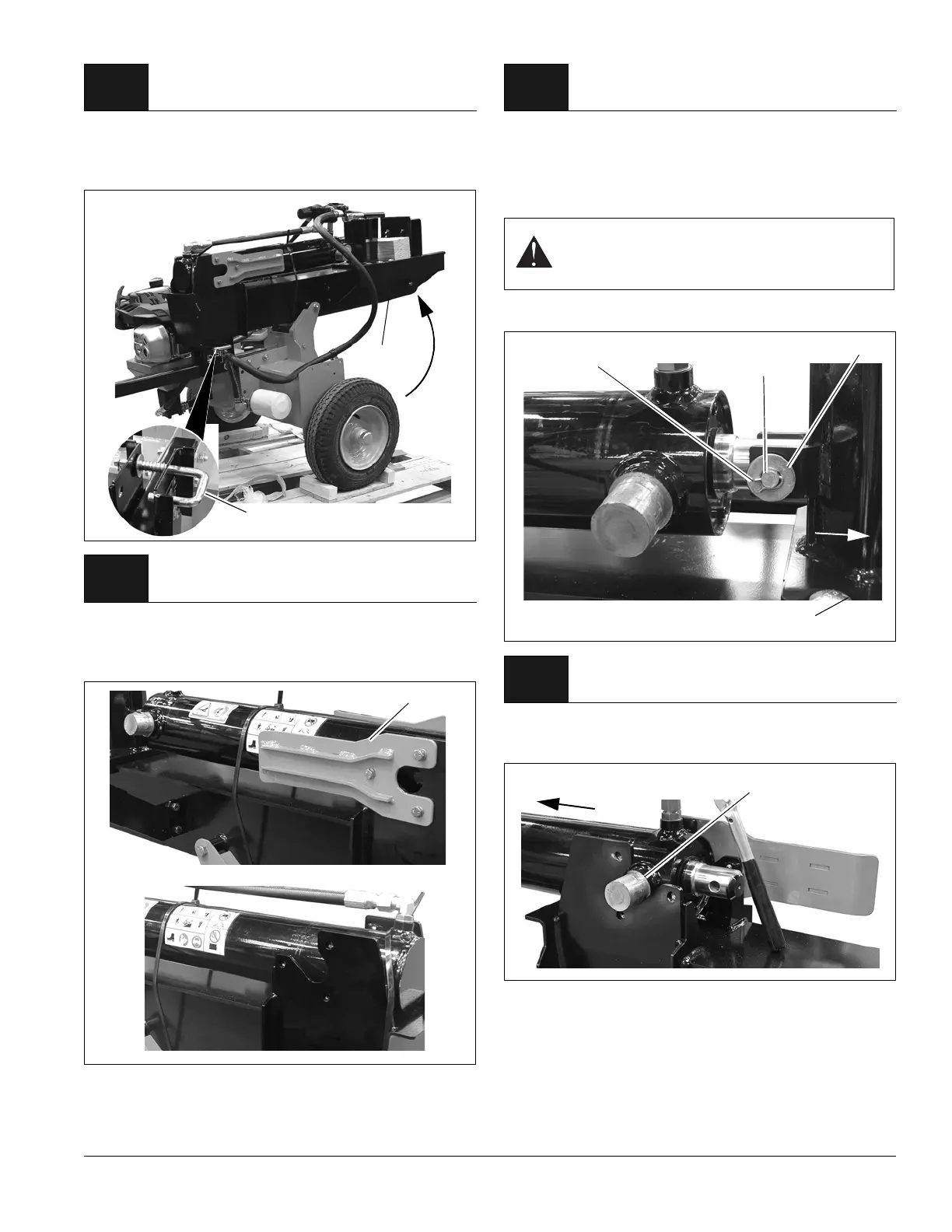

Ensure that beam lock (# 14) is seated in hole and rotate
beam (# 11) into horizontal position until it locks into
position. Lock must engages fully.
Remove three hex bolts retaining stripper plate (# 13)
from each side and remove stripper plates. Retain for
installation.
a. Remove hair pin, washer, and clevis pin retaining
wedge (# 10) to hydraulic cylinder. Retain for
assembly.
b. Slide wedge away from hydraulic cylinder.
c. Cut cable ties retaining cylinder to beam.
Position hydraulic cylinder into the beam yokes and
install one stripper plate.
4.
5.
6.
CAUTION: Avoid Injury! Keep hands and
fingers clear. Cylinder assembly will drop
slightly when clevis pin is removed.
7.
Position cylinder
in yokes.
