11

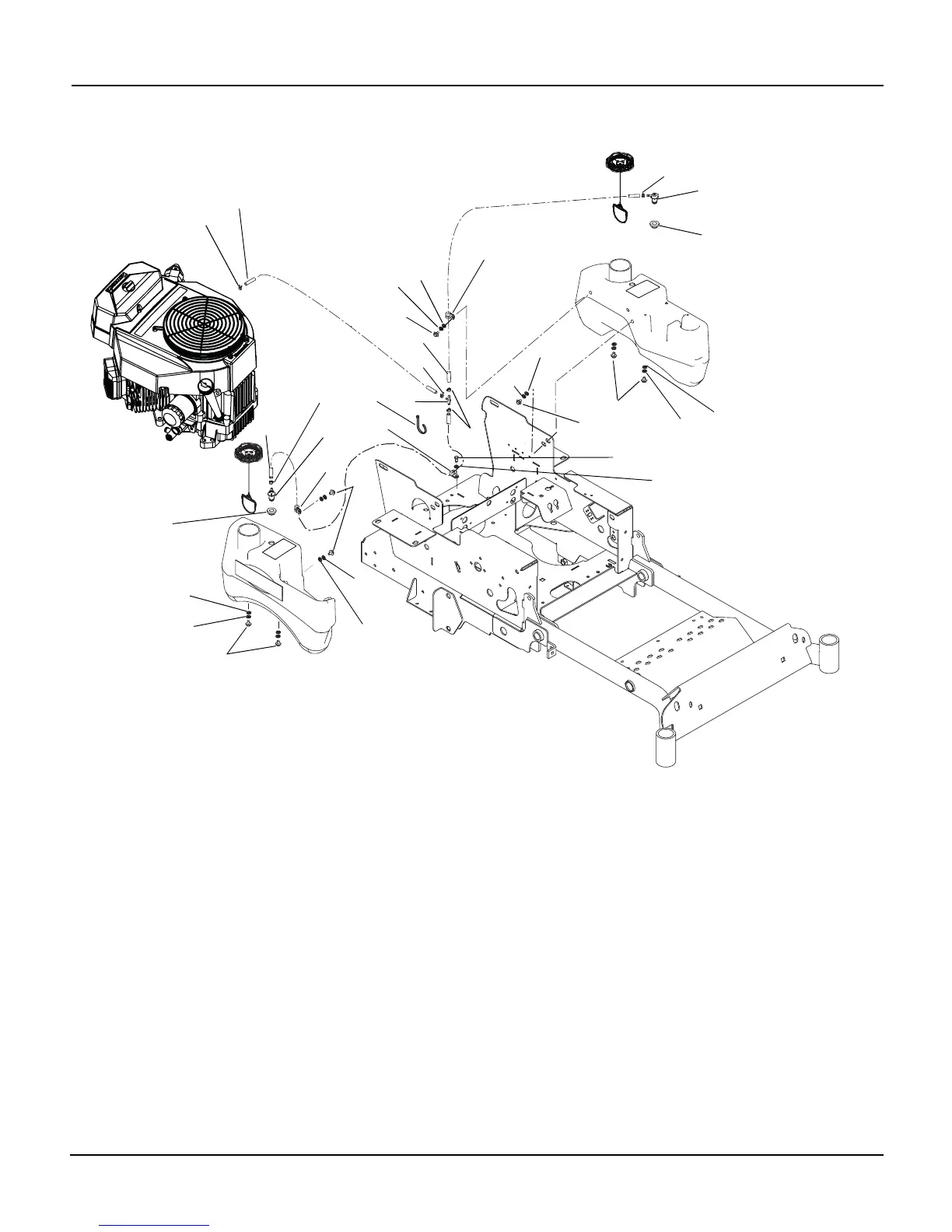

EPA VENT LINES
Model 991085, 086, 087
Item Part No. Qty. Description
1 04082700 2 Grommet
2 04068910 2 Valve
3 03278800 4 Hose, Clamp
4 06908200 3 Clamp
5 05947800 8 Bolt, .31-18 x .62
6 06308600 9 Washer, Locking .31 x .078 Regular
7 06435700 8 Washer, Flat Steel .38 x .875 x .083
8 04306900 1 Fitting, Tee 1/4 x 3/8
9 07517300 2 Tie, Cable LG 5.50
10 04097700 2 Clamp, Spring .188
11 03375900 17” Hose, Fuel
12 03278100 41” Hose, Fuel
13 03278100 8” Hose, Fuel
14 05973300 1 Bolt, Hex M8-1.25 x 2.0
2
3
3
4
4
5
5
8
11
12
13
6
7
7
6
6
6
7
7
2
3
9
4
14
5
5
5
6
6
7
10
10
1
1
