Ariens Max Zoom 48 User Manual

6

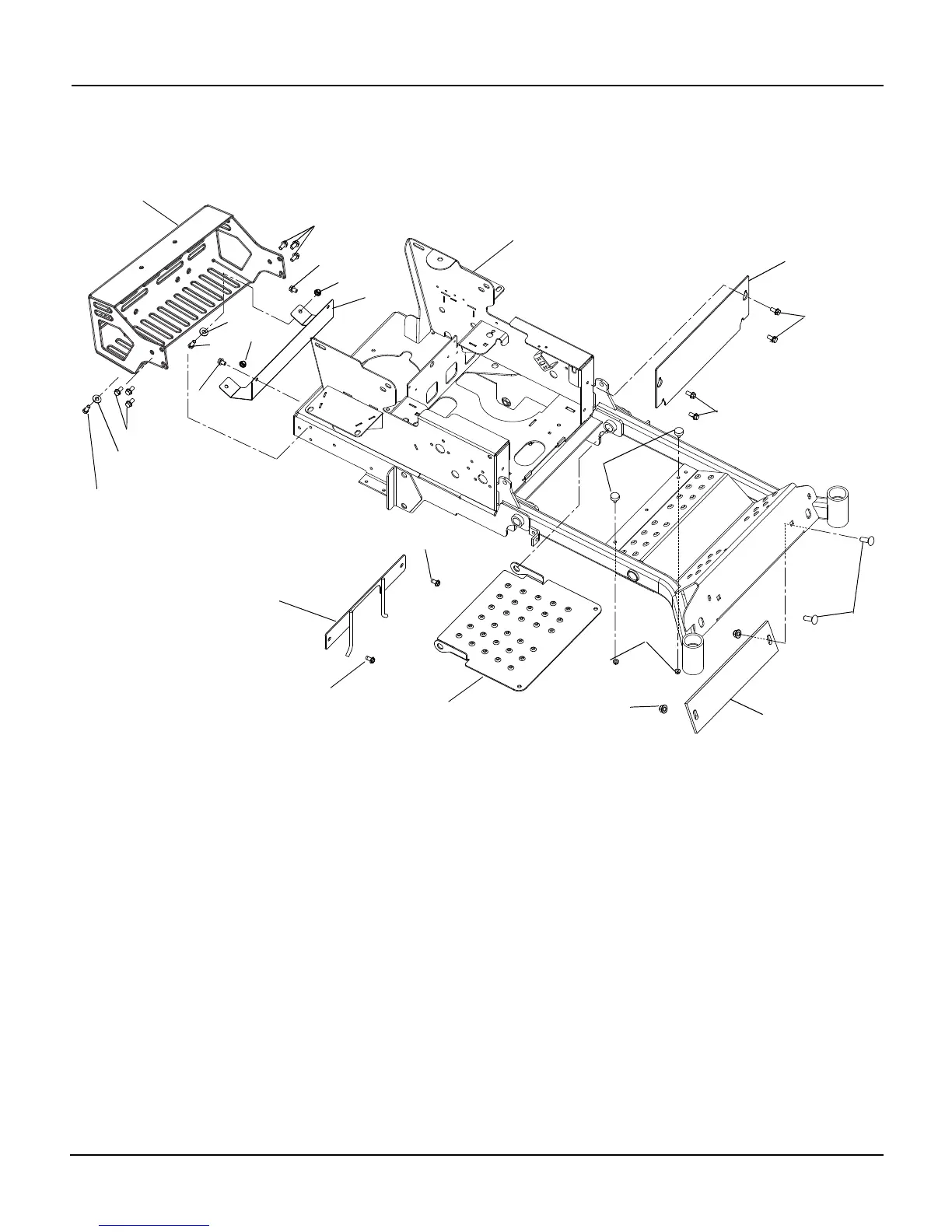

FRAME
Model 991085, 086, 087
Item Part No. Qty. Description
1 03975051 1 Weldment, 48” HD Frame (991085)
03974951 1 Weldment, 52” – 60” HD Frame (991086, 087)
2 06530400 2 Nut, Spin Lock Flange .312-18
3 02989059 1 Kick Plate
4 03994651 1 Bumper, Max Zoom
5 07415400 12 Screw, Tapping .38-16 x .75 Hex Washer Head
6 07533600 2 Bumper, Rubber
7 00298959 1 Panel, Inspection
8 00462351 1 Heat Shield
9 05948700 2 Bolt, Hex .38-16 x 1.00 Grade 5
10 06545500 2 Nut, Nyloc Flange .38-16
11 06435900 2 Washer, Flat Steel .438 x 1.00 x .083
12 01922851 1 Counterweight CZ Front (991085)
13 06200119 2 Bolt, Round Head Square Neck .50-13 x 2.25 Grade 5 (991085)
14 06500010 2 Nut .50-13 Nyloc Flange (991085)
15 04053651 1 Weldment, PTO Belt Finger
16 07415400 2 Screw, Tapping .38-16 x .75 Hex Washer Head Thread
4
2
6
3
1
7
9
11
10
8
14
13
5
5
10
11
9
5
5
12
15
2
16
5
5
