10

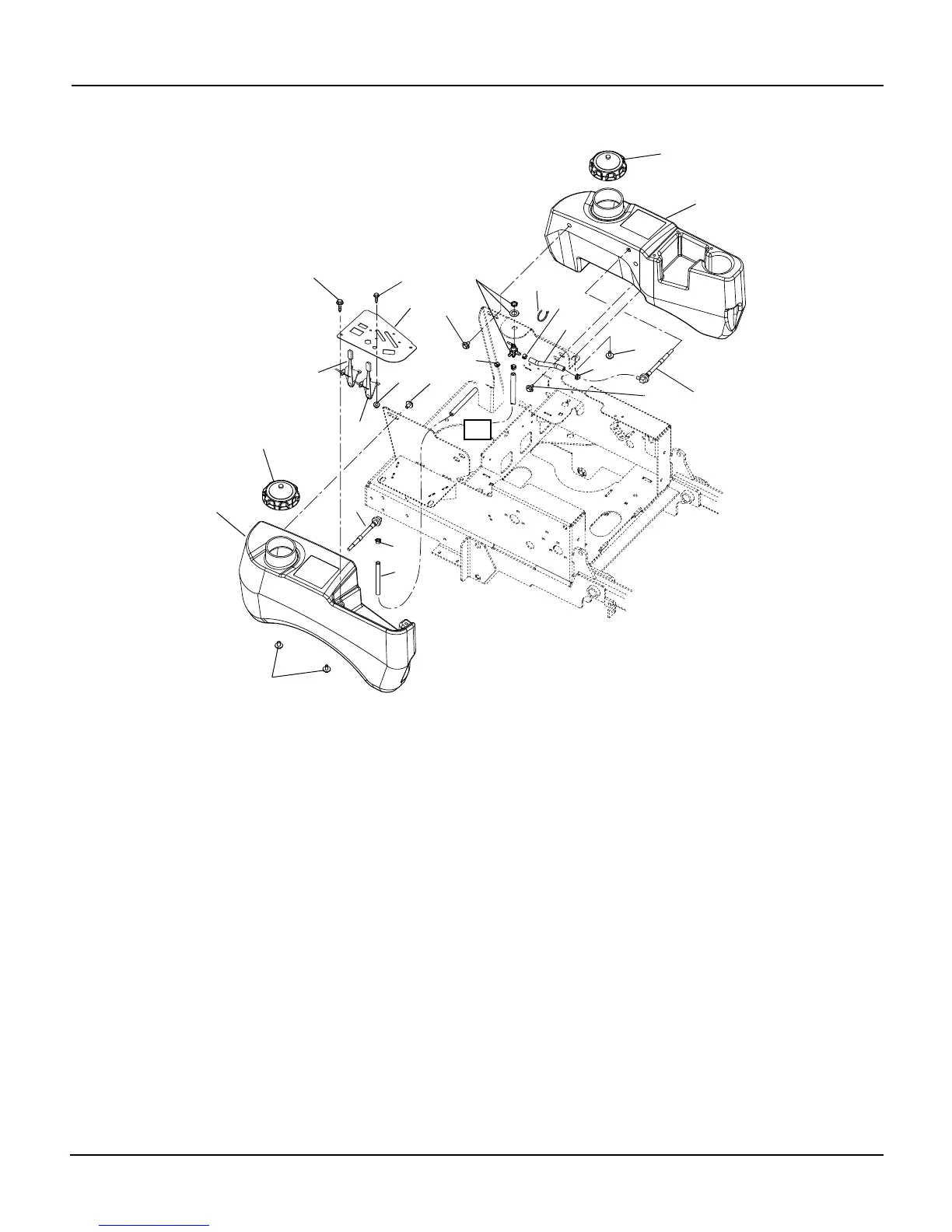

FUEL TANKS AND HOSES
Model 991085, 086, 087
Item Part No. Qty. Description
1 09298200 1 Tank, Fuel RH (S/N 101 – 2499)
04245100 1 Tank, Fuel RH (S/N 2500 and up)
2 07000018 8 Bolt, SEMS .31-18 x .62
3 03278800 5 Clamp, Fuel Line
4 00262700 1 Tank, Fuel LH (S/N 101 – 2499)
04245200 1 Tank, Fuel LH (S/N 2500 and up)
5 09258200 1 Valve, Fuel
6 03859100 2 Cap, Fuel (S/N 101 – 2499)
04237300 2 Cap, Fuel Ratcheting (S/N 2500 and up)
7 03900400 2 Assembly, Tank Fuel Pick-up
8 04041751 1 Panel, Control
9 06100211 2 Screw, Machine 10-24 x .38 Stainless
10 06900422 2 Cable, Control
11 07517300 2 Cable Tie
12 03278100 10” Hose, .25 Low-PERM Bulk Gas
13 03278100 25” Hose, .25 Low-PERM Bulk Gas
14 06116700 4 Screw, Machine 10-24 x .50 Hex Washer Head
15 06536000 4 Nut, Locking-Nylon 10-24 with Insert
A
1
4
5
6
7
6
7
PD0482
9
8
10
11
3
3
3
A = SEE “ENGINE AND CLUTCH”
13
12
10
3
14
15
2
2
2
2
2
