Ariens Max Zoom 48 - Hydro Drive System; Hydro Drive Components

9

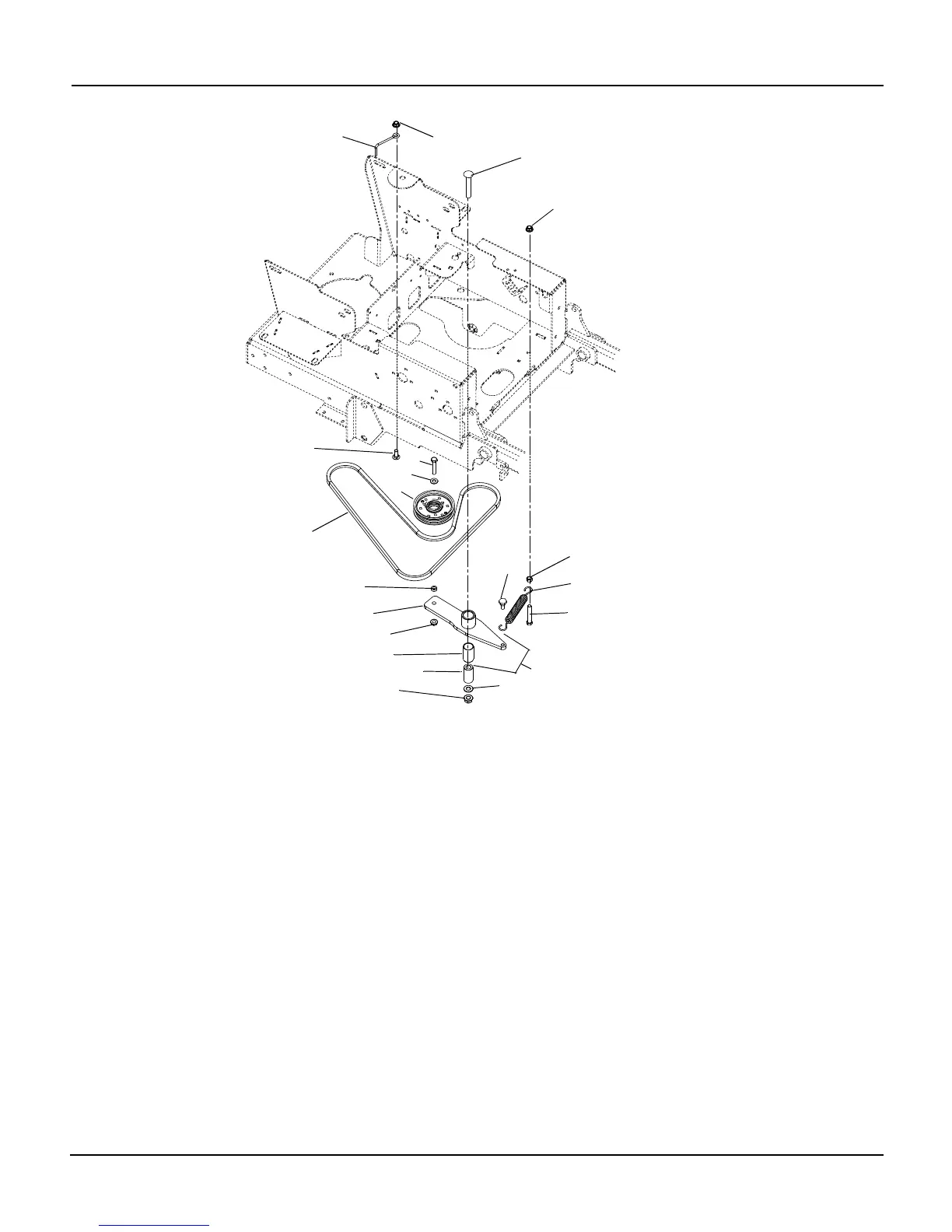

HYDRO DRIVE
Model 991085, 086, 087
Item Part No. Qty. Description
1 07211500 1 Belt, 4L 67.47 Wrapped
2 05508900 1 Bushing, Sleeve .377 x .624 x .235
3 06545500 3 Nut, .38-16 Nyloc Flange
4 05500123 AR Bushing, 1.00 x 1.125 x 1.936
5 01581700 1 Bushing, Spacer .502 x .997 x 2.03
6 06500010 1 Nut .50-13 Nyloc Flange
7 03792900 AR Weldment, Hydro Drive Idler Arm
8 08300507 1 Spring, Extension
9 07000034 1 Bolt, Shoulder EP .38-16 x .30 Hex
10 05958400 1 Bolt, Hex .38-16 x 2.50 Grade 5
11 06529400 1 Nut, Locking, Center .375-16
12 05960000 1 Bolt, Hex .50-13 x 3.25 Grade 5
13 06223600 1 Bolt, Round Head Square Neck .38-16 x 1.00 Grade 5
14 05963300 1 Bolt, Hex .38-16 x 2.00 Grade 5
15 06436200 1 Washer, Flat-Steel .406 x .812 x .065
16 07312500 1 Assembly, 4" Idler
17 00391900 1 Belt Finger
18 06436400 1 Washer, Flat, Steel .511 x 1.441 x .125
19 03796200 1 Assembly, Idler Pivot Arm (Includes item 4 and 7)
1
8
10
11
3
12
3
17
9
16
15
14
13
5
4
3
7
2
6
19
18
