GB - 12
Recoil Rope Set-Up
Loosen lock nut on inner side of handlebar
bracket until rope guide mounting cap screw
is loose enough to allow lower half of guide to
be rotated away from upper half, opening
rope guide. See Figure 10.
1. Hold OPC lever fully depressed while
slowly pulling recoil rope out past
handlebar. Release OPC lever while
holding recoil rope extended. See
Figure 11.
2. Position recoil rope in upper half of
guide and then rotate lower half back to
close guide, capturing rope. See
Figure 10.
NOTE: Ensure mounting cap screw is
properly seated in lower half of rope guide.
3. Tighten lock nut on inner side of
handlebar bracket to secure rope guide
halves together.

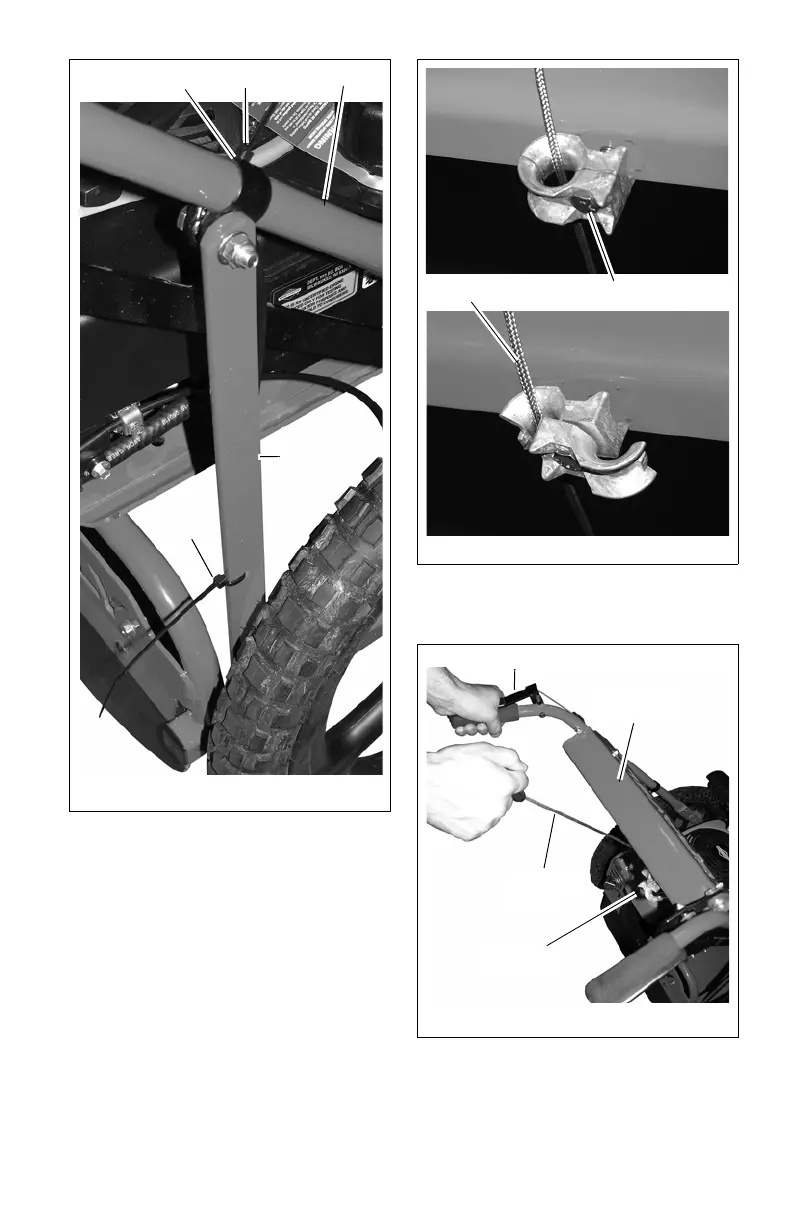

Figure 9
Handlebar
Support
Cable
Tie
Support Clamp
Cable Tie
Handlebar
Figure 10
Rope
Guide
Opened
Rope
Guide
Closed
Mounting Cap Screw
Recoil Rope
Figure 11
Recoil
Rope
Handlebar
Bracket
OPC Lever
See
Figure 10
