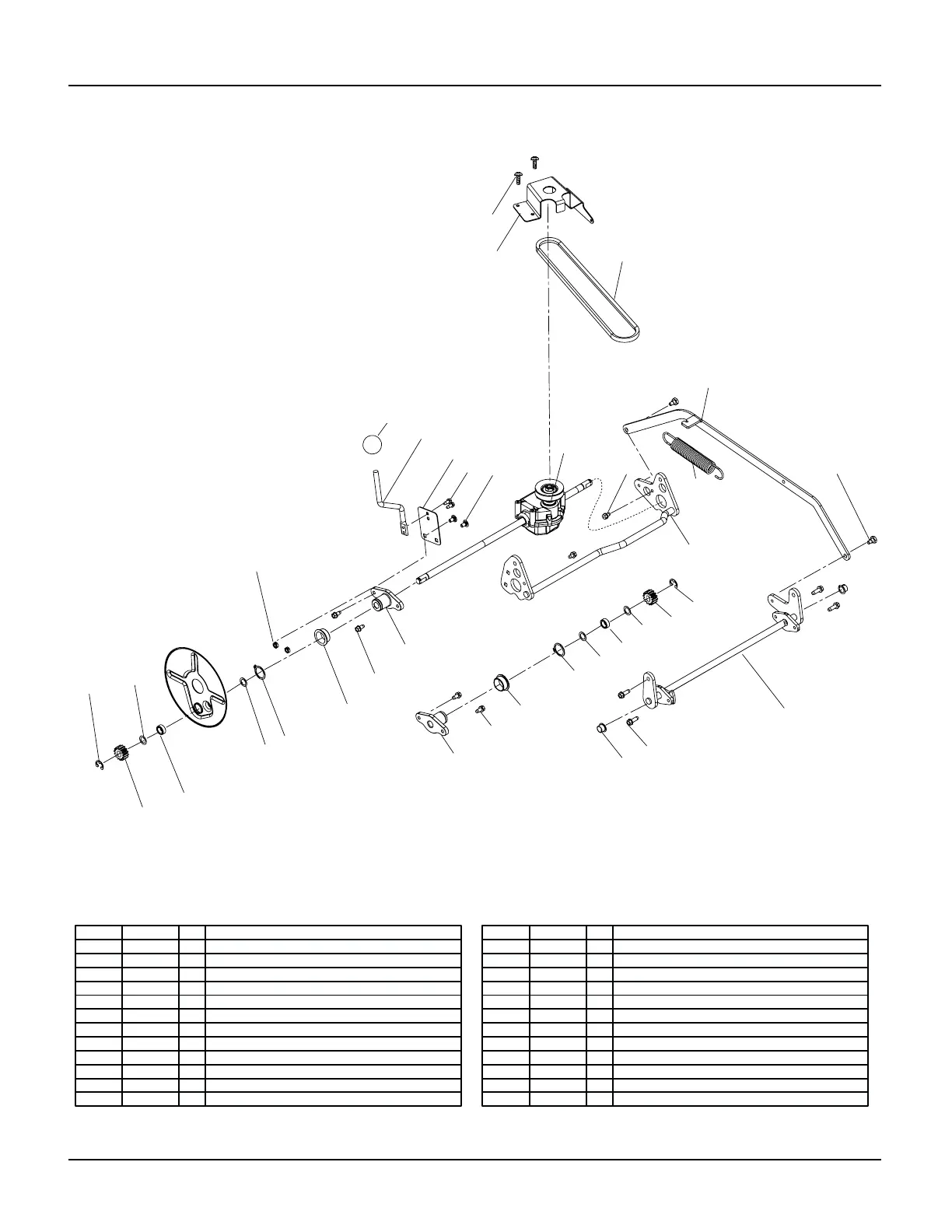

TRANSMISSION AND HEIGHT OF CUT
Model All
11
1
18
9
2
14
19
16
6
19
11
1
10
6
13
2
17
19
21
20
5
15
12
3
19
4
9
17
7
11
22
24
8
11
10
BOM ID Number Qty Description
1 00211100 2 SPCR, PM .500ID X .75OD X .321
2 04507500 2 GEAR, PINION , LM WHEEL DRIVE
3 04513751 1 PLATE, HOC SPRING
4 04516167 1 LEVER, HOC ADJUST
5 04516259 1 LINK, HOC CONNECT
6 04516900 2 HUB, LM REAR AXLE
7 04534951 1 GUIDE, BELT TRANSMISSION
8 05500026 2 BSHG, SPLIT NYLON
9 05501124 2 BSHG, FLANGE 1.0 X 1.125 X .50 X 1.375
10 05710200 2 RG-RTNG-EXT .500 X .042 (E)
11 06400015 4 WASHER-FLAT-STL, .500 X .750 X .020
12 07001708 2 BOLT, SHLDR .320 X .210 X .25-20 SELF-TAPPING
BOM ID Number Qty Description
13 07200633 1 BELT
14 07533500 1 KNOB,BALL -BLACK 1.47" .375-16
15 08316800 1 SPRG, EXTENSION
16 06220600 2 BLT-RDHDSQNK .25-20 X .50
17 05706200 2 RG-RTNG-EXT 1.00 X .042
18 06500635 2 NUT-LK-CTR-JAM .25-20
19 07400034 8 SCR-TAP 0.25 -20 X .50 HWH TR
20 04509200 1 TRANSAXLE, AUTOMATIC, LM
21 04515967 1 WLDMT, LM REAR AXLE
22 04516067 1 WLDMT, LM FRONT AXLE
23 07400112 3 SCR-TAP 10-14 X .75 PLSTITE BLKOX
23
24 07400111 4 SCR-TAP .25-20X.75 HWH TR YWZ
To Next Page
