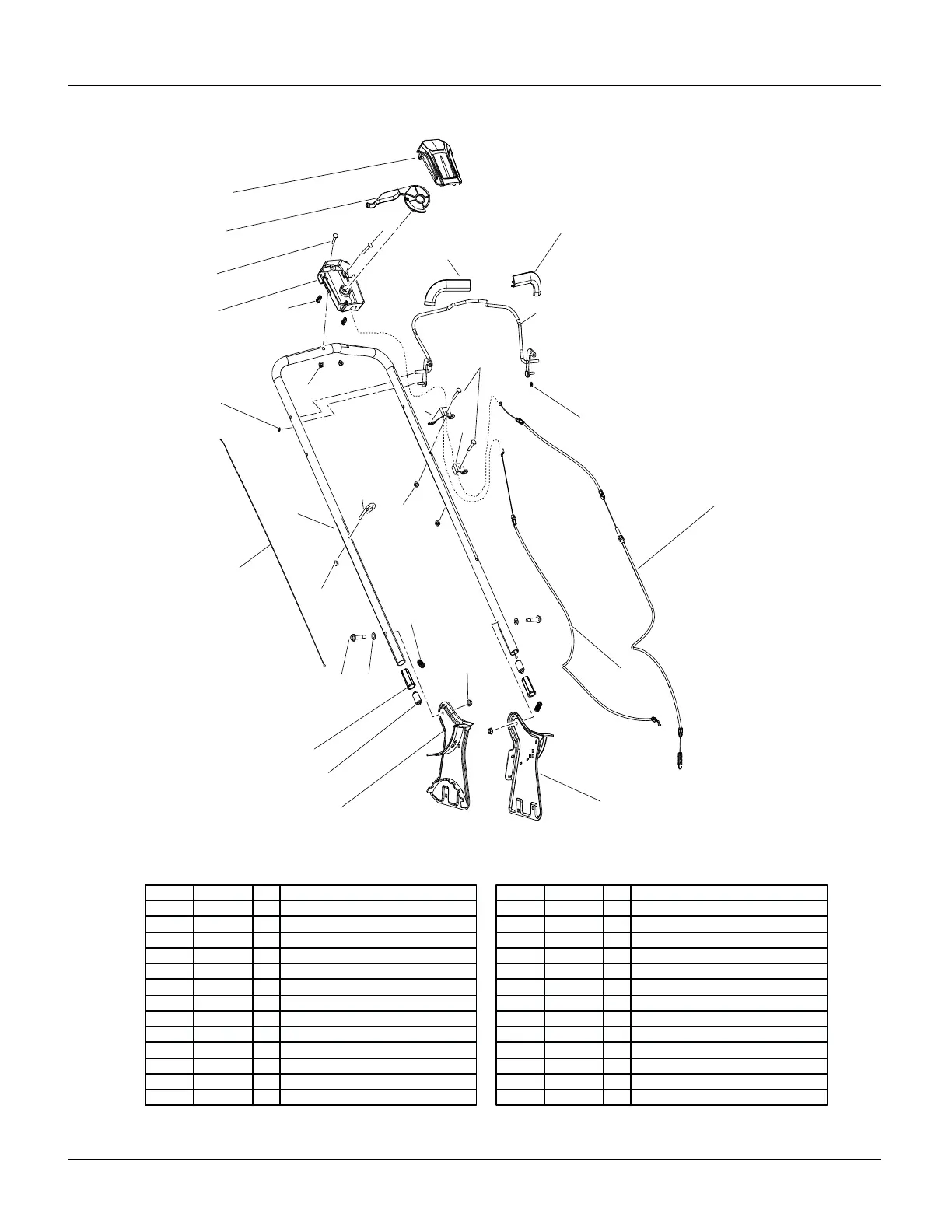

BOM ID Number Qty Description
2 04528600 2 HANDLEBAR ADJUSTMENT INSERT
3 04533651 1 BRKT, CABLE ANCHOR
4 04535351 1 HANDLEBAR
5 04535400 1 HANDLE, DRIVE CONTROL
6 04535600 1 GUARD, FINGER - LH
7 04535767 1 GUIDE, RECOIL ROPE
8 04549000 1 HOUSING, UPPER DRIVE CONTROL
9 04549100 1 FRONT, SQUEEZE BOX
10 04551100 1 GUARD, FINGER - RH
11 04575351 1 BRKT, CABLE - DRIVE
12 07001709 2 BLT, SHLDR .50 X 1.30 X .38-16
13 07027600 2 PUSH-NUT 1/4
14 07400101 3 SCR-TAP 12-14 X .75 PLSTITE
BOM ID Number Qty Description
15 08300028 2 SPRG, COMPRESSION
16 06222300 4 BLT-RDHDSQNK .25-20 X 1.50
17 06543100 2 NUT-HEX TOP LOCK FLANGE
18 06400840 1 WSHR-FL-STL .385x.745x.030 YWZC
19 04535559 1 BAIL, OPC
21 04521400 2 PIN, LM HANDLEBAR LOCKING
22 06900528 1 ADJUSTABLE HANDLEBAR CABLE
24 06900535 1 CABLE, DRIVE CONTROL
25 04516351 1 WLDMT, RH SIDE PLATE
26 04516451 1 WLDMT, LH SIDE PLATE
27 06900529 1 OPC CABLE
28 06500012 1 NUT-LK-NYL-FLG .25-20 YWZC
06543500 4 NUT-LK-TOP-FLG .25-20 YWZC29
