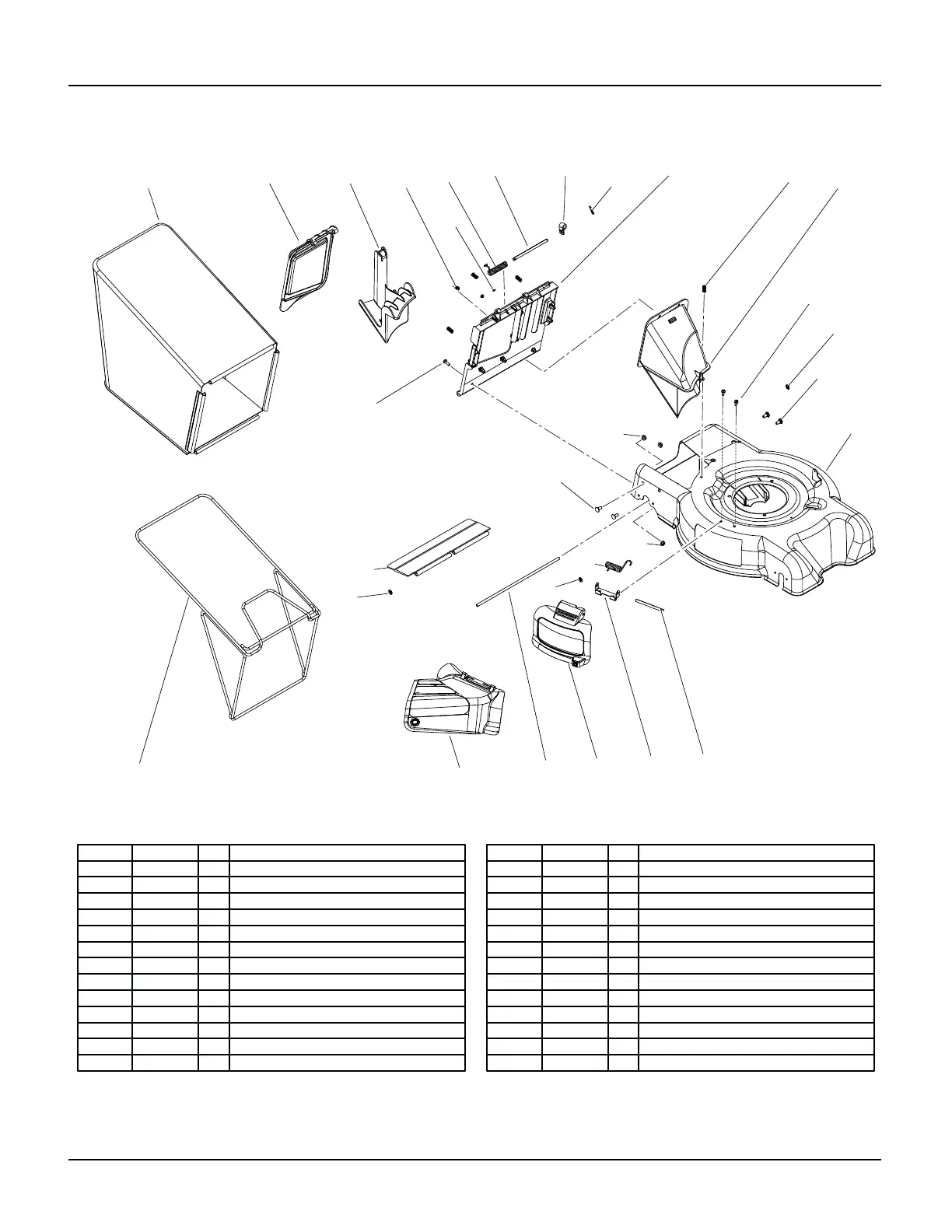

MOWER DECK AND BAGGER
Model All
12
14
20
24
23
22
14
7
25
18
2
4
13
3
20
9
16
21
15
8
6
19
1
10
17
16
11
14
5
BOM ID Number Qty Description
1 00475800 1 PIN, 5/16 X 5.80"
2 04514651 1 BRKT, HINGE LM
3 04514800 1 CHUTE, SIDE DISCHARGE - LM
4 04514900 1 COVER, SIDE DISCHARGE - LM
5 04534000 1 PIN, SIDE DISCHARGE
6 04534300 1 PLUG, MULCH
7 04534400 1 GUARD, REAR
8 04534600 1 DOOR, REAR
9 04534700 1 HANGER, BAG
10 04535900 1 BAGGER, GRASS
11 06713500 1 PIN, HAIR INT .08X.18X1.18 Y
12 04547900 1 DOOR, BAGGER
13 04556200 1 ROD, REAR GUARD
BOM ID Number Qty Description
14 06514900 3 NUT, PUSH .312
15 06900512 1 CLAMP, LM CABLE
16 07400101 11 SCR-TAP 12-14 X .75 PLSTITE
17 07500301 2 PLUG, 5/16 HOLE, .125 MATL PLASTIC
18 08300535 1 SPRG, TORSION
19 08322400 1 SPRG, TORSION
20 06215700 4 BLT-RDHDSQNK .31-18 X .75
21 05946800 2 BLT-HEX .25-20 X .75
22 06543100 2 NUT, LK-TOP-FLG .25-20
23 07400034 2 SCR-TAP .25-20 X .50 HWH TR
24 04540659 1 WLDMT, 21" LM DECK SHELL ARIENS
25 04520659 1 FRAME, BAGGER
26 06543500 4 NUT, LK-TOP-FLG .31-18 YWZC
26
To Next Page
