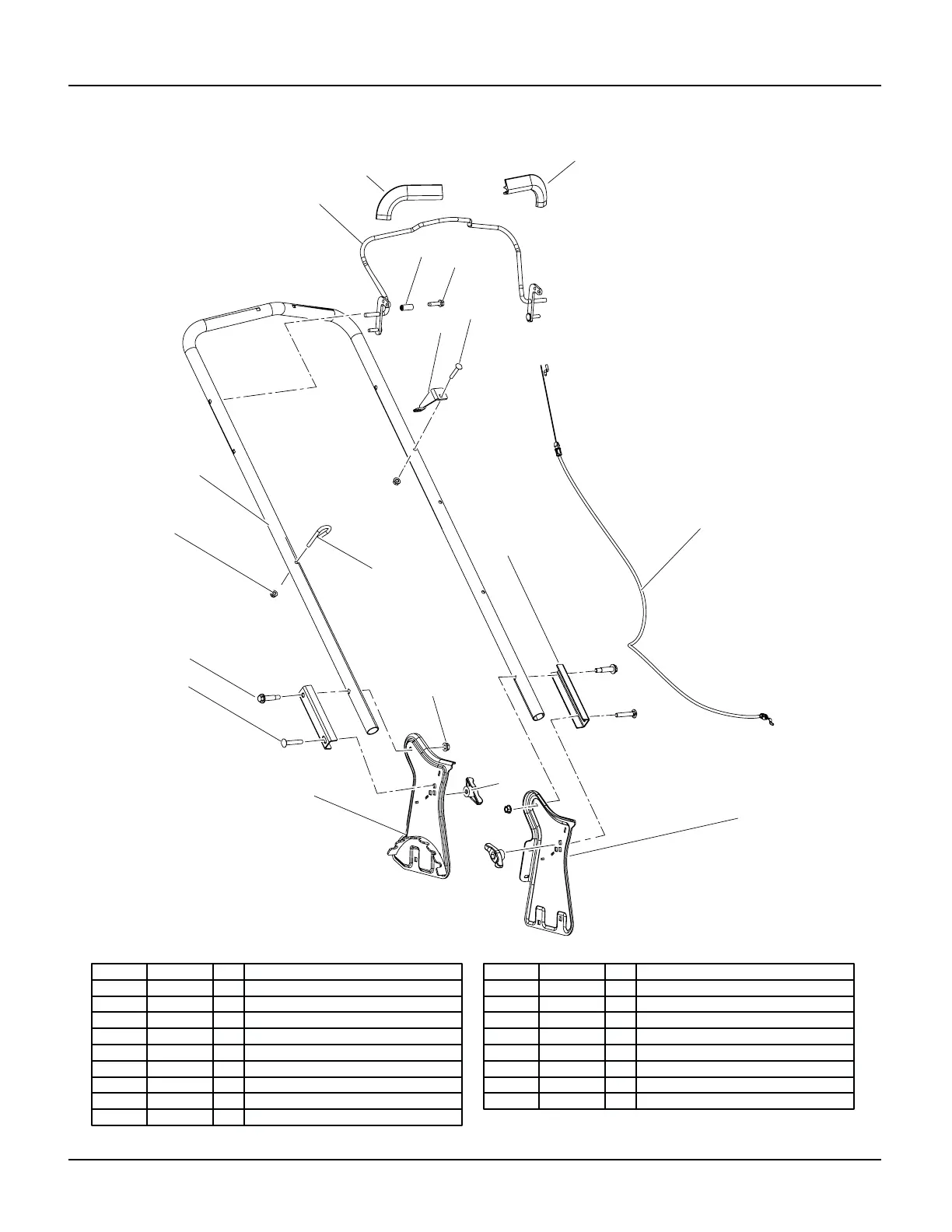

HANDLEBAR AND CONTROLS
Model 911173
11
17
12
17
7
18
9
13
10
5
19
1
4
20
15
8
BOM ID Number Qty Description
1 06543500 2 NUT-LK-NYL-FLG .25-20 YWZC
4 04535351 1 HANDLEBAR
5 04535559 1 BAIL, ENGINE
7 04535600 1 GUARD, FINGER - LH
8 04535767 1 GUIDE, RECOIL ROPE
9 04542751 1 SUPPORT, LH HANDLEBAR
10 04545551 2 BRKT, HANDLEBAR FIXED ADJUST
11 04551100 1 GUARD, FINGER - RH
12 04562951 1 BRKT, CABLE ANCHOR - LM PUSH
BOM ID Number Qty Description
13 07001709 2 BLT, SHLDR .50 X 1.30 X .38-16 GR5
14 07412400 1
15 07500105 2 KNOB, WING .31-18 UNC NYL/TALC
17 06222300 3 BLT-RDHDSQNK-GR5-Y
18 06543100 2 NUT-HEX TOP LOCK FLANGE
19 06900529 1 OPC CABLE
20 04542851 1 WLDMT, RH SIDE PLATE-ARIENS
14
21
SCR-TAP .25-20X1.00 HWH TR YZ
21 07517000 1 CAP, VINYL
