Ariens Sno-Tek 20 User Manual

EN - 8
1. Engine Key
2. Engine Run / Stop Switch
3. Primer Bulb
4. Fuel Tank and Cap
5. Fuel Valve
6. Electric Start Button
7. Choke Control Knob
8. Oil Fill / Dipstick
9. Oil Drain
10. Recoil Starter Handle
11. Speed Selector Lever
12. Auger
13. Impeller
14. Shear Bolt (2)
15. Attachment Clutch Lever
16. Traction Drive Clutch Lever
17. Discharge Chute Rotation Lever
18. Discharge Chute Deflector Lever (Model
920402)
19. Scraper Blade
20. Skid Shoe (2)
21. Axle Lock Pin (2)
22. Snow Clean-out Tool
23. Discharge Chute
24. Remote Discharge Chute Deflector
(Model 920402)
25. Manual Discharge Chute Deflector
(Model 920406)
26. Belt Cover
27. Gearcase

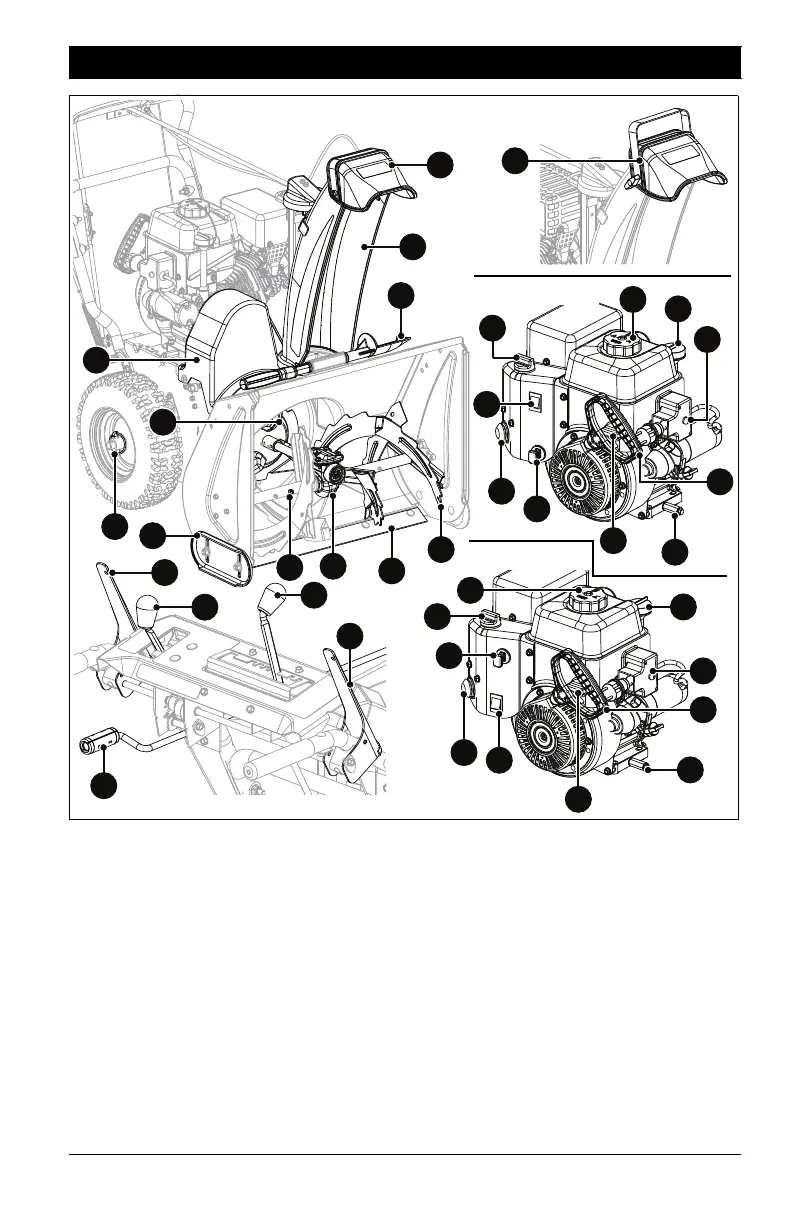

CONTROLS & FEATURES
Figure 3
21
7
4
20
8
13
14
27
16
2
3
1
5
9
10
6
17
18
19
12
11
15
22
23
24
26
25
8
2
7
1
3
10
5
9
6
4
Model 920406
Model 920402
