Ariens Sno-Tek 20 - AUGER AND TRACTION CONTROLS; ATTACHMENT AND TRACTION CLUTCH LEVERS

EN - 10
ATTACHMENT CLUTCH LEVER
(RIGHT SIDE)
See Figure 8.
Controls auger / impeller movement.
TRACTION DRIVE CLUTCH
LEVER (LEFT SIDE)
See Figure 9.
Allows unit to travel forward and in reverse.
DUAL HANDLE INTERLOCK
Allows auger / impeller to rotate without
holding attachment clutch lever continuously.
Auger continues to turn until both clutch
levers are released.
DISCHARGE CHUTE ROTATION
LEVER
See Figure 10.
Rotates discharge chute left or right to control
snow discharge.
DISCHARGE CHUTE DEFLECTOR
LEVER
Model 920402
See Figure 11.
Moves discharge deflector up or down to
control height of snow discharge.

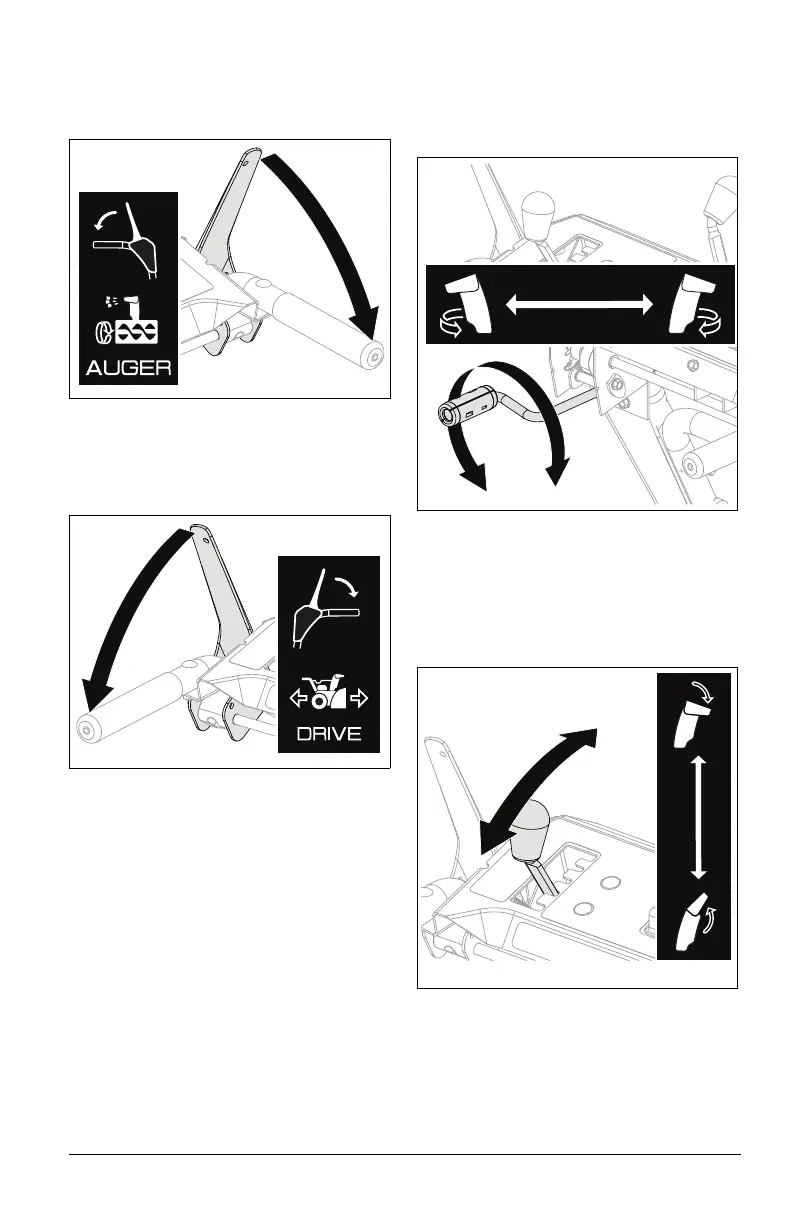

Figure 8
Figure 9
Figure 10
Figure 11
