Ariens Sno-Thro 921 Series User Manual

EN - 9
ASSEMBLY
WARNING: AVOID INJURY. Read
and understand the entire Safety
section before proceeding.
WARNING: Dropping or tipping over
boxed unit could result in personal
injury or damage to unit.
Package Contents
Check the contents of your package for the
parts listed below (Figure 3):
Item Part No. Qty Description
The following parts are included as part of
the Sno-thro Unit:
1.
N/A 1 Sno-thro Unit
2.
07028500 2 3/8" x 3/4" Hex Head
Serrated Flange
Grade 5 Bolt
The following parts are included as a part of
the Lower Handlebar:
3.
00597451 1 Lower Handlebar
4.
06221600 4 5/16" x 2-1/4" Round
Head Square Neck
Grade 5 Bolt
5.
07500005 4 Handlebar Spacer
6.
06435700 4 Flat Steel Washer
7.
06307400 4 Locking Washer
8.
06530200 4 5/16" Nyloc Nut
9.
N/A 1 Upper Handlebar
Assembly
10.
N/A 1 Discharge Chute
Assembly
11.
N/A 1 Chute Crank
Assembly
12.
N/A 1 Literature Pack
13.
06900510 1 Trigger Cable
Assembly (Model
921023)
14.
06100007 1 1/4" x 1-1/2 Oval
Head Machine Screw
(Model 921023)
15.
06305200 1 1/4" Locking Washer
(Model 921023)
16.
02483859 2 Skid Shoe, Reversible
(Models 921029, 032)
17.
06212000 4 Bolt, Round Head
Square Neck .38-16 x
1.00 (Models 921029,
032)
18.
06435900 4 Washer, Flat Steel
.438 x 1.00 x .083
(Models 921029, 032)
19.
06529600 4 Nut, Locking, Center,
.38-16 (Models
921029, 032)
If any of the contents listed are missing
contact your local Ariens dealer. Use only
Ariens approved parts; unapproved parts
may void the unit warranty.

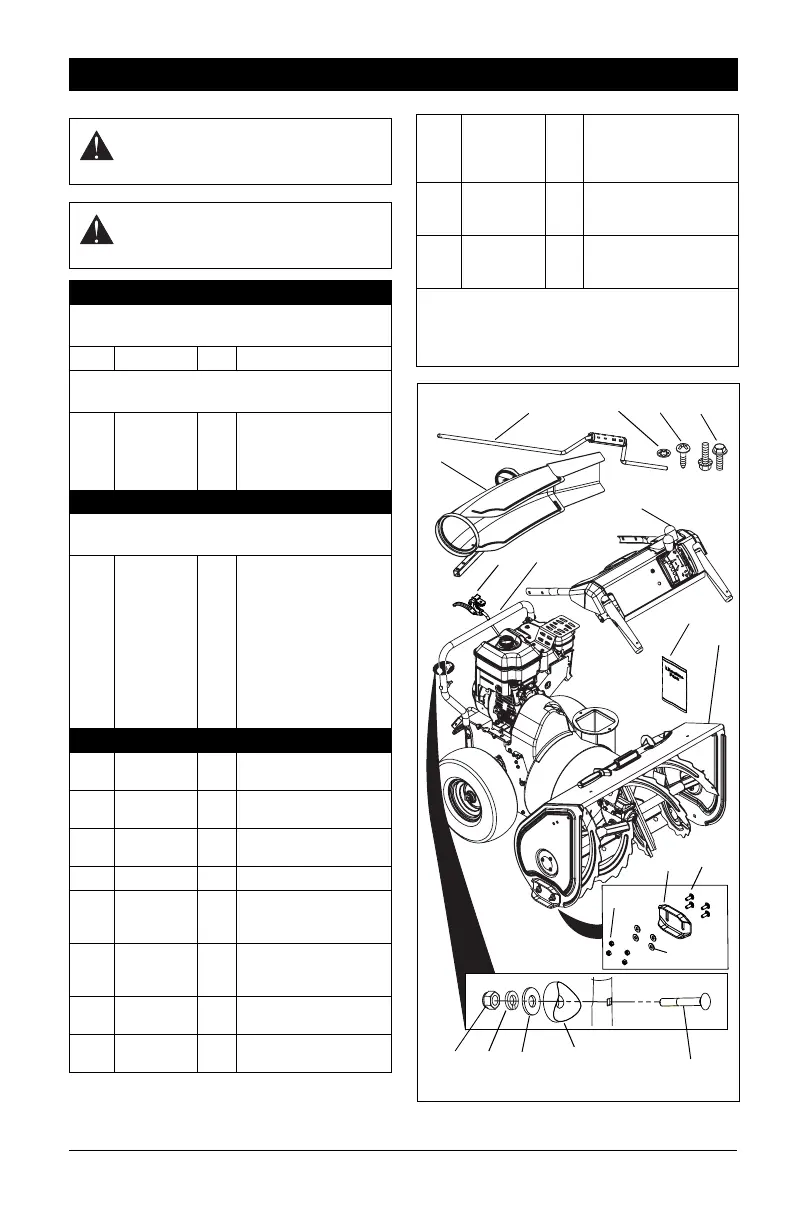

Figure 3
1
3
2
9
10
12
11
4
6
7
8
5
14
15
13
16
17
18
19
