EXHAUST HOSE INSTALLATION
The air exhaust hose and hose inlet must be installed or removed from the portable air conditioner in accordance
with the way it is being used:
COOL, AUTO ,DEHUMIDIFY,HEAT (heat pump type):
The air exhaust hose and hose inlet should be connected to the portable air conditioner
FAN:
The air exhaust hose and hose inlet should be disconnected to the portable air conditioner

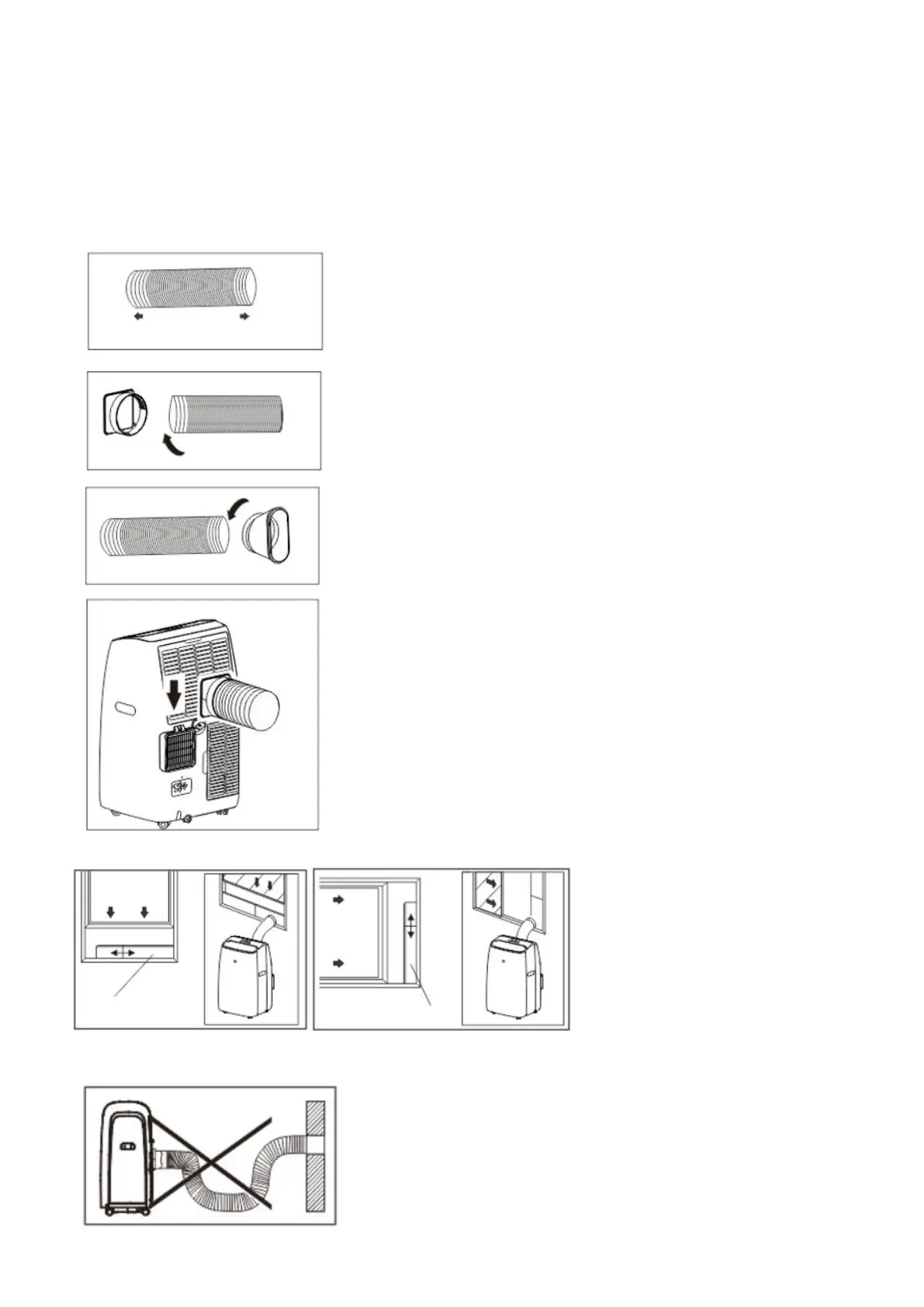

1 .Extend either side of the hose
2. screw the hose inlet
3 .Extend the other side of the hose and screw it to the hose outlet
4 .Install the hose inlet into the unit
5 .Affix the hose outlet into
the window slider kit and seal.
NOTE:The exhaust hose can be compressed or extended
Moderately,but it is desirable to keep the length to a minmum.
Also make sure that the hose does not have any sharp bends.
NOTE:Do not add extension to the exhaust hose(s)!
