3. PROGRAM SELECTOR
4. CONTROL PANEL

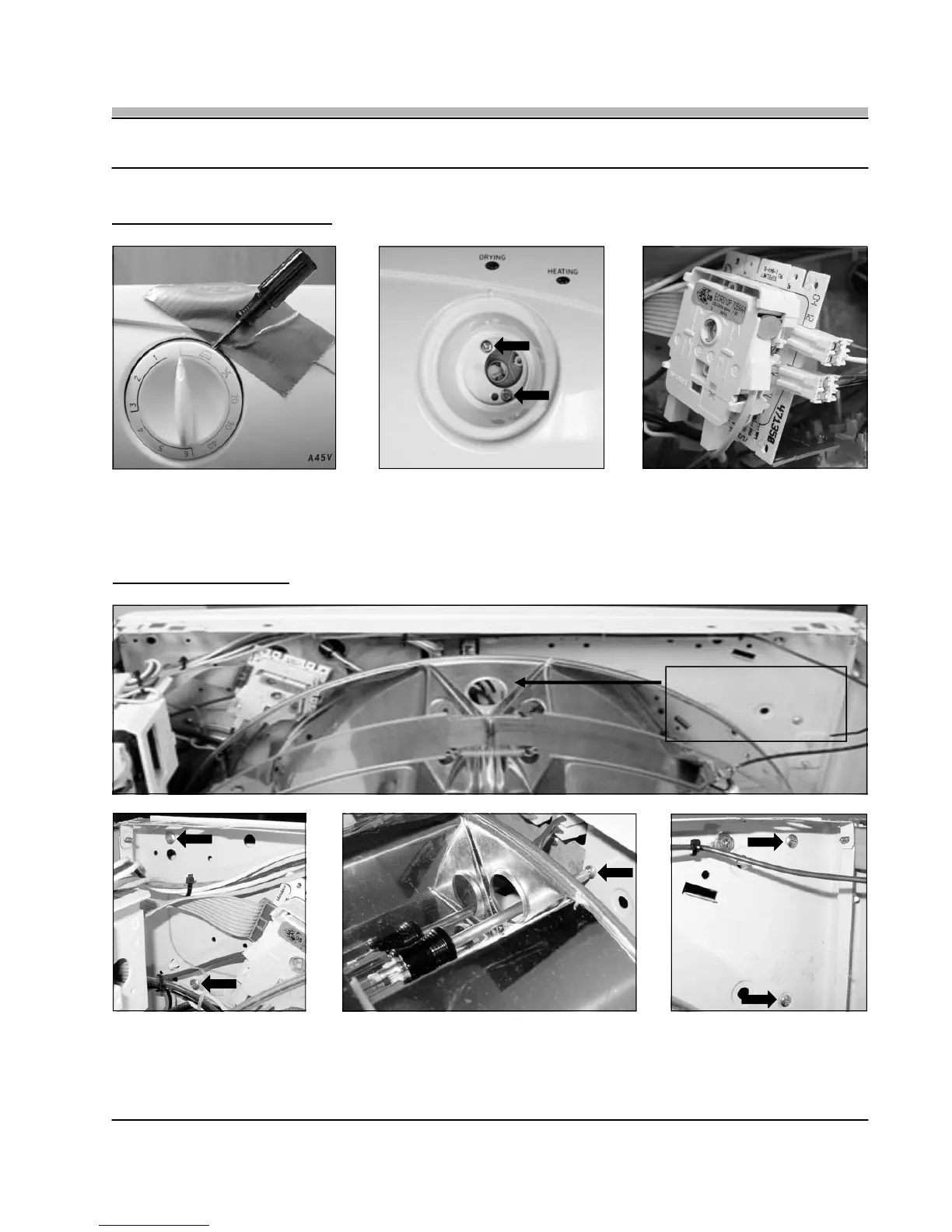

• To remove the Program Selector, first remove the Program Selector Knob by using a small screwdriver to pry it off the Selector
Shaft (Fig. 3-1), remember to mask the area to prevent damaging the Control Panel. With the Program Selector Knob removed,
remove the two (2) Phillips screws (Fig. 3-2). Before removing the Program Selector note the wiring configuration (Fig. 3-3).
Fig. 3-3
Fig. 3-1
Fig. 3-2
• To remove the Control Panel, first remove the Program Selector Knob as described in Section 3. Then remove the five (5) Phillips
Control Panel Mounting Screws (Fig. 4-1). There are two screws located on the right side (Fig. 4-2), two screws located on the left
side (Fig. 4-4) and a single screw located in the middle. To remove the middle screw, rotate the Drum until one of the access holes
lines up with the screw, now place your Phillips Screwdriver into the access well and remove the screw (Fig. 4-3).
Fig. 4-1
Fig. 4-4 Fig. 4-3
Fig. 4-2
Note: Alignment of the
Drum and the Screw
Access Hole.
