Training manual CLAS X
Pag. 7 di 69

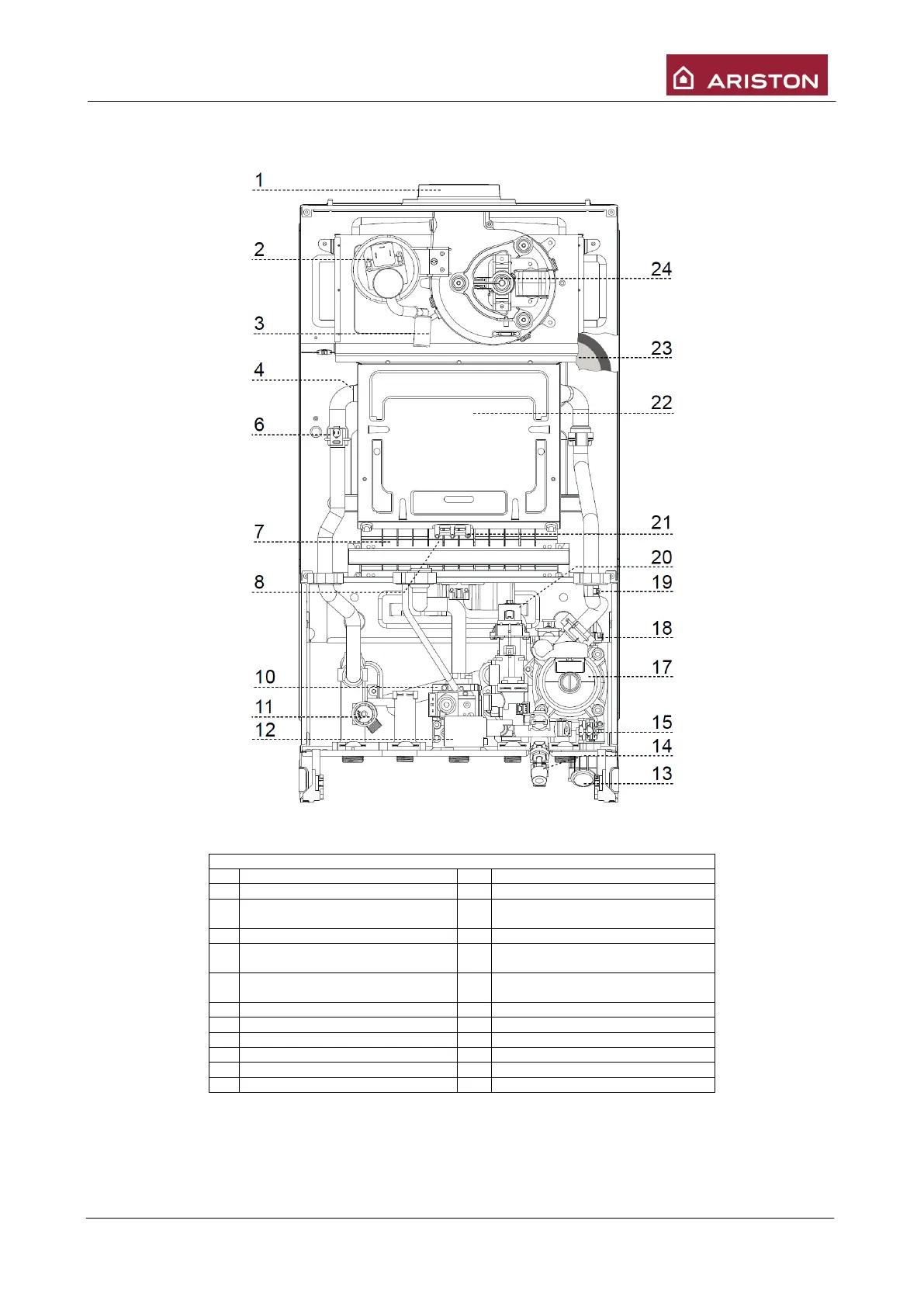

1.3 SEALED CHAMBER OVERALL VIEW (FF - SYSTEM)
CAPTION
1
Flue connector
14
Filling Tap
2
Air pressure switch
15
CH Filter
3
Air pressure switch pressure intake
condensate exhaust
16
Sanitary flow switch
4
Main Heat Exchanger
17
Pump
6
NTC1 heating delivery temperature
probe
18
Heating minimum pressure switch
7
Burner
19
NTC2 heating return temperature
probe
8
Ignition electrodes
20
3 Way Valve
9
Secondary Heat Exchanger
21
Detection electrode
10
Gas valve
22
Combustion Chamber
11
3 bar safety valve
23
Expansion Vessel
12
Spark generator
24
Fan
13
Pressure gauge
