MAINTENANCE GUIDE
MAINTENANCE GUIDE: GENUS PREMIUM

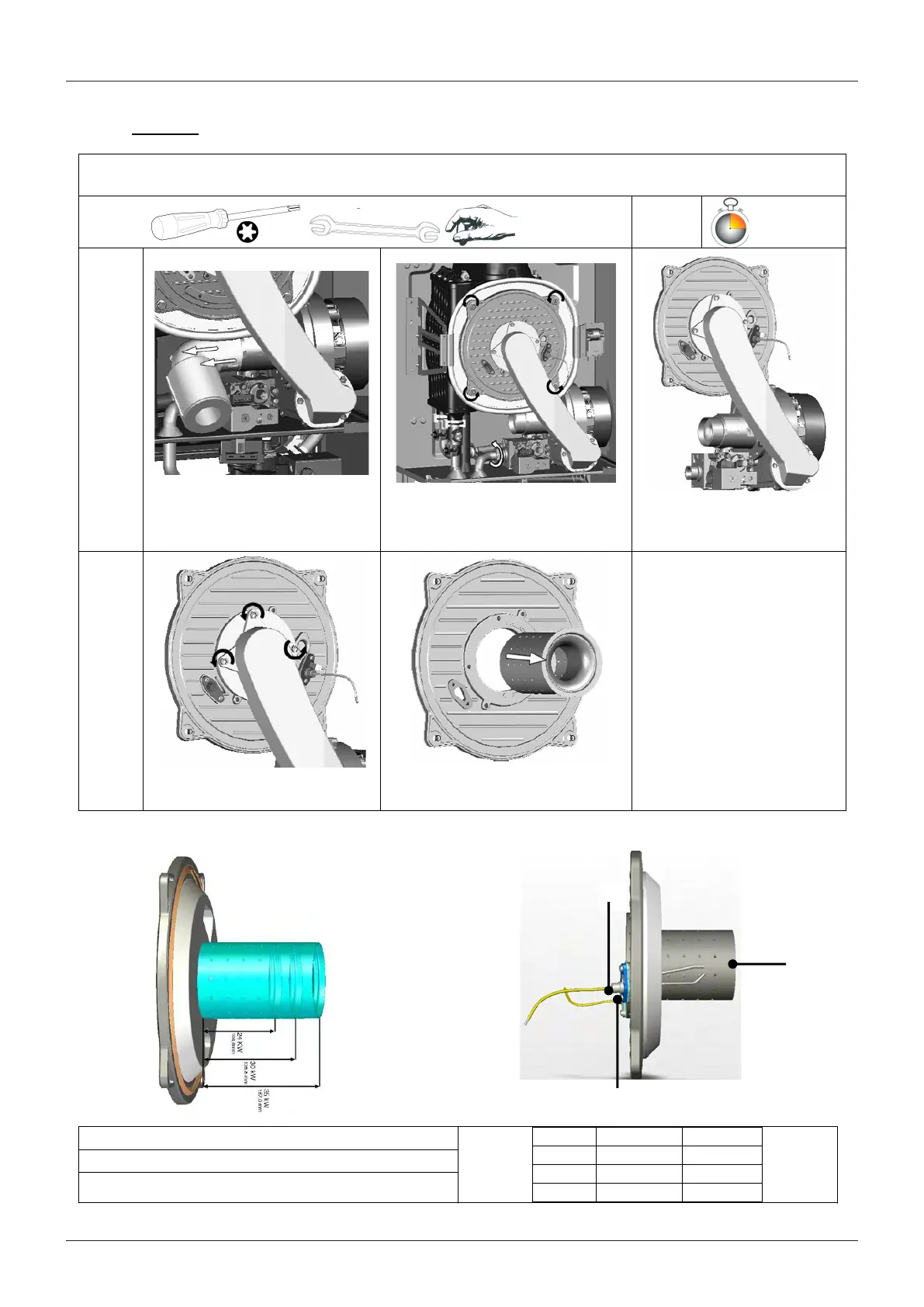

4.3 BURNER
BURNER
1. Stainless Steel Burner
2. Ignition electrode
3. Detection electrode
Power Length Venturi
24 KW 104.6 mm Ø 42 mm
30 KW 135.8 mm /
38 KW 167 mm /
Tools
Time
15 min
1
Isolate the gas supply. Remove the
four screws and disconnect the
gas pipe from the gas valve
Pull the assembly towards
you
Remove the silencer
2
Remove the three screws to free
the burner door
Pull the burner toward you
1
3
2
