Ariston CLAS X - 4.10 PRIMARY HEAT EXCHANGER

Training manual CLAS X
Pag. 35 di 69

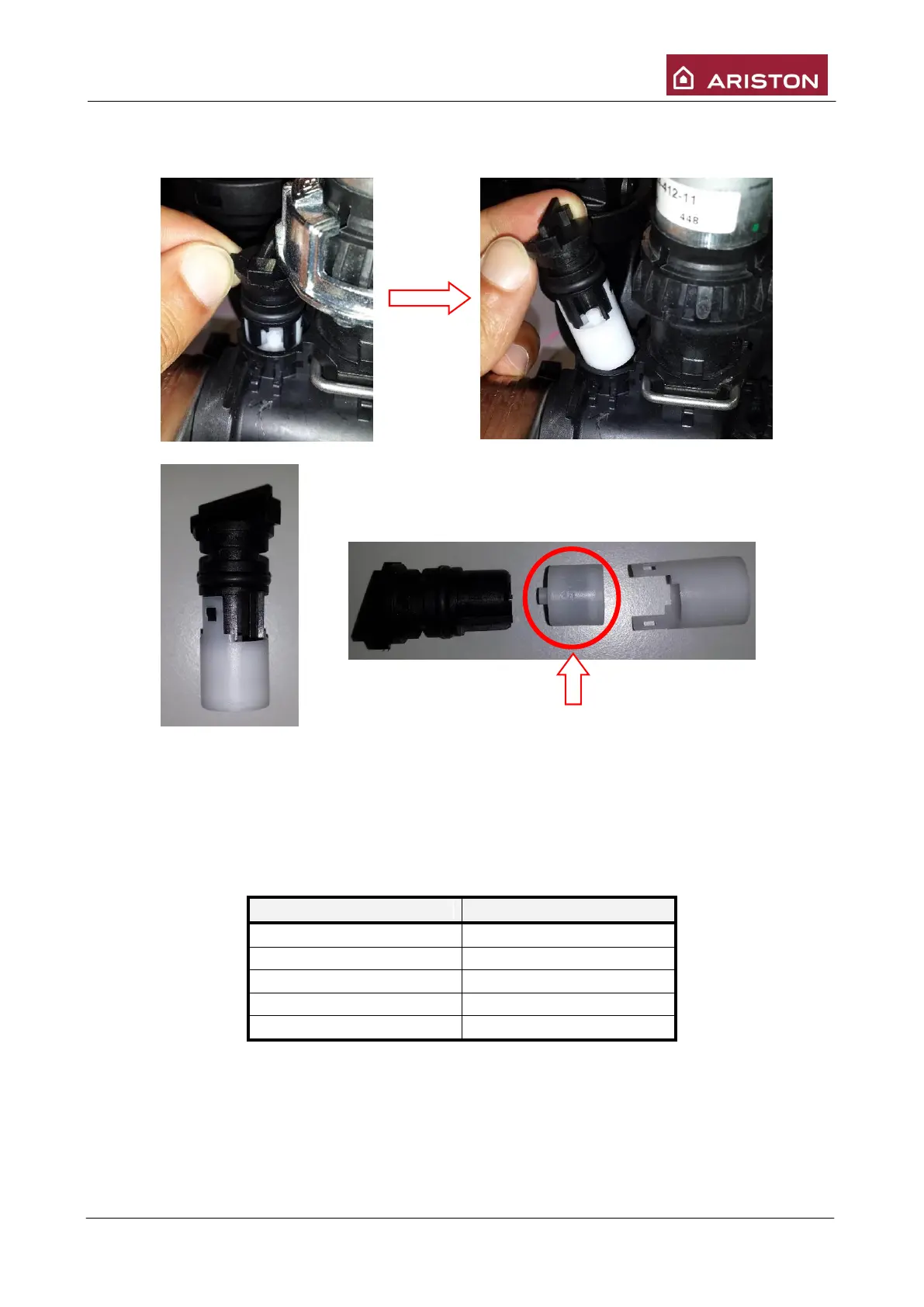

In the Combi boiler to remove the by-pass it needs to remove before the ring that fix the 3 way valve motor.
4.10 PRIMARY HEAT EXCHANGER
The heat exchanger transmits heat of the combustion products to the primary circuit water.
Model
Dimensions
24 and 15 kW CF
260 x 180 mm
28 kW CF
300 x 180 mm
24 and 15 kW FF
220 x 180 mm
28 kW FF
260 x 180 mm
32 kW FF
300 x 180 mm
By-pass
