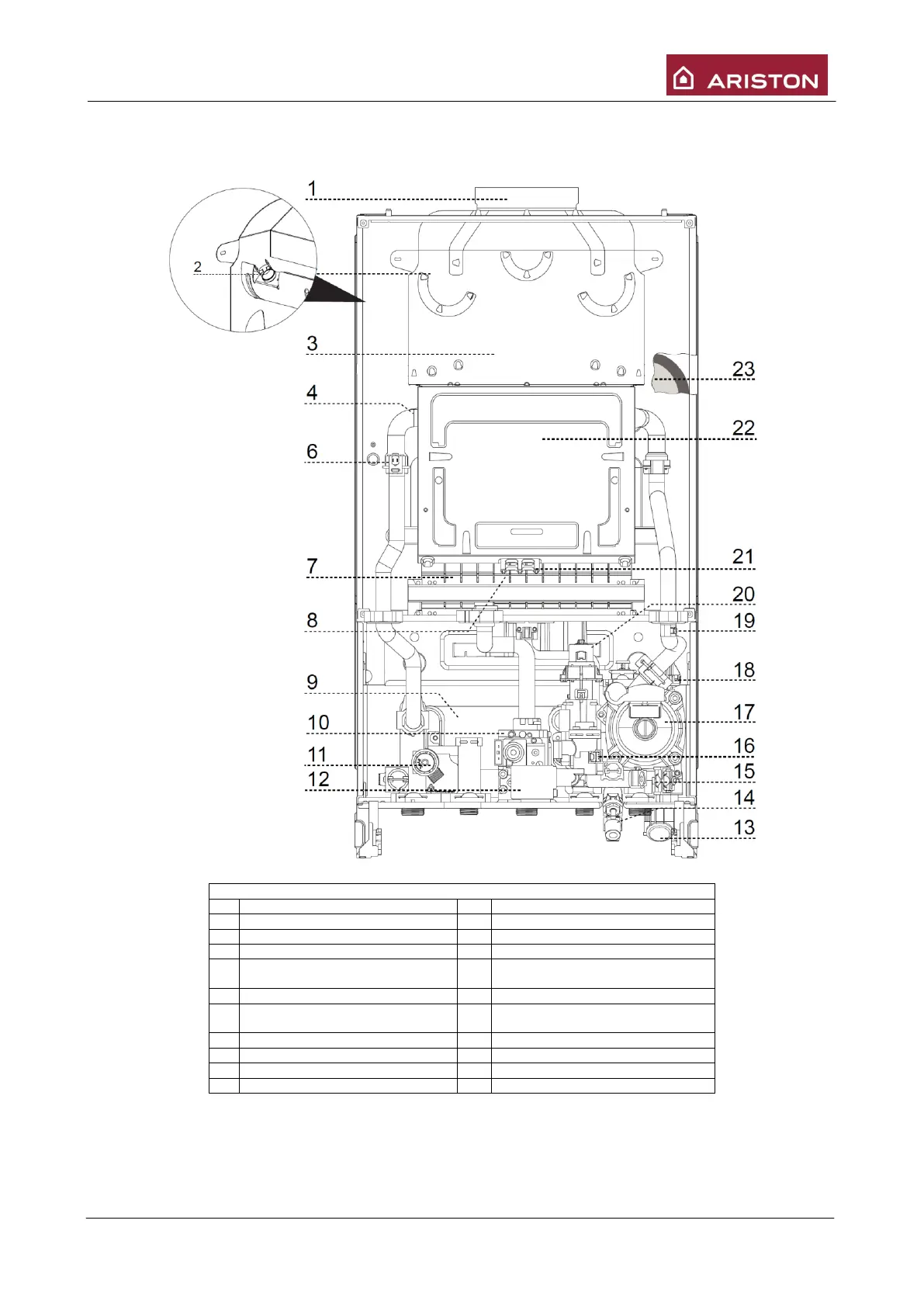

1.4 OPEN CHAMBER ASSEMBLY VIEW (CF)
LEGENDA
1
Flue Manifold
13
Pressure gauge
2
Flue Control Thermostat
14
Filling Tap
3
Flue Hood
15
CH Filter
4
Main Heat exchanger
16
Sanitary flow switch
6
NTC1heating delivery temperature
probe
17
Pump
7
Burner
18
Minimum pressure switch
8
Ignition electrodes
19
NTC2 heating return temperature
probe
9
Secondary Heat Exchanger
20
3 Way Valve
10
Spark generator
21
Detection electrode
11
3 bar safety valve
22
Combustion Chamber
12
Gas valve
23
Expansion Vessel
