Ariston E-Combi 24

20
installation

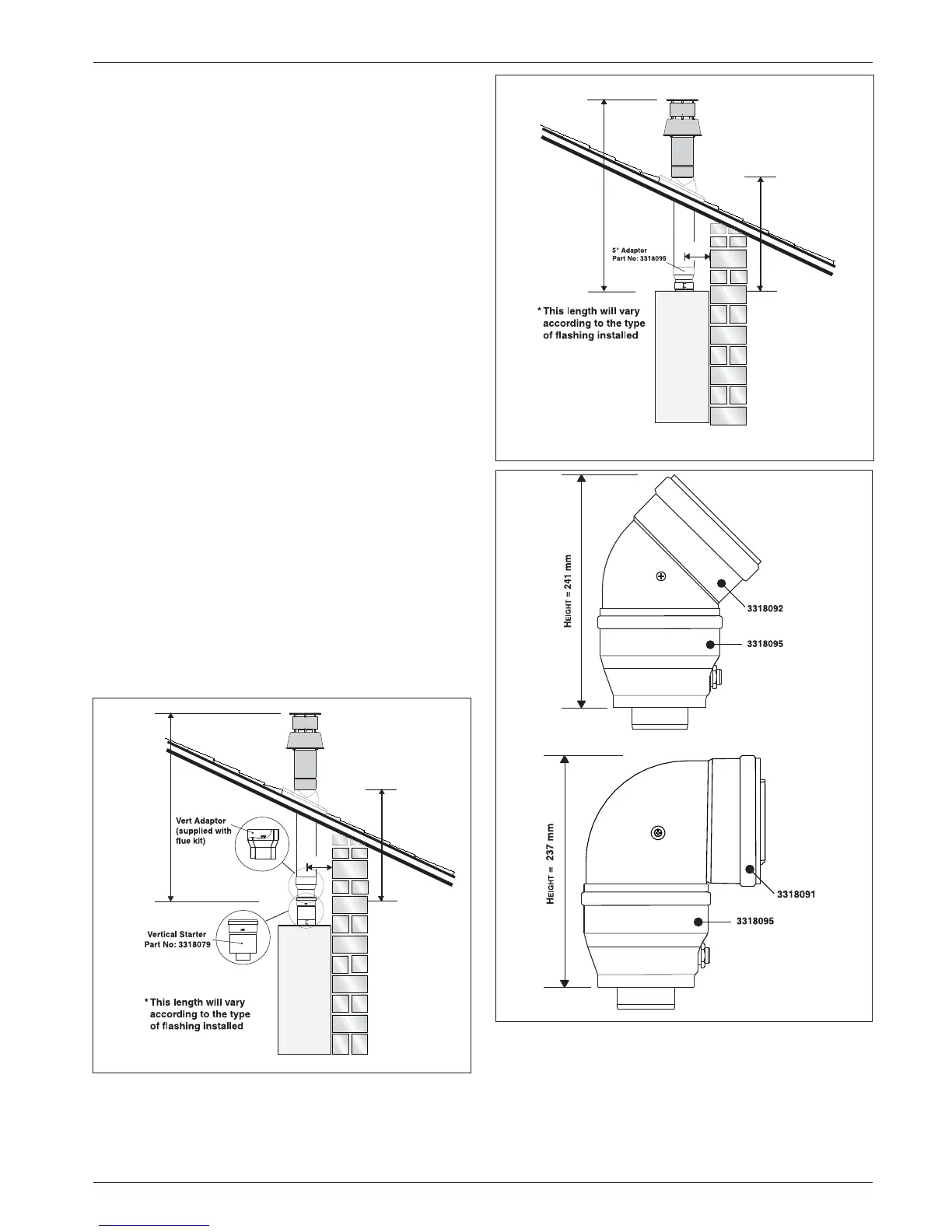

Once the boiler has been positioned on the wall, it is necessary to in-
sert the Ø80/125 adaptor (Fig. 5) for both horizontal and vertical  ue
runs into the boiler  ue socket (not supplied with  ue kit - Part No
3318095).
Push the adaptor onto the boiler’s  ue connection, grease the seals
then add extensions or elbows as required, secure the adaptor, using
the clamp and screws provided.
To  t extensions or elbows it is  rst necessary to ensure that the lip
seal is  tted correctly into the inner  ue, once veri ed, it is simply ne-
cessary to push them together, no clamps are necessary to secure the
 ue components.
Before proceeding to  t the  ue, ensure that the maximum  ue leng-
th has not been exceeded (see the tables) and that all elbows and
bends have been taken into consideration. For each additional 90° el-
bow 1 metre must be subtracted from the maximum  ue length, and
for each 45° 0.5 metres must be subtracted from the maximum  ue
length (the height of the vertical adaptor and a 45° bend can be seen
in Fig.6 and a 90° bend in Fig. 7).
Note: DO NOT cut the vertical  ue kit.
180 mm
Total length of
vertical kit 1240 mm
Useable length of
vertical ue 575 mm*
Fig. 5
Fig. 6
Fitting the 5” Flue (Ø 80 / 125 Horizontal/vertical)
Fitting the Coaxial Flue (Ø 60 / 100 Vertical)
Note: See table for maximum and minimum  ue runs.
Contents:
1x Silicone O-Ring (60mm)
1x Conical Adaptor (60/100mm)
1x Vertical Flue Kit (80/125mm)
3x Screws
The vertical  ue kit is supplied with a specially designed weather
proof terminal  tted, which can be used either with a  at roof or a
pitched roof.
The vertical  ue kits useable lengths with the pitched roof  ashings
are indicated in Fig. 7.
180 mm
Total length
of Vertical Kit
1355 mm
Useable length
of Vertical ue
690 mm*
Fig. 7
