maintenance guide
36
Tools
Time
7 min
1

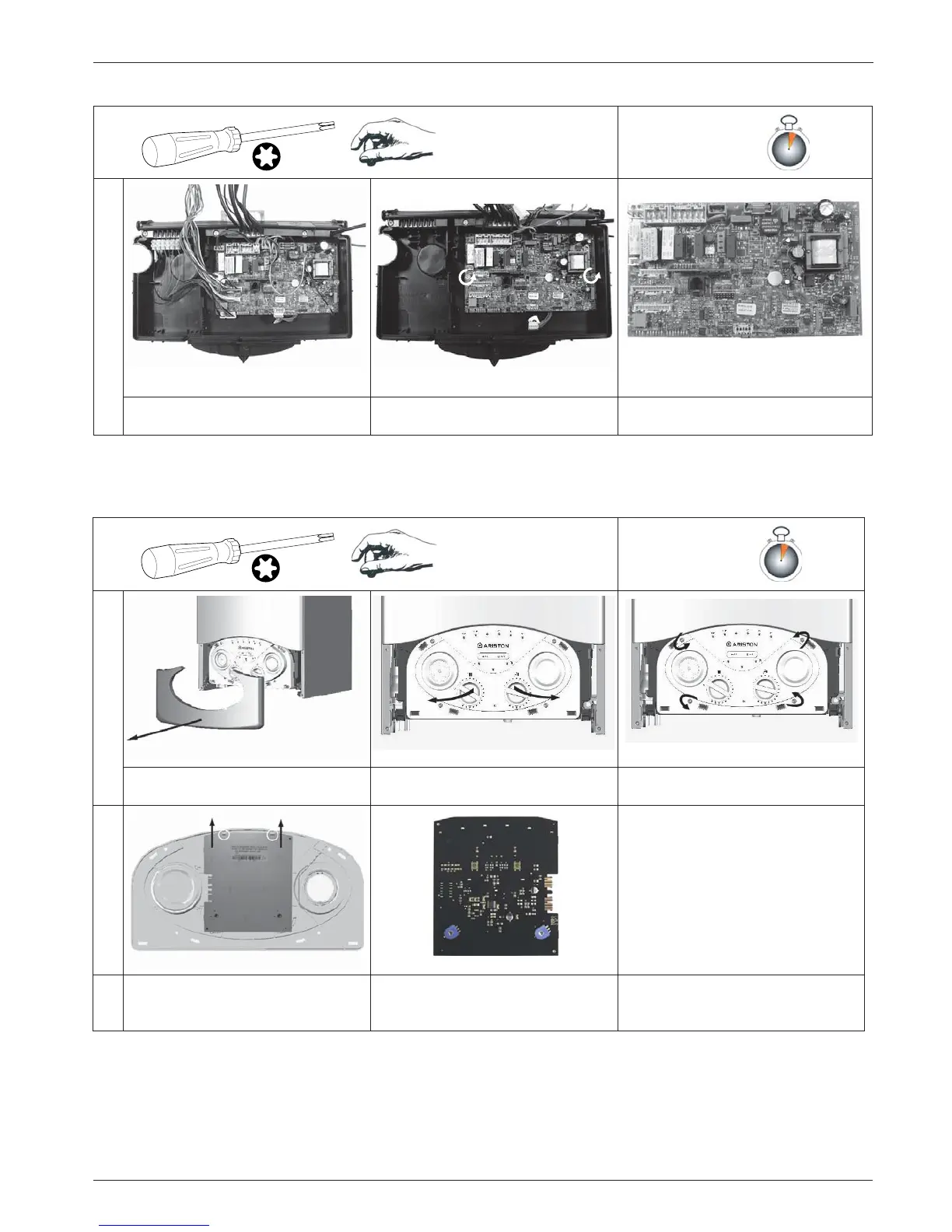

Unclip the cover to remove Remove the two control knobs Unscrew the four screws and pull the
assembly towards you
2
Disconnect the electrical plug connectors,
unlock the two clamps, and remove the
PCB
Tools
Time
7 min
1
After opening the control boz, disconnect
the electrical plug connectors
Unscrew the two screwa and remove the
PCB
Main P.C.B.
Display P.C.B.
