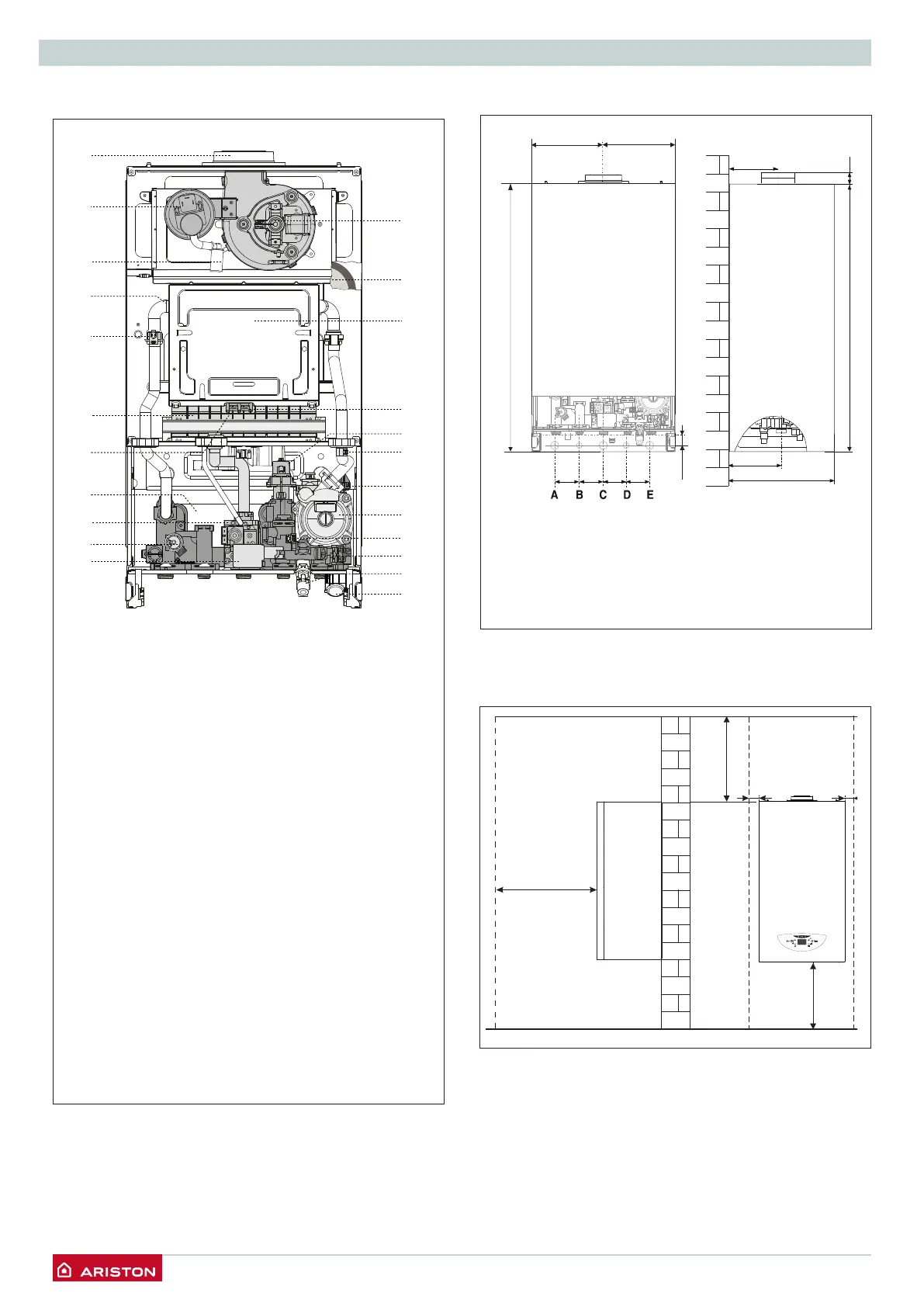

PRODUCT DESCRIPTION
Legend
1. Flue connector
2. Air pressure switch
3. Condensate discharge
4. Main Heat Exchanger
6. C.H. Flow temperature probe
7. Burner
8. Ignition electrodes
9. Secondary heat exchanger
10. Gas valve
11. Safety valve (3 bar)
12. Spark generator
13. Pressure gauge
14. Filling valve
15. C.H. circuit lter
16. D.H.W. Flow meter
17. Circulation Pump with air release valve
18. Switch On/Off
19. C.H. Return temperature probe
20. Diverter valve
21. Detection Electrode
22. Combustion Chamber
23. Expansion vessel
24. Fan
Overall view
1
2
3
6
7
9
10
11
12
14
13
17
18
19
20
22
23
24
8
4
21
15
16
Overall Dimensions
Minimum clearances
In order to allow easy access to the boiler for maintenance
operations, The boiler must be installed in accordance with the
clearances stated below.
A. Central Heating Flow
B. Domestic Hot Water Outlet
C. Gas Inlet
D. Domestic Cold Water Inlet
E. Central Heating Return
450
053
003
50 50
150
315
180
25745
28
745
200 200
65 6567 67
