Ariston microGENUS HE 24 MFFI - REMOVING THE RECUPERATOR

48

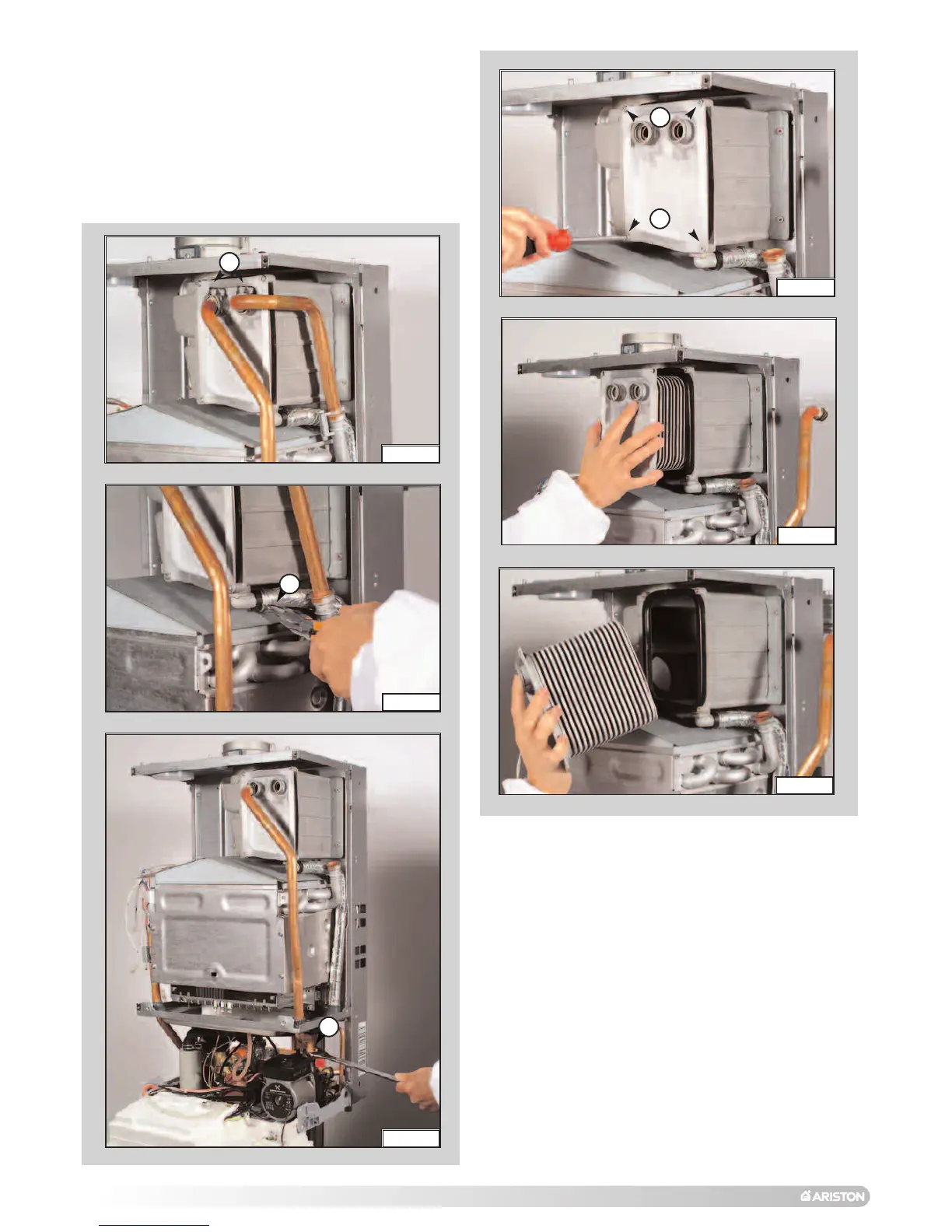

1. Remove the U-clips “U” (FIG.6.30);
2. Remove the clamp “V” to disconnect the condensate
trap tube (FIG.6.31);
3. Loosen the nut “W” (FI
G
.6.32);
4
.
R
emove the four screws “X” (F
IG.
6.33);
5. Remove the recuperator (FIG.6.34 - 6.35);
6. Reassembled in reverse order.
6.3.8 Removing the Recuperator
FIG.
6.32
FI
G
. 6.33
FIG. 6.31
V
W
FI
G
. 6.30
U
X
X
FI
G
. 6.34
FIG. 6.35
