1.5.6 Removing the overheat thermostat

1. Disconnect the overheat thermostat electrical

connections “K1” (F

IG. 1.48);

2. Then remove the thermostat from its mounting by

releasing the securing clip (F

IG. 1.49).

1.5.7 Removing the frost thermostat

1. Disconnect the frost thermostat electrical connection

“L1” (F

IG. 1.50);

2. Then remove the thermostat from its mounting by

releasing the securing clip (F

IG. 1.51).

1.5.8 Removing the regulation thermostat

1. Remove the regulation thermostat sensor from its

mounting by releasing the securing clip “M1” (F

IG. 1.52);

2. Separate the facia panel from the rear of the control

panel (see section 1.6.2);

3. Remove the electrical connections “N1 from the

regulation thermostat (F

IG. 1.53);

4. Pull the regulation knob from the spindle of the

thermostat;

5. Remove the thermostat from the control panel facia by

unscrewing the mounting screws.

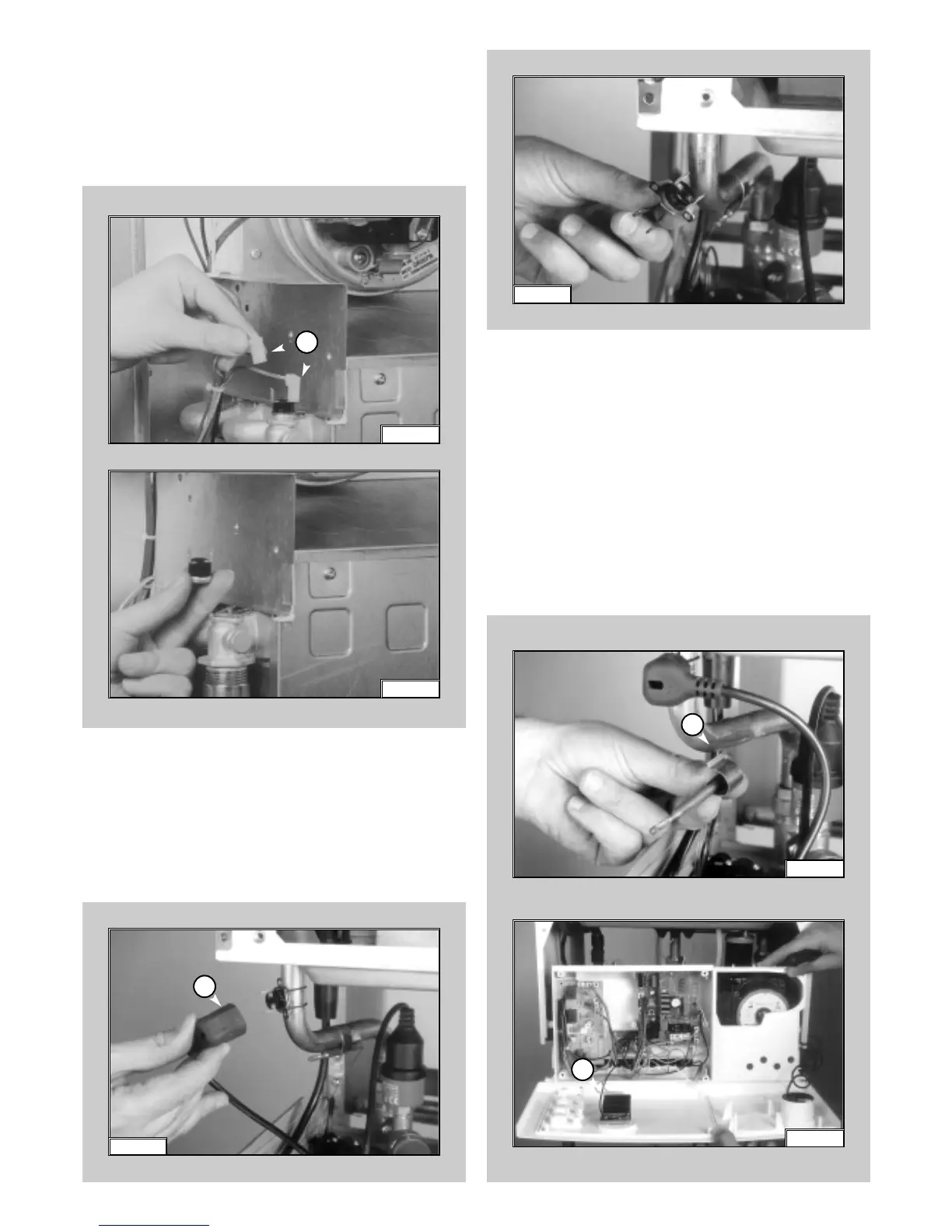

FIG. 1.48

FIG. 1.49

IG. 1.52

FIG. 1.51

FIG. 1.50

FIG. 1.53
