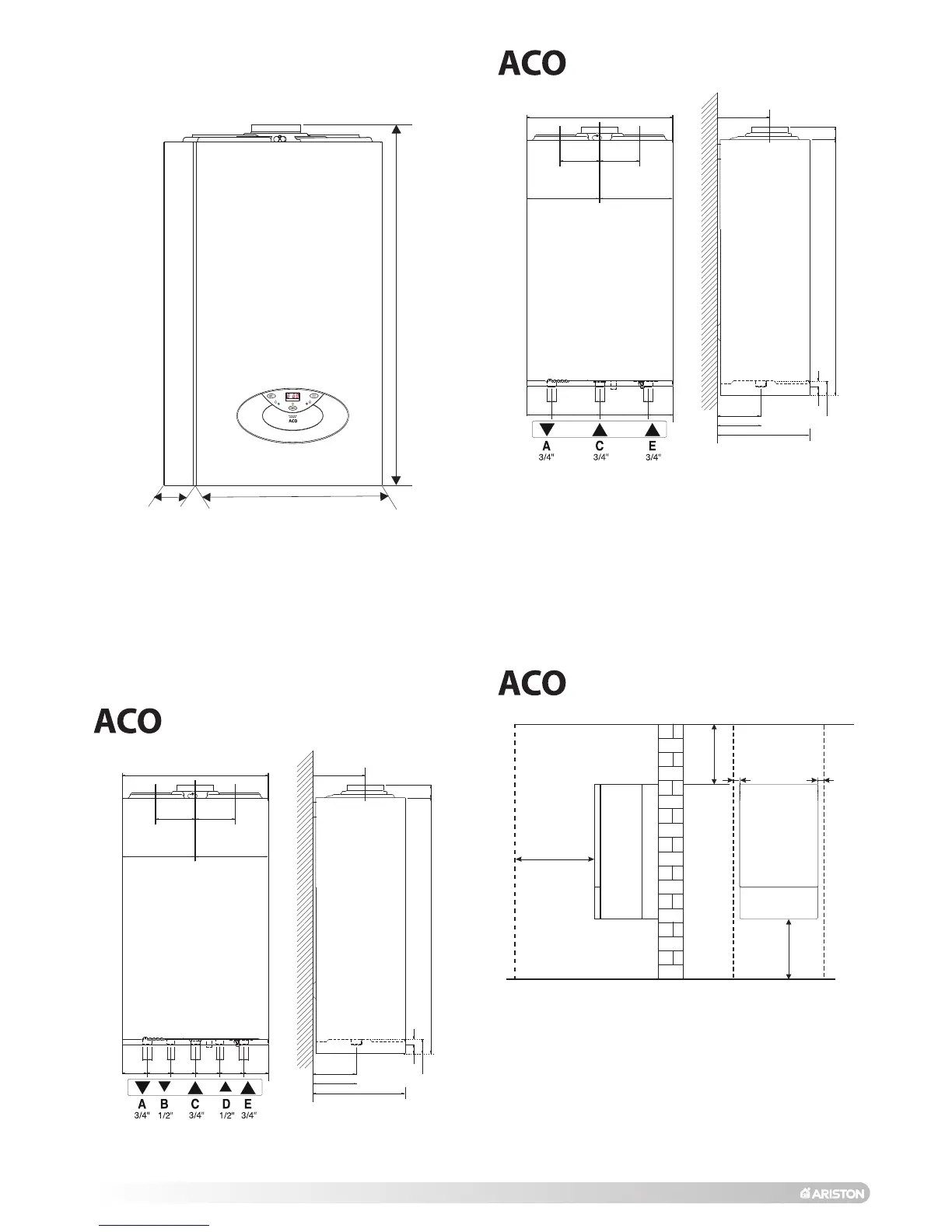

2.3. OVERALL DIMENSIONS
In order to allow access to the interior of the boiler for maintenance
purposes, the boiler must be installed in compliance with the
clearance requirements indicated in the diagram below.
2.4. MINIMUM CLEARANCES
93 65
450 143
118
123
750
5
45
50
35
67 67 65 93
acqua
gas
280
225 225
130 130
F
LEGEND:
A = Central Heating Flow (3/4”)
B = Domestic Hot Water Outlet (1/2”)
C = Gas Inlet (3/4”)
D = Domestic Cold Water Inlet (1/2”)
E = Central Heating Return (3/4”)
F = Condensate discharge
785
280
450
27/32 MFFI
300
300
450
20
20
27/32 MFFI
FIG. 2.0
F
IG. 2.1
93
450
143
118
123
750
5
45
50
35
132132 93
acqua
gas
280
225 225
130 130
F
27/32 RFFI SYSTEM
FIG. 2.1
FIG. 2.2
