2000 SERIES SENSORS INSTALLATION GUIDE Revision 3.1 June 1997
2.2.5 7-Segment Indication
The 207X models have a 7-segment display. The information displayed depends on the
panel the sensors are connected to.
When the 2000 Series Sensors are being installed with the Aritech FP2000 Fire Panel,
the following indications are available:

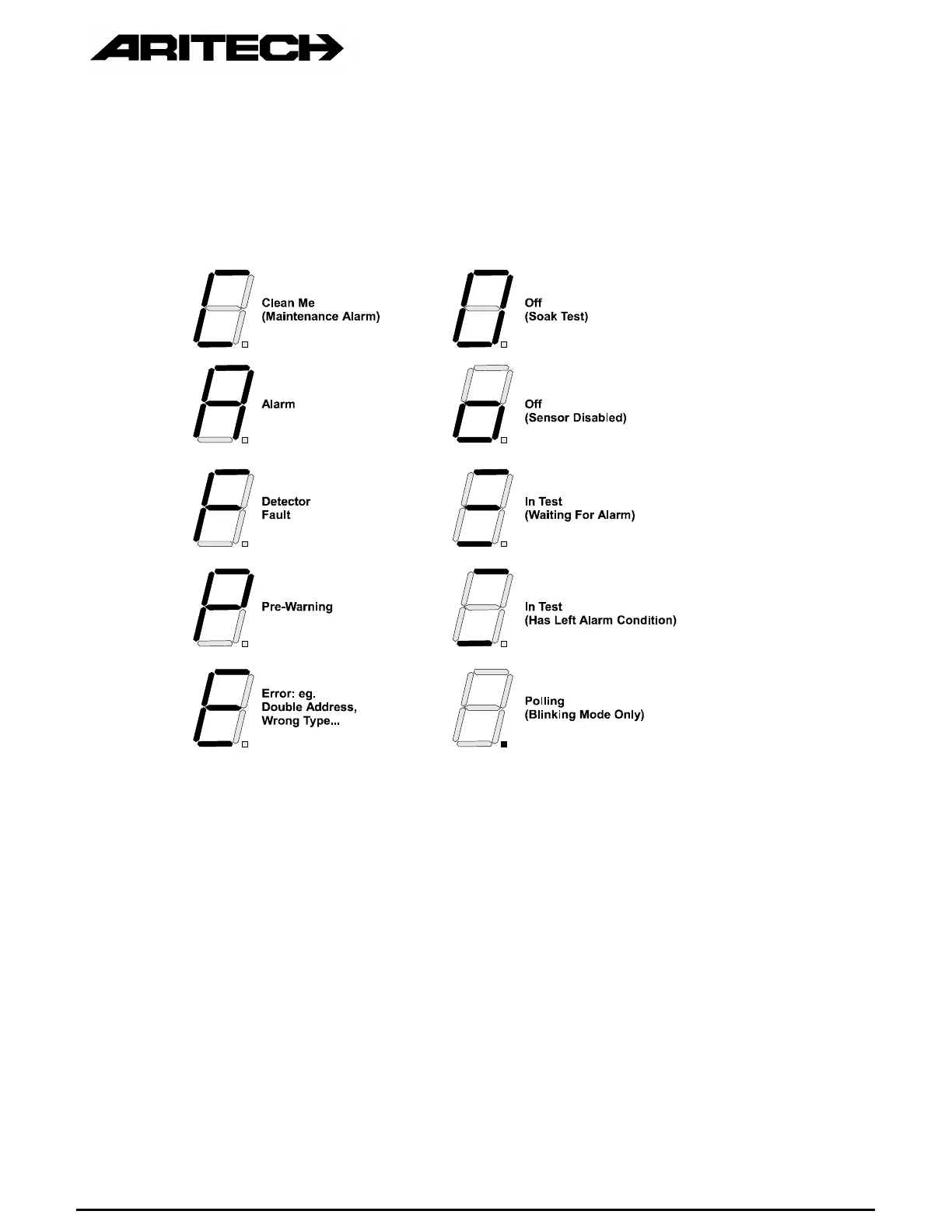

Figure 7 : Indications on 7-Segment Display
