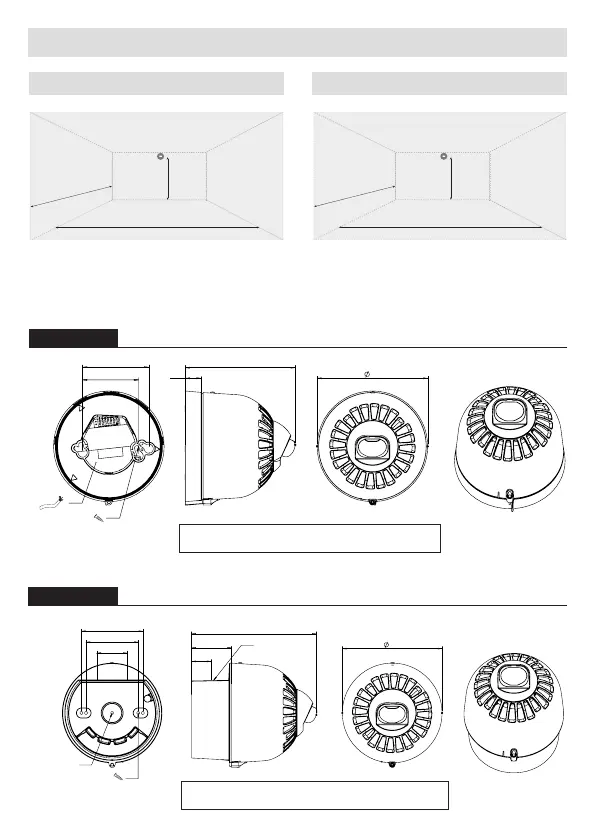

Aritech 2000 Series - Wall Mount EN54-23 Coverage; White Flash Coverage; Red Flash Coverage; Shallow Base Dimensions

Wall Mount - EN54-23 Coverage
11.3m
11.3m
3.1m
Shallow Base
Deep Base
7.49m
7.49m
3m
White Flash: W-3.1-11.3 Red Flash: W-3-7.49
14
100
51
60
Cable Entry
4.2 Fixing Holes
100
EN: Ensure the lens of the device is pointing to the oor.
FR: Assurez-vous que la lentille est dirigée vers le sol.
M4
19
39
122
M20 Drill out
gland hole for
side cable entry
51
60
30
4.5mm Fixing Holes
M20 Drill out
gland hole for
rear cable entry
97.5
EN: Ensure the lens of the device is pointing to the oor.
FR: Assurez-vous que la lentille est dirigée vers le sol.
M20
M4
M20
