4.7. Connecting a USB Printer
An optional graphics capable printer is available from AZI (AZI P/N: Y990-0212). The
printer connects to the USB Type A / Host port (marked USB) on the back panel. Test
Programs, Test Results and graphs, and calibrations can be printed. The reports can be
custom configured through the menu system. Please refer to the manual for guidance on
directing these same reports to a computer.
To set up the printer:
• Unpack the printer and cable.
• Load the ink cartridges and paper according to the printer instruction manual.
• Make sure the MAX
®
4000 is turned OFF, then plug the USB Type B square connector
of the printer cable into the printer’s mating socket and the Type A rectangular
connector of the cable into the MAX
®
4000’s mating socket (marked USB). If other
USB devices are being used, a USB hub is needed to connect multiple devices to the
MAX
®
4000.
• Plug the power cord into the printer,
and into a GROUNDED power
receptacle.
• Turn on the printer.
• Turn on the MAX
®
4000.

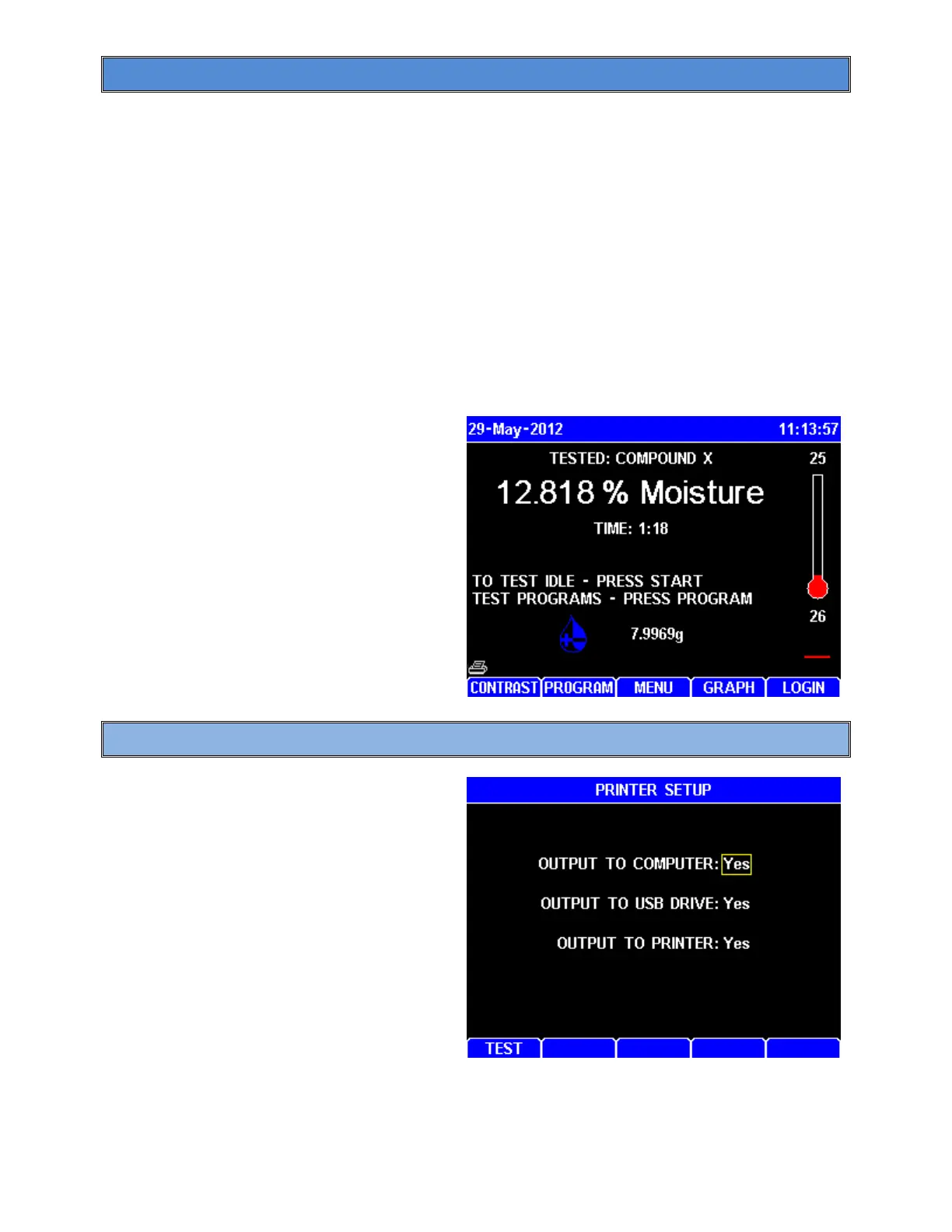

• When the printer is connected, the
printer icon will appear in the bottom
left corner of the main screen, above
the CONTRAST soft key.
4.7.1 Printer Setup
Follow these steps to configure the MAX
®
4000 for printer use.
To get here, start by pressing the [MENU]
soft key from the Main Test screen, then
select:
SETUP MENUPRINTER SETUP
PRINTER SETUP allows the
configuration of data output to a
computer, printer or USB drive. Graphics
are not sent to the computer or USB
drive, only to the printer.
The following options are available:
• OUTPUT TO COMPUTER enables reporting to both the RS232 and the USB
computer ports. See the manual for information on output to a computer.
To Next Page
