Arjo KWIKtrak - How to Use the Kwiktrak Gate; Crossing the Gate

001-11502-EN rev. 10
How to use the KWIKtrak Gate 9
Crossing the Gate
WARNING:
If you see the warning symbol appearing at the
end of the track, and the mobile track is not aligned
ZLWKWKH¿[HGWUDFNDO NOT use the gate system.
8VLQJWKHJDWHZKHQWKHZDUQLQJV\PERO
is visible could lead to a patient fall.
Contact Arjo for assistance.
•

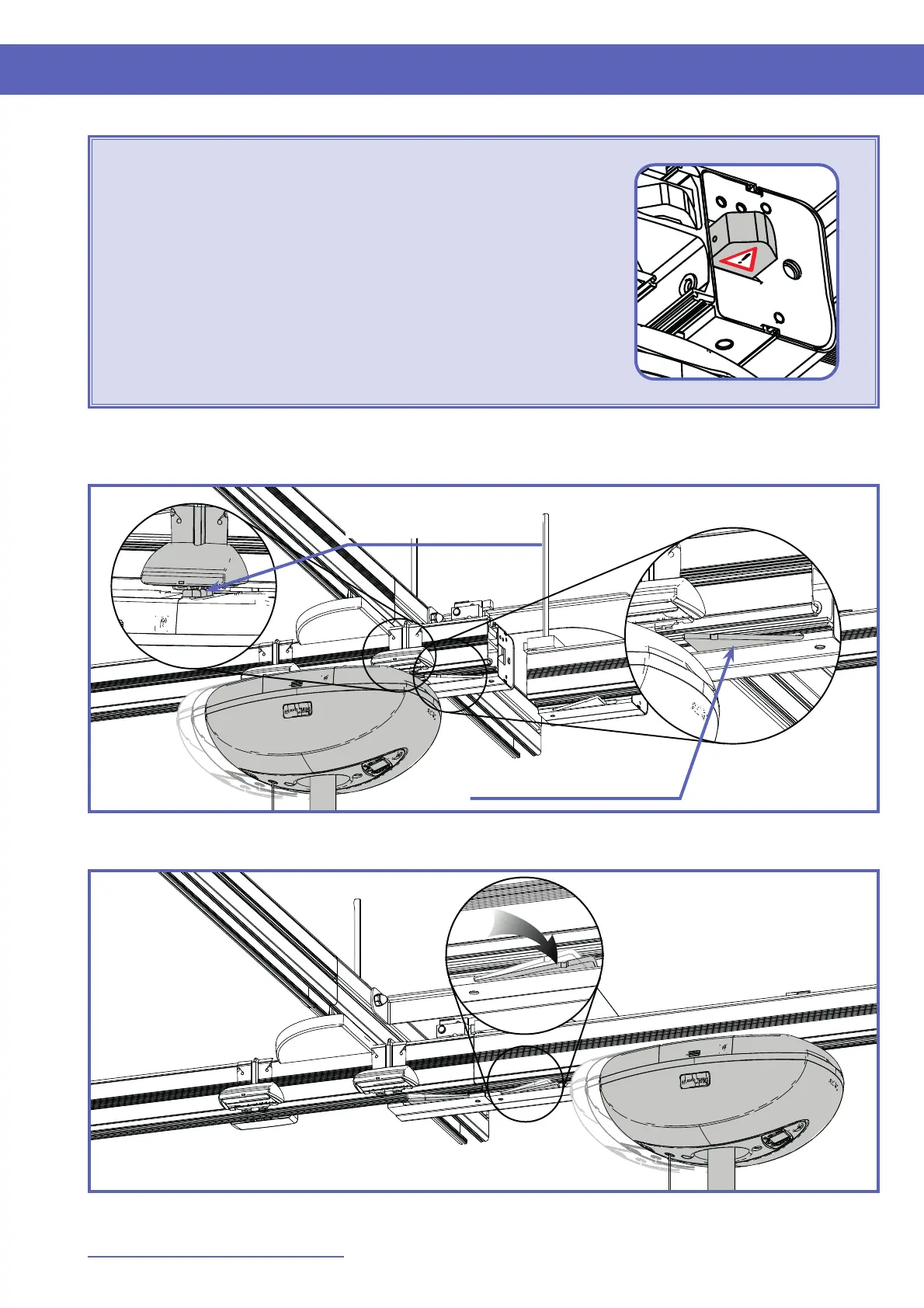

Using the Gate System
1) With the ceiling lift turned on, move it to the activation station next to the gate stopper.
Fig. 2
Contacts aligned with
activation Station
Gate stopper deployed
2) $OLJQWKHPRELOHWUDFNZLWKWKH¿[HGWUDFN7KHJDWHZLOOFODPSERWKWUDFNVWRJHWKHUDQGWKH
gate stopper will retract allowing the lift to pass through the gate.
Fig. 3
3) 0RYHWKHFHLOLQJOLIWRQWRWKH¿[HGWUDFN
