3. ELECTRONIC CONTROL DEVICES - Continued
3.2 Attendant Control Panel (ACP) – Lock Out Box

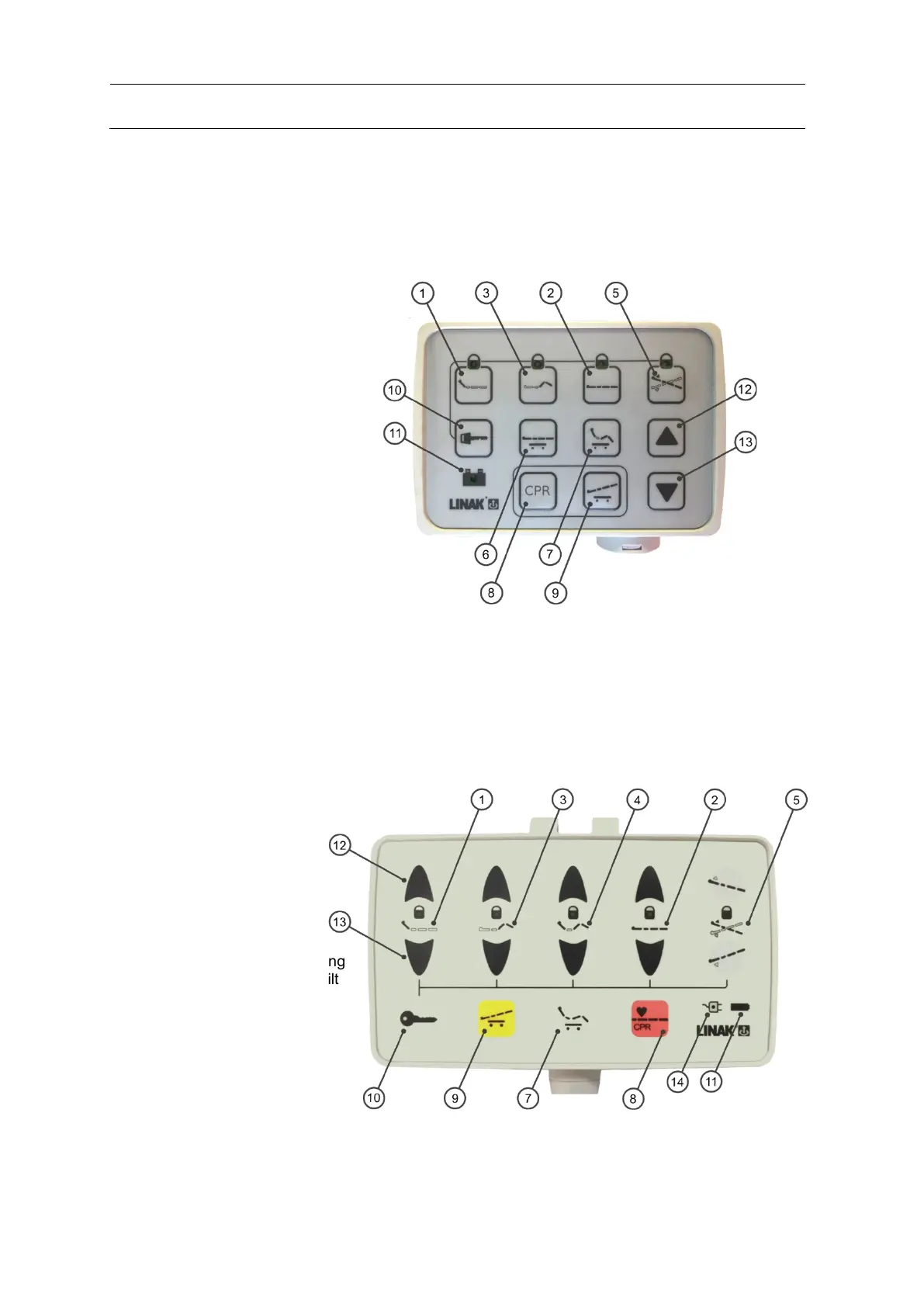

The Attendant Control Panel (ACP) is a fixed unit at the foot end of the bed which can be
used to operate the beds functions. The function of the ACP is to lock out and prevent
unauthorised operation of the beds main functions. The ACP is located at the foot end of
the bed.
1) Backrest
2) Hi-Low Bed Height
3) Knee Break
5) Trendelenburg Tilt
6) Bed Levelling
7) Chair Positioning
8) CPR Emergency Positioning
9) Emergency Head Down Tilt
10) Lock Out Function
11) Battery Charging
12) Function UP
13) Function DOWN
3.3 Attendant Control OpenBus Mini Panel (ACOM) – Lock Out Box
The Attendant Control OpenBus Mini (ACOM) is a highly functional control unit that is used
in a similar way to a handset. The coiled cable allows for freedom of movement around the
perimeter of the bed and can be hooked over the head, foot and side panels of the bed
when not in use. It is also a lock out device preventing unauthorised operation of the beds
main functions.
1) Backrest
2) Hi-Low Bed Height
3) Knee Break
4) Auto Contour
5) Trendelenburg Tilt
7) Chair Positioning
8) CPR Emergency Positioning
9) Emergency Head Down Tilt
10) Lock Out Function
11) Battery Charging
12) Function UP
13) Function DOWN
14) Power Plugged In
