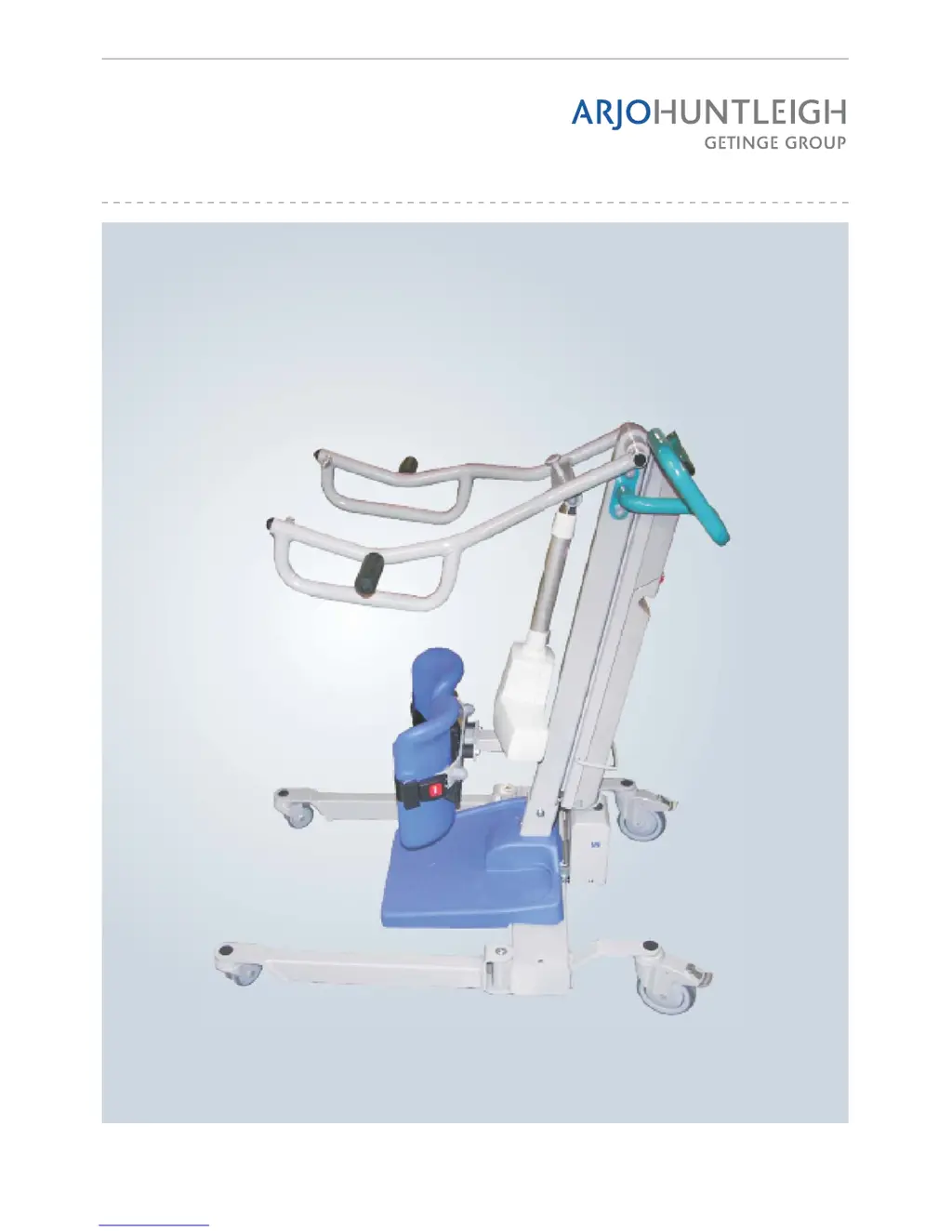

Arjohuntleigh Sara 3000

Other manuals for Arjohuntleigh Sara 3000

Instructions For Use76 pages

Questions and Answers

T
thomas52Aug 19, 2025
What to do if Arjohuntleigh Medical Equipment Sara 3000 hoist moves unexpectedly?
- L
  Leah SimsAug 19, 2025
  If the Arjohuntleigh Sara 3000 hoist moves unexpectedly, and releasing the buttons doesn't stop it, immediately push the red Emergency Stop button and remove the battery. Then, use the System Failure Lowering Override to safely seat the patient before removing the hoist from use. Ensure a qualified technician inspects and approves the Sara 3000 before it is used again. This is likely due to a faulty hand control, push buttons, or electronics.
M
Molly WrightAug 21, 2025
What to do if Arjohuntleigh Medical Equipment Sara 3000 overload displays when raising?
- P
  parkerchristopherAug 21, 2025
  If, while pressing the Raise button, the Sara 3000 displays 'overload' on the LCD, beeps continuously, and the resident support arms do not move, it indicates that an obstruction is blocking the resident support arms. Remove the obstruction and carefully check for any damage before continuing. If unsure, use the System Failure Lowering Override to return the resident to a safe seated position. Do not reuse the Sara 3000 until a qualified technician inspects and approves it.
S
Sarah RiveraAug 23, 2025
What to do if Arjohuntleigh Medical Equipment Sara 3000 overload displays when opening chassis legs?
- B
  Brandon OlsonAug 25, 2025
  If, while pressing the Chassis Legs Open button, the Sara 3000 displays 'overload' on the LCD, beeps continuously, and the chassis legs do not open, it means that an obstruction is blocking the chassis legs. Remove the obstruction, and thoroughly check for damage before continuing. If you're not sure, use the System Failure Lowering Override to return the resident to a safe seated position. Ensure a qualified technician inspects and approves the Sara 3000 before using it again.
B
Bruce PatelAug 26, 2025
What to do if Arjohuntleigh Medical Equipment Sara 3000 is not raising or lowering?
- B
  Brittany VelezAug 26, 2025
  If the Arjohuntleigh Sara 3000 is not raising or lowering, or the chassis legs cannot be opened or closed, the hand control might be damaged. Try using the Dual Up/Down Control on the mast of the Sara 3000. If the equipment works correctly with these controls but not with the hand control, replace the hand control.
E
evansrobertAug 28, 2025
Why is Arjohuntleigh Medical Equipment Sara 3000 raising and lowering slowly?
- D
  derricklindseyAug 28, 2025
  If the Arjohuntleigh Sara 3000 is raising and lowering more slowly than normal, it could be due to a low battery power level. Check the LCD battery segments and the Hour/Cycle meter on the mast, just above the battery, to see the power level. If you're unsure, replace the battery with a fully charged one and compare the performance. If the battery is low, charge it and use a fully charged battery to continue using the Sara 3000.
A
ashleyfosterAug 30, 2025
What does 'OverHeat' on Arjohuntleigh Medical Equipment Sara 3000 mean?
- N
  nguyenbeckyAug 30, 2025
  If 'OverHeat' is displayed on the LCD of the Arjohuntleigh Sara 3000 and the buzzer beeps twice every 15 seconds, the actuator duty cycle has been exceeded (2 minutes). Finish the current operation and wait 18 minutes to prevent actuator damage.
E
Elijah HughesSep 1, 2025
How to turn on Arjohuntleigh Medical Equipment Sara 3000?
- A
  Andre PenaSep 1, 2025
  If the Arjohuntleigh Sara 3000 is not functioning, ensure the red Power Off button is not engaged. Press the green Power On/reset button to start the device.
A
Amanda ReyesSep 3, 2025
What to do if Arjohuntleigh Medical Equipment Sara 3000 does not function correctly?
- T
  Tiffany ShawSep 4, 2025
  If the Arjohuntleigh Sara 3000 does not function correctly when using either the hand control or the Dual Up/Down switches, there may be an electronics PCB fault or a malfunctioning actuator on the resident support arms or chassis. Contact your ArjoHuntleigh dealer or an approved ArjoHuntleigh service engineer for assistance.
N
nicoleriveraSep 5, 2025
How to correctly position a resident in an Arjohuntleigh Sling?
- L
  Lisa CollinsSep 5, 2025
  To ensure the resident is correctly positioned in the Arjohuntleigh Sling, consider the following: * Verify the clips/loops and leg flaps are attached at the correct length. * Ensure straps are not twisted and the resident is centered inside the sling. * Make sure there are no creases on the leg flaps. * Confirm the clip is not caught between the lug on the lift and the clip attachment. * Use the sling only as described in the 'Allowed Combinations' section. * Use the clips' loops and lift cords to adjust the resident's position and adjust/tighten the support belt as needed. * Ensure the head and shoulder sections of the sling are buckled together. * Make sure the resident is holding onto the lift handles.
S
Shawn HamptonSep 8, 2025
What to do if the resident feels discomfort in the leg area of the Arjohuntleigh Sling?
- R
  Ronald ScottSep 8, 2025
  If a resident experiences discomfort in the leg area while seated in the Arjohuntleigh Sling, take these steps: * Check that the clips/loops and leg flaps are attached at the correct length and that the straps aren't twisted. * Ensure the resident is positioned inside and centered in the sling, with no creases on the leg flaps. * Verify the clip isn't caught between the lug on the lift and the clip attachment. * Use the sling according to the 'Allowed Combinations' section. * Adjust the resident's position using the clips' loops and lift cords. * Adjust or tighten the support belt for a more comfortable fit. * Also, confirm that the head and shoulder sections are buckled together and that the resident is holding onto the lift handles.

Summary

Safety Instructions

Intended use

Defines the purpose and scope of the Sara 3000 lift.

General Safety Instructions

General safety precautions and warnings for operating the Sara 3000.

Safety Precautions and Definitions

Symbols and Definitions used in this document

Explains symbols and defines key terms used in the manual.

Read instructions before use

Emphasizes the importance of reading and understanding instructions.

Definitions

Defines terms like 'Warning' and 'Caution'.

Foreword

Parts designation; legend

Product Description and Handling Instructions

Installation Instructions

Details the initial setup and charging of the Sara 3000.

Features and functions

Explains the various features and operational controls of the Sara 3000.

Battery Charging

Place the battery pack on charge

Steps for connecting the battery to the charger.

How to charge the battery

Details on the charging process and expected results.

Disinfection, Cleaning and Maintenance

General Equipment Cleaning and Care

Procedures for routine cleaning and care of the equipment.

Daily checks

Essential daily inspections to ensure safe operation.

Servicing Advice

Recommendations for professional servicing and maintenance.

Product Information and Maintenance

Parts, Documentation, and Environmental Advice

Covers parts lists, sling care, and equipment disposal.

Maintenance and Testing Procedures

Covers operational checks, periodic testing, and equipment condition.

Care and Preventive Maintenance

Preventive Maintenance Schedule

A checklist for caregiver obligations and scheduled maintenance tasks.

Labels

Technical Specification

Component Weights

Lists the weights of the Sara 3000 and its components.

Electrical

Details the electrical components, voltage, and fuses used in the Sara 3000.

Technical Specification Details

Actuator and Operation Details

Specifies actuator types, duty cycles, and operating mode.

Environmental Conditions

Outlines humidity, temperature ranges for storage and use.

Maximum sound power level

States the maximum sound power level of the Sara 3000.

Technical Specification Dimensions

Sara 3000 Dimensions

Lists various height, width, length, and clearance measurements.

Troubleshooting

Problem Description and Resolution

Details common issues, causes, and troubleshooting steps.

Electromagnetic Compatibility (EMC)

Guidance and manufacturers declaration

Provides declarations regarding emissions and immunity compliance.

Recommended separation distances

Advises on distances from RF equipment to prevent interference.

Arjohuntleigh Sara 3000 Specifications

General

Battery Voltage	24 V
Power Source	Battery
External Width (legs closed)	60 cm
Internal Width (legs open)	60 cm
Internal Width (legs closed)	30 cm
Battery Type	Lead-acid
Wheel Configuration	Four wheels
Features	Ergonomic design
