Brema 5 - Brema LF
English
05060047 03 24/02/2010 37

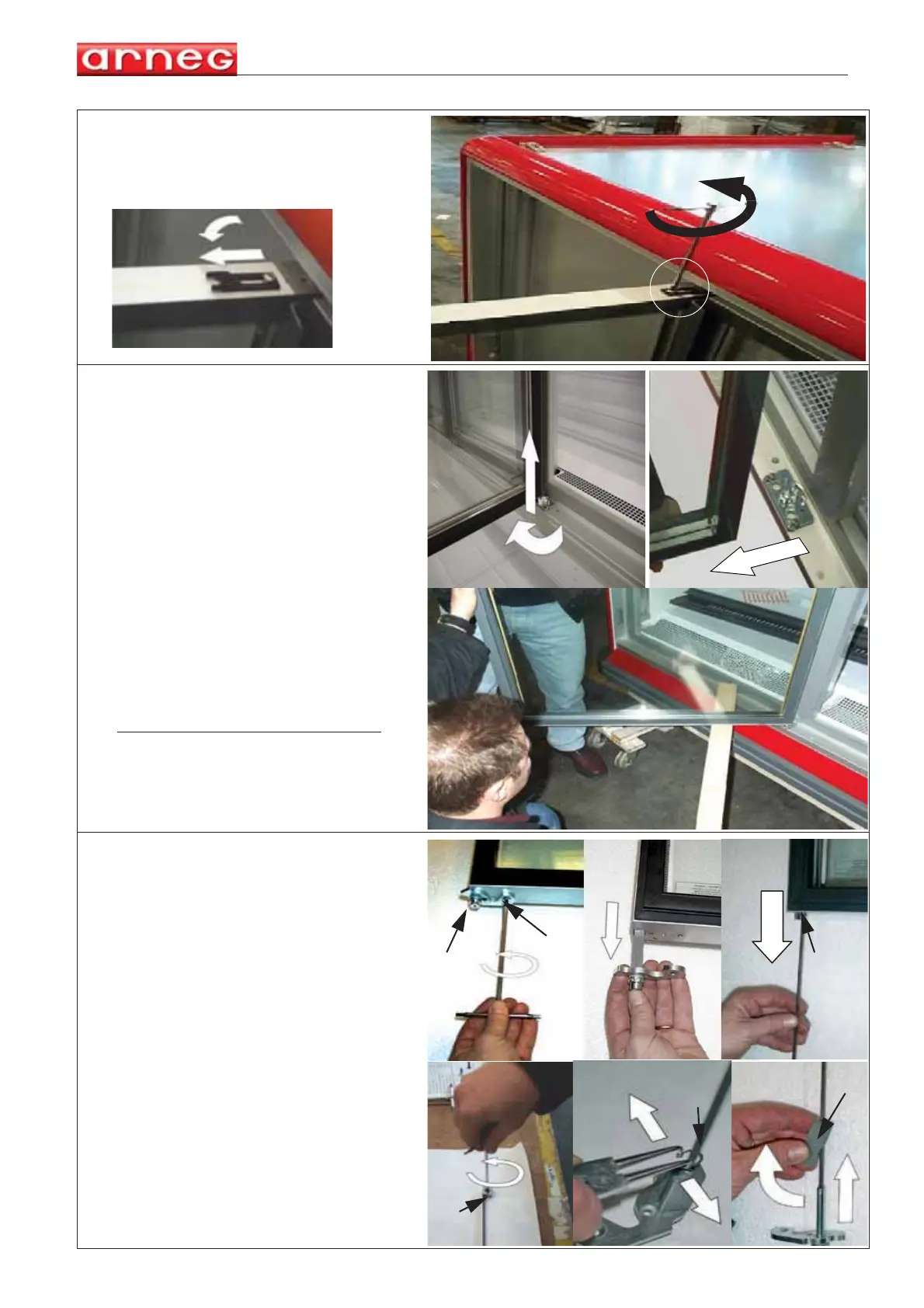

5 Loosen the screws that fix the anti-fraying
fork on the upper part of the door. Let the
fork slide and rotate it as indicated in fig-
ure A:
6 In order to remove the door, it must be
lifted and simultaneously rotated as indi-
cated in the drawing so that it is first
released from its housing on the bottom
part.
Given the weight of the door the collabo-
ration of two workers is recommendedl.
N.B.If difficulties are encountered while
removing the door, use a lever in
wood or other similar material so not
to damage the door itself. Delicately
lift the door a few millimetres so as to
withdraw the pin of the lower hinge.
Do not exert unneccessary force
7 Remove the door and place it on a flat
horizontal surface so as to carry out the
inversion operation in the best way possi-
ble..
Fully remove the entire lower hinge unit.
A) Remove the screws (1) and (2) using
the respective spanners
B) Remove the lower hinge uni
C) Withdraw everything, including the gal-
vanised block
D) Dismantle the galvanised block unit (3)
E) Remove the elastic ring that holds the
sleeve in place (4) using the appropriate
pliers
F) Remove the lower pin-guide sleeve (5)
A
