Brema5 - Brema LF
English
36 05060047 03 24/02/2010
1. Assembly indications for inverting the doors
ATTENZIONE! Cut off power supply to the cabinet before proceeding with all operations
Brema 5 - Brema LF refrigerated wall cabinet is normally supplied in the version with right-hand
opening doors. If required, the direction of door opening can be inverted from right to left ..
Note:Is not possible to invert one or more doors individually.
30 minutes are sufficent for this operation and the collaboration of 2 workers is recommended.
Equipment required:
Hammer - Spatula - Drill - Drill bit Dmax= 9mm - Pliers - Pliers for elastic rings - Hexagonal
spanners 2/3/4 - Cross-head Screwdriver - Metal pipe / spacer .

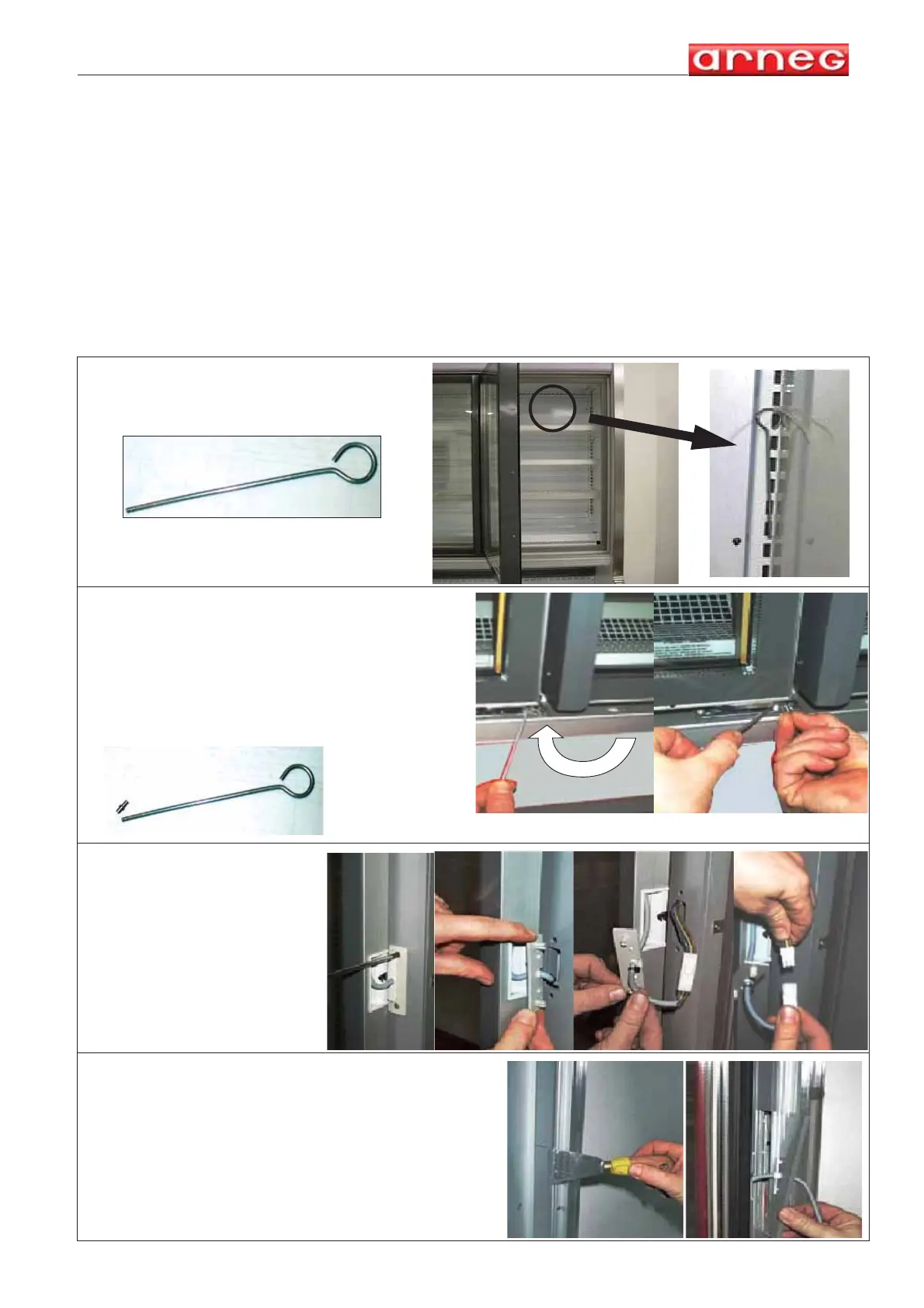

In order to invert the doors, follow the indications below
:
1 Detach the spring-loading spanner from
its housing
2 A) Insert the spring-loading spanner into one of
the holes ofthe lower pin.
Insert the spring-loading spanner into one of the
holes ofthe lower pin.
B) Keeping the spanner still in the position
indicated, remove the spring-loading pin and
place both the pin and the spanner in a safe
place.
1 - Loading pin 2 - Spring-loading spanner
3 A) Remove the screws that
fix the wiring protection
plate in place.
B) Pull out the cable.
C) Pull out the connector
D) Open the connector
4
(referred to the right and left-hand risers
).
This phase applies both for dismantling the
right-hand door and for preparing the left-
hand rise
.
A)
Remove the side buffer profile using a
spatula
B) Pull out the cable and open the con-
nector
A
