RTD TROUBLESHOOTING
13.1 Check Boiler Sensor

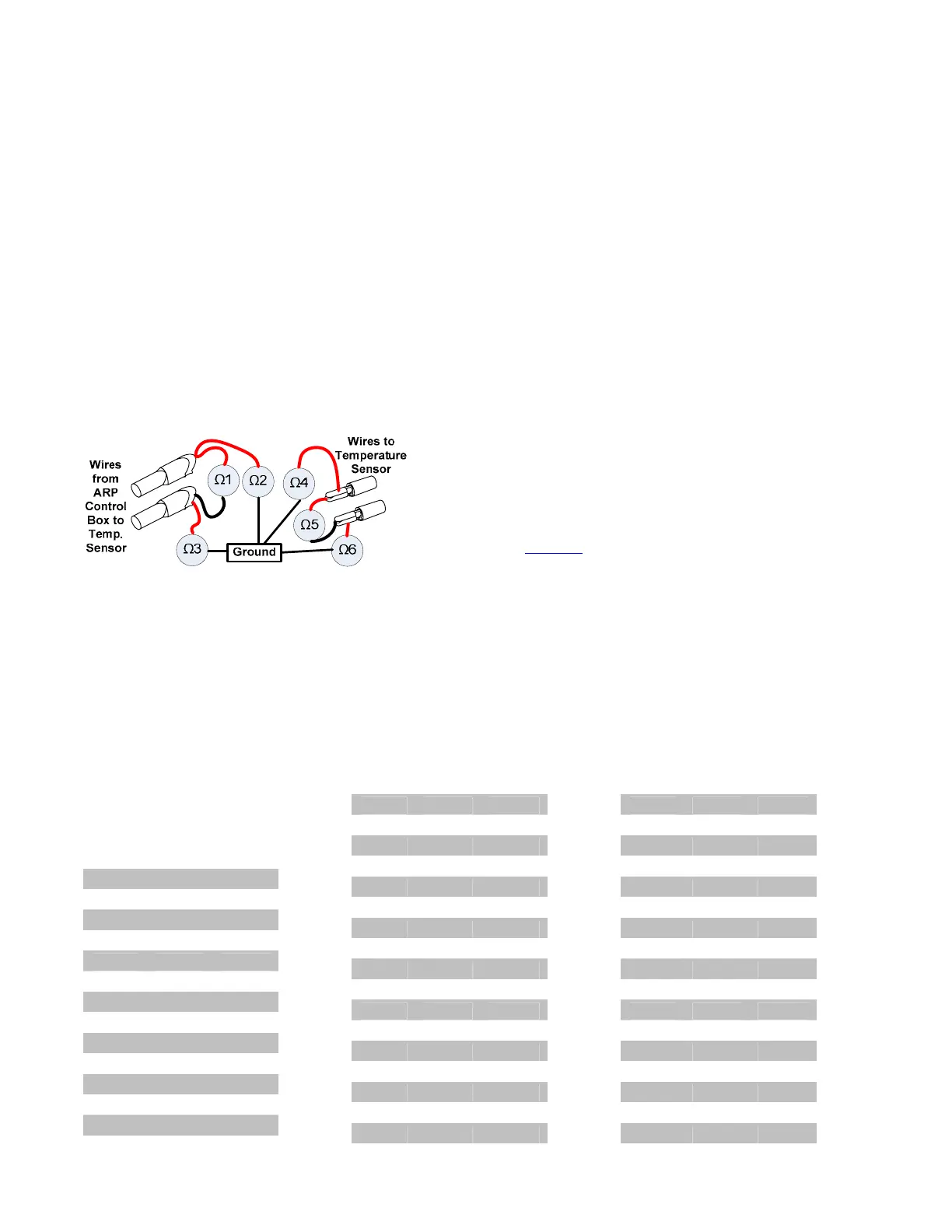

Start by turning off the ARP Control by
disconnecting the ARP red wire. Each of the Ω1,
Ω2, Ω3,…is a representation of using a multi-
meter to measure the resistance either between
the two wires or from the respective wire to the
ground. Please note that the color code of the
wire has no meaning because there is no polarity
for the temperature sensor. Thus, Ω2 or Ω3
maybe either the white or purple wire.
Ω1 ≈ 2.2M
Ω2 ≈ 2.2M or 1k
Ω3 ≈ 2.2M or 1k
Ω4 = OPEN or OL on typical multi-meter
Ω5 ≈ Use RTD Table to determine this value.
Ω6 = OPEN or OL on typical multi-meter.
See 2.9 SHt
for more RTD wiring info.
13.2 SHt Error
The most common causes of the SHt error is the
sensor wire rubbing on the sheet metal boiler
housing. Where the sensor wire exits the boiler
housing insulation can be used to keep the wire
from rubbing on the sheet metal housing.
RTD TABLES
Temp.
(ºC)
Temp.
(ºF)
ARP
RTD
(Ω)
1 33.8 1003.9
2 35.6 1007.8
3 37.4 1011.7
4 39.2 1015.6
5 41.0 1019.5
6 42.8 1023.4
7 44.6 1027.3
8 46.4 1031.2
9 48.2 1035.1
10 50.0 1039.0
11 51.8 1042.9
12 53.6 1046.8
13 55.4 1050.7
14 57.2 1054.6
15 59.0 1058.5
16 60.8 1062.4
17 62.6 1066.3
18 64.4 1070.2
19 66.2 1074.0
20 68.0 1077.9
21 69.8 1081.8
22 71.6 1085.7
23 73.4 1089.6
24 75.2 1093.5
25 77.0 1097.3
26 78.8 1101.2
27 80.6 1105.1
28 82.4 1109.0
29 84.2 1112.9
30 86.0 1116.7
31 87.8 1120.6
32 89.6 1124.5
33 91.4 1128.3
34 93.2 1132.2
35 95.0 1136.1
36 96.8 1140.0
37 98.6 1143.8
38 100.4 1147.7
39 102.2 1151.5
40 104.0 1155.4
41 105.8 1159.3
42 107.6 1163.1
43 109.4 1167.0
44 111.2 1170.8
45 113.0 1174.7
46 114.8 1178.6
47 116.6 1182.4
48 118.4 1186.3
49 120.2 1190.1
50 122.0 1194.0
51 123.8 1197.8
